Summary of Contents for Dynaudio Excite X14A

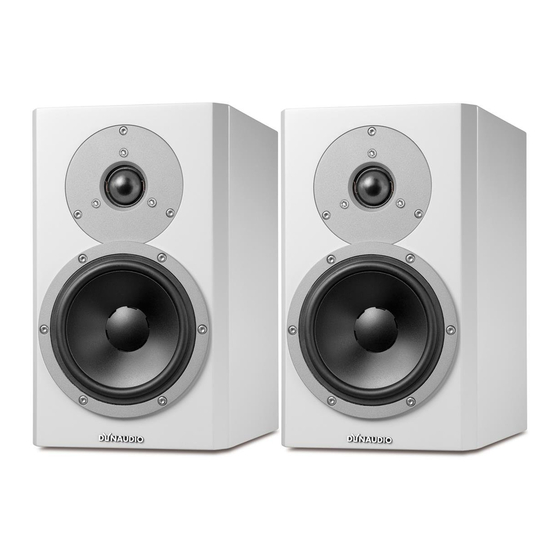

- Page 1 Owners Manual Excite X14A...
- Page 3 Introduction Introduction your outlet, consult an electrician for re- placement of the obsolete outlet. Important safety instructions 10. Protect the power cord from being walked on or pinched particularly at The lightning flash with an arrow- head symbol within an equilateral plugs, convenience receptacles, and triangle, is intended to alert the user the point where they exit from the ap-...
- Page 4 Introduction EMC/EMI – Be advised that different operating volt- ages require the use of different types This equipment has been tested and found of line cord and attachment plugs. to comply with the limits for a Class B Dig- ital device, pursuant to part 15 of the FCC –...
- Page 5 Introduction Owner’s manual...
- Page 6 The transducers of your Dynaudio Excite The transducers of your Dynaudio Excite Dynaudio Excite X14A active monitor Dynaudio Excite X14A. With the right care X14A will achieve better sound quality X14A will achieve better sound quality after and attention it will provide many years of breaking in.
-
Page 7: Operation
Operation Operation Overview – rear panel Correct setup and connections is essential to achieve optimal performance from your monitors. Please follow the instructions on the following pages. 1. Power On/Off switch 7. Filter switches 2. AC power Input – High Pass – LF – Low filter setting 3. - Page 8 Operation Setting up 7. Filter switches 1/2. Power on/off switch / AC power in LF: This switch controls the bass gain level Before switching on, make sure Mains using shelf-type EQ. The level can be set to Voltage matches your areas Mains Voltage +2 dB, 0 dB or -2 dB.
- Page 9 Operation Protection to assist your speakers. When used with a subwoofer it is recommended to use The Excite X14A has several built in either 60 Hz or 80 Hz filter, thus allowing a protection systems to reduce the risk of higher undistorted sound pressure level. hazard or damage due to overloading.
- Page 10 If service is required please switching speakers. contact service via: www.dynaudio.com Care Components of the highest quality are used in your Excite X14A. This assures years trouble-free operation. Following Dynaudio International GmbH precautions should still be made though.
-
Page 11: Technical Specifications
Technical specifications Technical specifications Input level for 85 dB SPL @ 1 m, @ 0 dB setting, 80 mVrms unbalanced Max input level (@setting) 4,8 Vrms (-10 dB) 1,5 Vrms (0 dB) 1 Vrms (+4 dB) Power consumption Standby: 0.3 W Idle: 5.8 W Max: 94 W Amplifier power... - Page 12 © Dynaudio A/S, 8660 Skanderborg, Denmark, Owners Manual Excite X14A All text and image copyrights reserved. Subject to change without notice. www.dynaudio.com...
