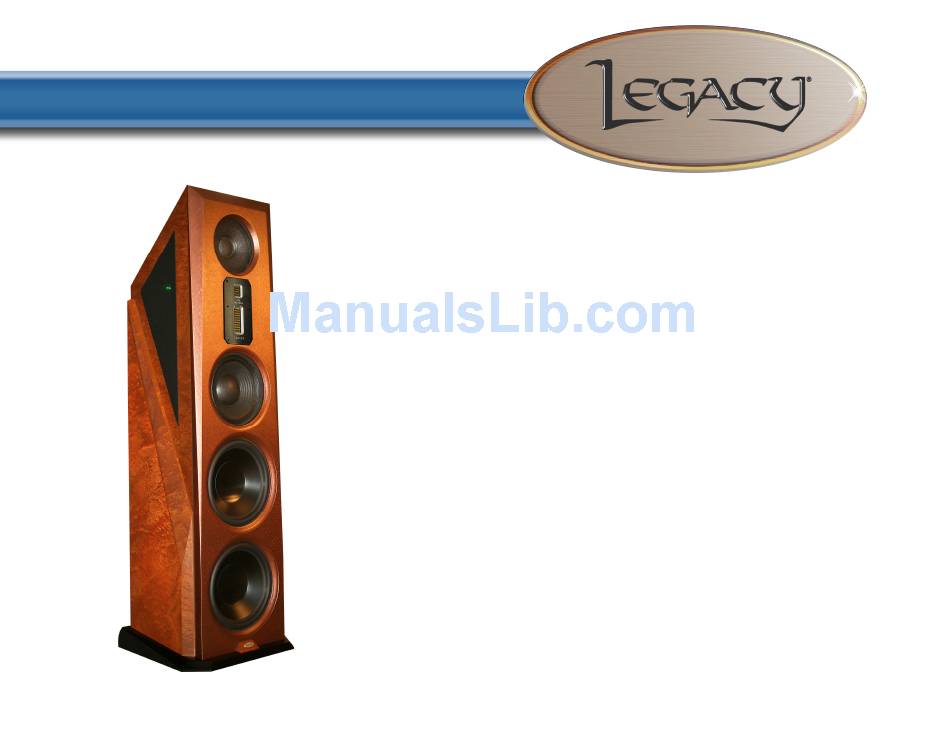

  • Page 1 Owners Manual For The AERIS Loudspeaker System...
  • Page 2 THANK YOU FOR CHOOSING LEGACY AUDIO Aeris is a full range loudspeaker system utilizing the present state of the art in driver, crossover, amplifier and acoustic radiation control technologies. The system is designed, assembled and tested in Springfield, Illinois by a dedicated group of engineers, craftsmen, and music lovers.

  • Page 3: Table Of Contents

    Table of Contents Page Registration Owners Record The Cabinetry / Our Commitment Warranty Setup Speaker Installation Hooking Up Cables Amplification 10-12 Speaker Connections 13-14 Wavelaunch Processor 15-23 Technology Continuing the Pursuit of Perfection 24-25 Specifications...

  • Page 4: Owners Record

    Refer to this when calling your dealer regarding this product. Model: AERIS Serial No: _________________________ Date of purchase: ___________________ Thank you for selecting a Legacy Loudspeaker System. These hand- crafted instruments will provide you with many years of listening en- joyment.

  • Page 5: The Cabinetry / Our Commitment

    Our Commitment A great deal of forethought, love and satisfaction is instilled in each piece of Legacy workmanship. We take pride in getting to know many of our customers on a first name basis. Your purchase of this product is backed by the renowned “Legacy...

  • Page 6: Warranty

    Warranty Legacy Audio supports its customers and products with pride. We cheerfully warrant our loud- speaker products we manufacture from defects in materials and workmanship for a period of seven (7) years. Electronic components such as internal amplifiers and digital processors are covered for three (3)years.

  • Page 7: Speaker Installation

    The amount of recommended "toe-in" is a function of the lis- tening angle. As the overall listening angle increases from 40 degrees, the amount of toe-in should increase. Your Legacy speaker is optimized for a flat response in the far field. Best results are obtained vertically with the lis- tener's ear at tweeter level with the loudspeakers gently toed in toward the listener.

  • Page 8: Hooking Up Cables

    Hooking Up Cables The ideal conductor would have negligible resistance, inductance and capacitance. The table below shows how a few actual speaker cables measure up. Cable s/ft pF/ft µH/ft 12 ga. 0.0033 0.21 14 ga. 0.0048 0.13 16 ga. 0.0079 0.18 18 ga.

  • Page 9: Hooking Up Cables

    Hooking Up Cables What about phase shift due to frequency dependent travel times down the speaker cable? Measurements show that 100 Hz waves will be delayed about 20 billionths of a second behind 10 kHz waves when traveling to the end of a 10 foot speaker cable. Since the cilia of the ear requires 25,000 times longer than this just to transmit phase information, phase shifting is obviously not the primary concern when considering speaker cables.

  • Page 10: Amplification

    For this reason, extensive measures have been taken to ensure that each Legacy speaker system represents a smooth, non-reactive load to virtually any amplifier. Often there is much confusion regarding amplification and loudness levels. It should be under- stood that the role of the amplifier goes beyond that of driving loudspeakers to a given sound pressure level.
  • Page 11 Some audiophiles feel that 200 watts per channel is the bare minimum to avoid audible clipping distortion when reproducing music at “live” playback levels. Your Legacy speakers are designed to take advan- tage of “high-powered” amplifiers, so don’t be afraid to put them through their paces.

  • Page 12: Amplification

    Amplification When an amplifier is unable to fulfill your loudspeakers demands, a damaging harmonic spike may be leaked to the high frequency drivers. Another important point regarding loudness is that the dB scale is a logarithmic one. This means that a 150 Watt amplifier will potentially sound only twice as loud as a 15 Watt amplifier.

  • Page 13: Speaker Connections

    Power up the processor next via the rear panel switch, and finally rock the I/O switch on the rear panel of the Aeris to the “I” position to turn on the internal amplifiers. Note that these amplifiers are green compliant, idling at a few watts.

  • Page 14: Speaker Connections

    (use Y adapter) Processor Output 1 Left Aeris rear panel Bass Input (XLR) Processor Output 2 Left channel input to amplifier driving Aeris upper range Processor Output 5 Right Aeris rear panel Bass Input (XLR) Processor Output 6 Right channel input to amplifier driving Aeris upper range *The redundant feed of left and right input signals to the processor allows a low frequency correction algorithm to be ap- plied.

  • Page 15: Wavelaunch Processor

    Wave Launch Processor The high definition Digital Wavelaunch Processor hosts a LEGACY custom algorithm which automatically loads when the proc- essor is powered on. Factory settings are ‘plug and play’, and do not require a computer to utilize. Connections between the preamp, power amplifier, and speakers should be as shown on previous page.
  • Page 16 Wave Launch Processor Downloading and Installing the XConsole software Downloading From Included CD Your Wave Launch Processor will come with a CD or USB drive containing the XConsole software. Insert the CD and find the install file. Move/Save the install file to your computer.
  • Page 17 Wave Launch Processor The XP processor will allow you to make adjustments to your system from a laptop computer from your listener position. Connecting Your Computer with the XP-4080 Processor - Connecting will require a long USB Device cable. These can be found at most electronic or big box stores. It is the same cable that a USB printer would use.
  • Page 18 Wave Launch Processor - Go back to the XConsole software. At the top of the screen click “Setup” then “Port Connections” This bring up a new dialog box. Select the COM port number you obtained from the device manger and click “OK.” The software will warn you that you must restart the software for your changes to take effect.
  • Page 19 Wave Launch Processor Making Adjustments with Wavelaunch Processor After installing the included software, connect the processor to the computer via a USB cable. Launch the XConsole software. When asked if you want to connect to the device, click yes. In the Device List, click on the device that is connected. This will launch the program that is currently on the processor.
  • Page 20 Wave Launch Processor In the Device List, click on the device that is connected. This will launch the program that is currently on the processor. Adjustments to the processor can be made to “Input 1: Left” and “Input 2: Right”. Clicking on “In 1: Left”...
  • Page 21 Wave Launch Processor Making a boost with the parametric EQ In this example, we have selected Parametric EQ 2 (PEQ2) by clicking in its box, which will turn red to indicate your selection. Once highlighted, locate the blue boxes with up and down arrows, at the bottom of the interface. These arrows are used to in- crease or decrease the gain, frequency and Q of the selected parametric EQ.
  • Page 22 Wave Launch Processor Making a cut with the graphic EQ In this example, we have selected Graphic EQ 8 by clicking in its box which will turn red to indicate your selection. Once high- lighted, locate the blue boxes with up and down arrows, at the bottom of the interface. These arrows are used to increase or de- crease the gain of the selected graphic EQ.
  • Page 23 Wave Launch Processor Adjusting using the EQ plot Adjustments made to both the parametric and graphic EQ are reflected in the graph occupying the upper portion of the screen. You can select them by clicking on their number, and dragging up to boost, and down to cut. Dragging to the left decreases the frequency, while dragging to the right increases the frequency.

  • Page 24: Continuing The Pursuit Of Perfection

    Continuing the Pursuit of Perfection (Legacy Air Motion Ribbons) LEGACY Audio has been benefiting from low mass ribbon and leaf drivers since 1984. I have a col- lection of ribbon tweeters from the world over and always loved the way good ribbons reproduced the swishing sound of brushes on a snare- and the simple honesty in the reproduction of strings without imparting an edgy ringing effect found in most tweeters.
  • Page 25 (Legacy Air Motion Ribbons) The recent Aeris loudspeaker development gave me the opportunity to tool a new AMT folded ribbon tweeter to integrate with the smoothest high efficiency 8” midrange built to date. I have yet to find a driver to challenge it. This silky 8” mid has a range of 7 octaves with nary a wrinkle in the response, yet a sensitivity of 98 dB.

  • Page 26: Specifications

    Specifications System Type: 6 drivers, 4.5 way Tweeter: Dual Air Motion Tweeter System— 4” AMT Tweeter, 1” AMT Super Tweeter Midrange: 8" Titanium encrusted, Accordion Edge Midwoofer: 10” Accordion Edge Woofer: 2 x 12" spun aluminum diaphragm, rubber surround, total enclosed neo motor, long throw suspension, with cast frame 1 8 Hz –...
  • Page 27 Legacy Audio Distributor in Low Voltage Directive 2006/95/EC your country. A listing of Legacy EMC Directive 2004/108/EC Audio Distributors can be found on the Legacy Audio website www.legacyaudio.com or by contacting Legacy Audio at: 3023 E.
  • Page 28 Notes:...
  • Page 29 ©201 5 Legacy Audio 3023 E Sangamon Ave. Springfield, IL 62702 Phone: 800-283-4644 Fax: 217-544-1483...
