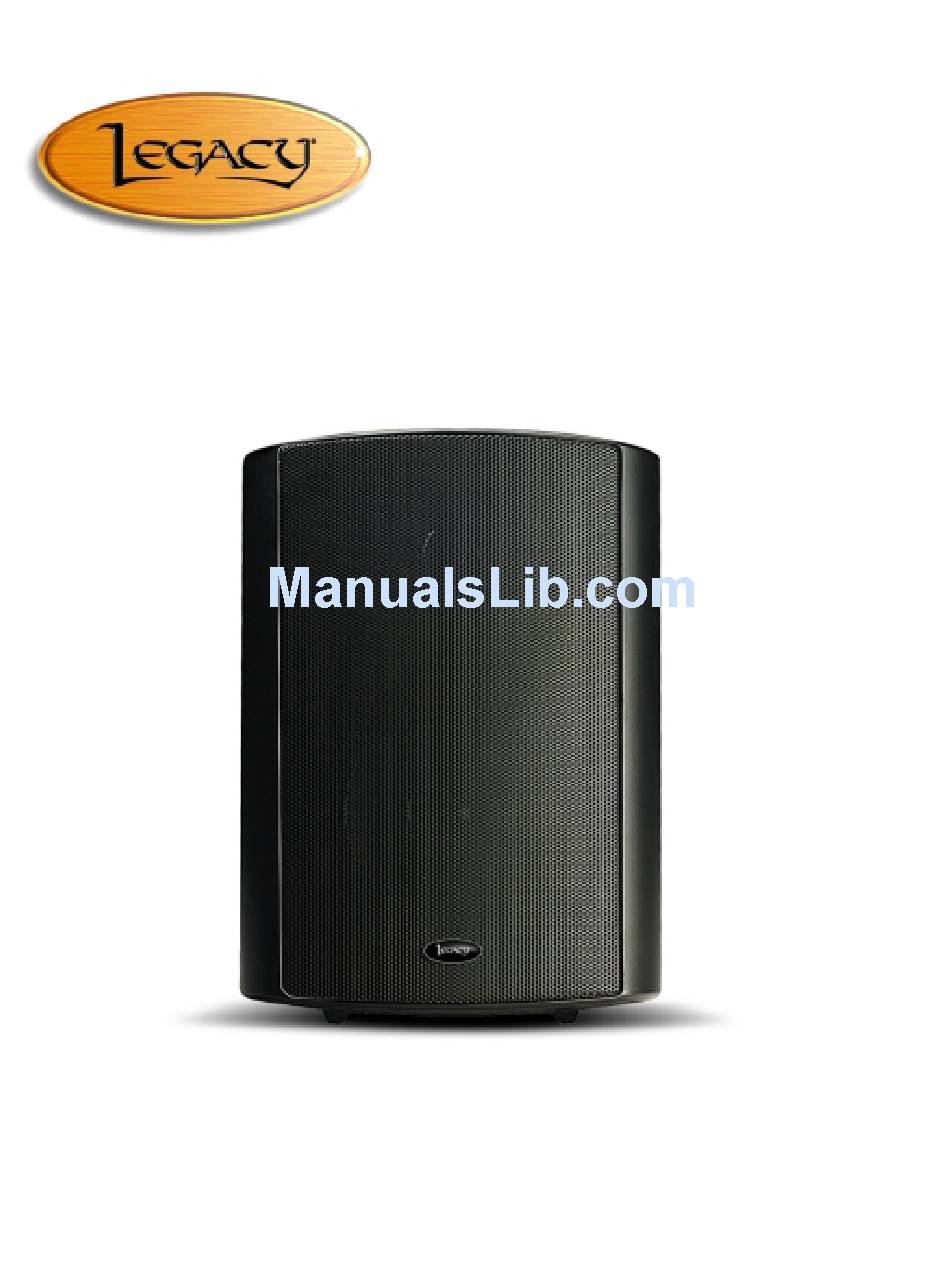

- Page 1 Owner’s Manual For The Escort On-Wall Loudspeakers...
-
Page 2: Table Of Contents
_____________________________________ CONTENTS INTRODUCTION…………………………………..3 WARRANTY………………………………………..4 DESCRIPTION……………………………………..5 CONNECTIONS……………………………………6 INSTALLATION..…………….……………………7 SPECIFICATIONS…………………………………8... -
Page 3: Introduction
_____________________________________ INTRODUCTION Congratulations on your purchase of your Legacy Audio Escort On-Wall Loudspeaker system and thank you for choosing Legacy. Please take a few minutes to read these instructions thoroughly to make the installation easier and insure optimum performance. -
Page 4: Warranty
_____________________________________ WARRANTY LIMITED THREE-YEAR WARRANTY Legacy Audio extends to the original owner coverage of defects in materials and workmanship for a period of 90 Days from date of purchase. Your warranty may be extended to three years upon the completed warranty card being received at our facility. -
Page 5: Description
_____________________________________ DESCRIPTION Escort is simply the most versatile speaker you’ll find. At home indoors and out, Escort may be wall-mounted, pole-mounted, soffit-mounted or even concealed behind the leaves of potted plants. Take Escort poolside or place on a bookshelf. Since Escort’s 5.25” woofer and dome tweeter are... -
Page 6: Connections
_____________________________________ CONNECTIONS Before you purchase loudspeaker wire, check local building codes to make sure that the wire is rated to comply with applicable local safety codes such as UL or CL-2. Use only stranded wire no thinner than AWG 16. For runs longer than 100 feet, we recommend minimum of AWG 14. -
Page 7: Installation
Installing the Escort On-Wall Loudspeakers 1. Find a stud in your wall or a solid mounting surface where you would like the escort to be mounted. It is best to mount the brackets to a stud in your wall, otherwise the weight and vibrations from the speaker could cause it to become unattached from the wall. -
Page 8: Specifications
____________________________________ SPECIFICATIONS System Type: 2 driver, 2 way Tweeter: dome Midwoofer: 5.25 “ Low Frequency Alignment: Sealed Enclosure Frequency Response: 80Hz – 22khz Impedance: 6 Ohms Sensitivity: 90 dB Recommended Amplification: 15-150 Watts Crossover Frequency: Dimensions (H x W x D): 9.5”x 7.25”x 6.5”...
