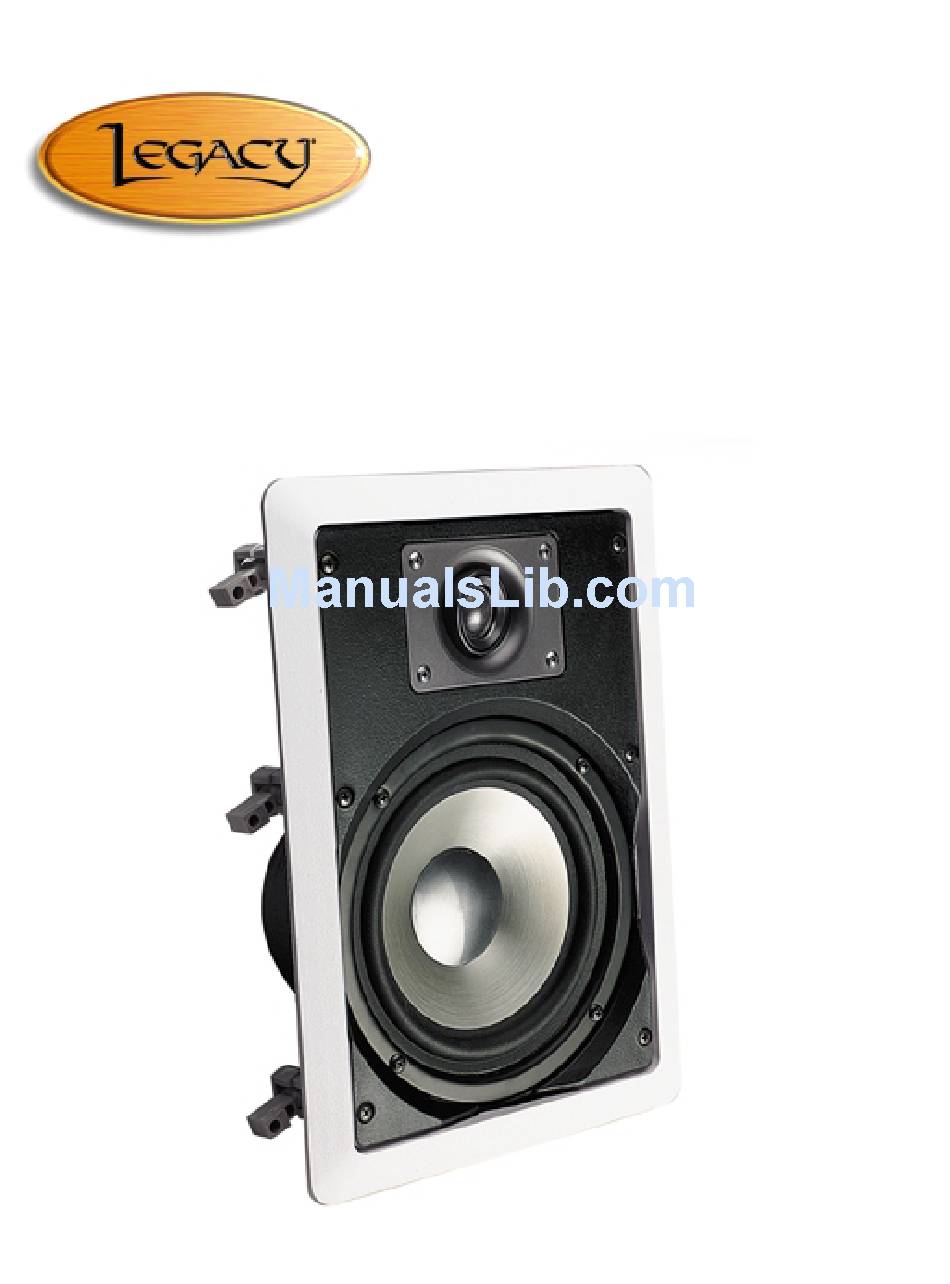

- Page 1 Owner’s Manual For The Gallery In-Wall Loudspeakers...
-
Page 2: Table Of Contents
____________________________________ CONTENTS INTRODUCTION…………………………………..3 WARRANTY………………………………………..4 DESCRIPTION……………………………………..5 CONNECTIONS……………………………………6 INSTALLATION……………………………………7 SPECIFICATIONS…………………………………9... -
Page 3: Introduction
____________________________________ INTRODUCTION Congratulations on your purchase of your Legacy Audio Gallery In-Wall Loudspeaker system and thank you for choosing Legacy. Please take a few minutes to read these instructions thoroughly to make the installation easier and insure optimum performance. -
Page 4: Warranty
____________________________________ WARRANTY LIMITED THREE-YEAR WARRANTY Legacy Audio extends to the original owner coverage of defects in materials and workmanship for a period of 90 Days from date of purchase. Your warranty may be extended to three years upon the completed warranty card being received at our facility. -
Page 5: Description
___________________________________ DESCRIPTION Gallery In-Walls were developed using the finest loudspeaker and crossover components available. Countless hours of computer modeling were spent to insure accurate audio reproduction in a variety of installations where placement compromises must sometimes be made. The Gallery In-Wall Loudspeakers deliver the high-fidelity audio reproduction you have come to expect from high-end loudspeakers in a cabinet. -
Page 6: Connections
The Gallery In-Wall Loudspeakers mount into standard 4- inch (or greater) stud depth walls. Determine the final location of both left and right speakers before cutting any holes since changes to one speaker may affect the other either aesthetically or acoustically. -
Page 7: Installation
Note: The grilles should be painted separately rather than while mounted in the separate bezel. 9. Insert the Gallery bezel into the cutout to make sure it fits easily without forcing. 10. Evenly tighten the mounting screws on the bezel. The mounting “swing-arms”... - Page 8 ____________________________________ INSTALLATION (Cont) 11. We recommend that you add a “blanket” of sound absorbing material such as ceiling insulation behind the woofer to reduce sound transmission into the adjoining room. Additionally, any sound leakage from behind the molded frame can be blocked with foam weather- stripping directly behind the plastic speaker bezel.
-
Page 9: Specifications
_____________________________________ SPECIFICATIONS System Type: 2 driver, 2 way Tweeter: Silk dome Midwoofer: 6.5 Aluminum Low Frequency Alignment: Sealed Enclosure Frequency Response: 79Hz – 22khz Impedance: 6 Ohms Sensitivity: 91 dB Recommended Amplification: 15-150 Watts Crossover Frequency: 2.8k Dimensions (H x W x D): 12.25”x 8.75”x 3.25”...
