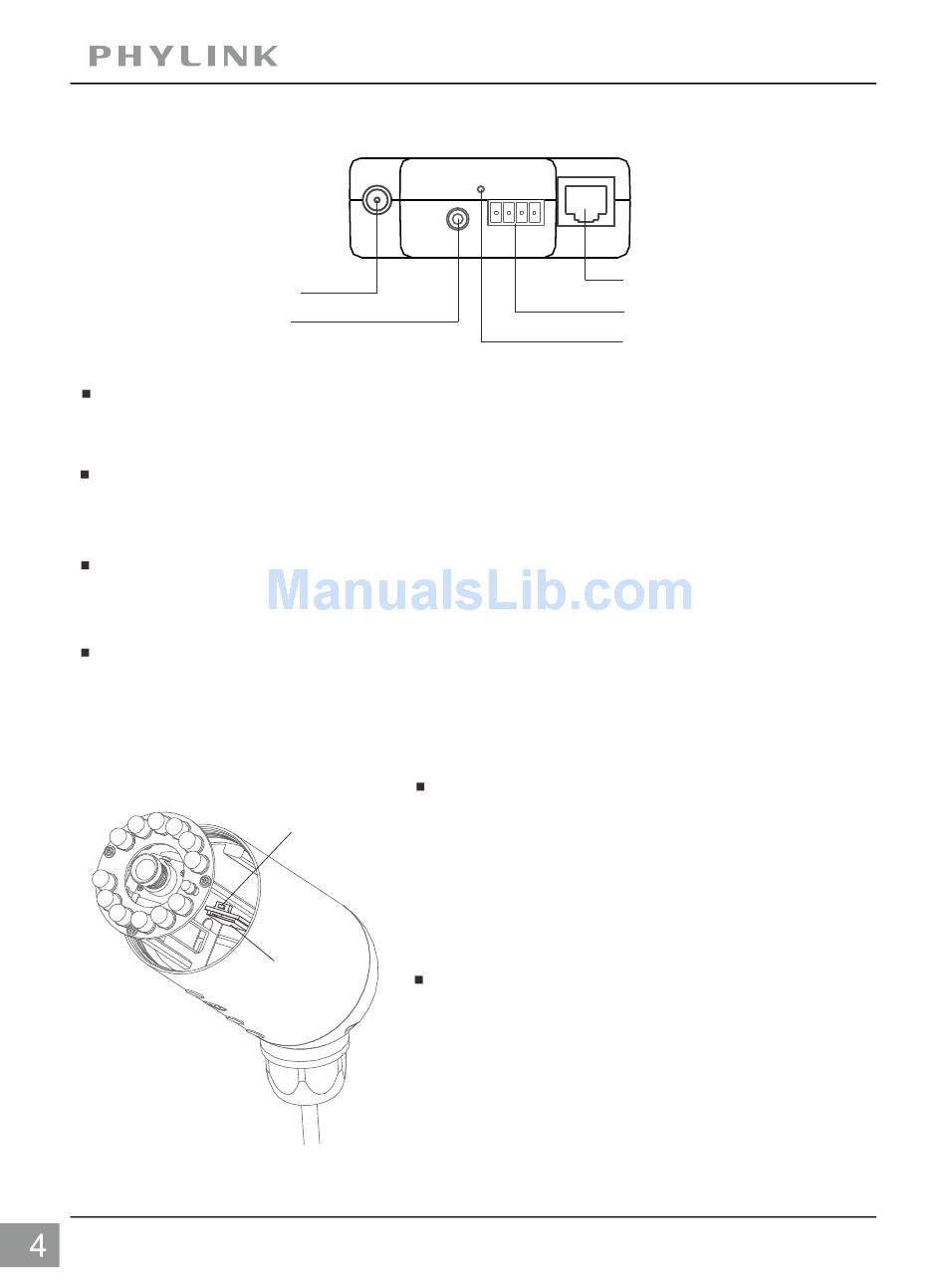

Power Connector; Reset Button - Phylink Bullet Pro PLC-336PW Quick Install Manual

Power Connector

Audio line out
Power Connector
Connects to the included DC 12V power adapter.
Audio line out
3.5mm Jack, connects to the amplified speaker.
Power indicator LED
After camera is powered on, the indicator LED shows yellow light.
General I/O Terminal
Used to connect external wired alarm devices like PIR sensor, gas detector,
siren and etc.

Reset Button

Micro SD
Card Slot
PHYLINK PLC-336PW Quick Install Guide
Extension Box Interface
Reset Button
Press this button for 5 seconds to reset the
camera. Note that all settings will be restored
to factory default.
Micro SD Card Slot
Local storage for storing recorded image and
video.
Ethernet RJ45 connector
General I/O Terminal
Power indicator LED
