CHARGING TIME

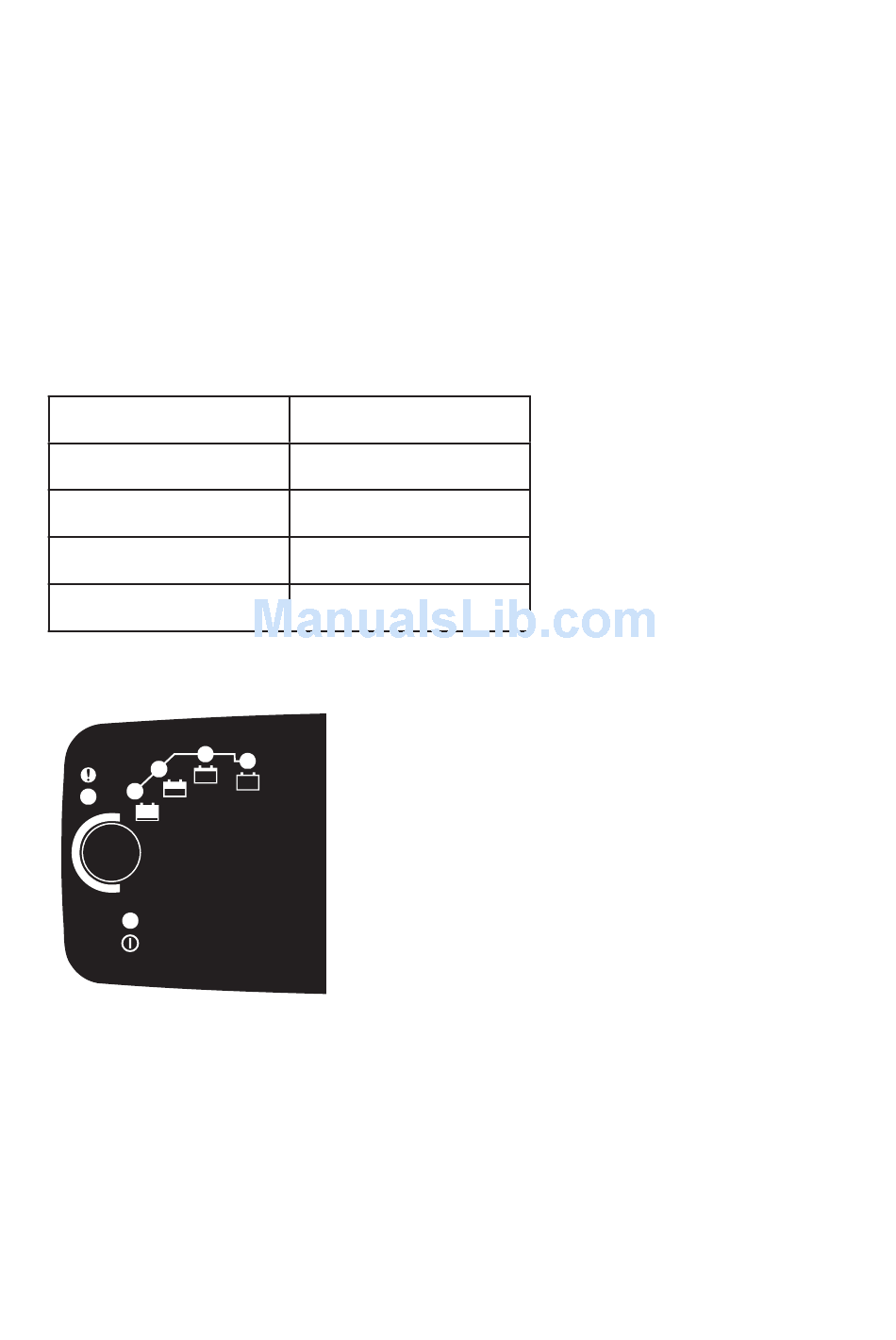

The table shows the length of time for bulk charging.
Battery size (Ah)
20
60
100
225

INDICATIONS

3
2
1
0
RESET
A

Error mode

Error mode
The charger enters error mode before start in the following situations:
• The battery is connected with poles reversed to the charger's terminals.
• The terminals on the charger are short-circuited.
Error mode before start is reset by removing the error situation.
The charger enters steady error mode in the following situations:
• The charger's analysis function has interrupted charging.
• The charger has been in start mode longer than maximum time.
Steady error mode is acknowledged/reset by pressing the "RESET" button.
Time to ~80% charge (h)
3
8
12
25
Indication Description
0
4
1
2
3
4
A
Error mode, the charger suspends the
charging / voltage maintenance. See
further description below.
Start mode.
Bulk charging, maximum voltage.
Absorption charging, voltage is limited.
Pulse maintenance charging
Power On
