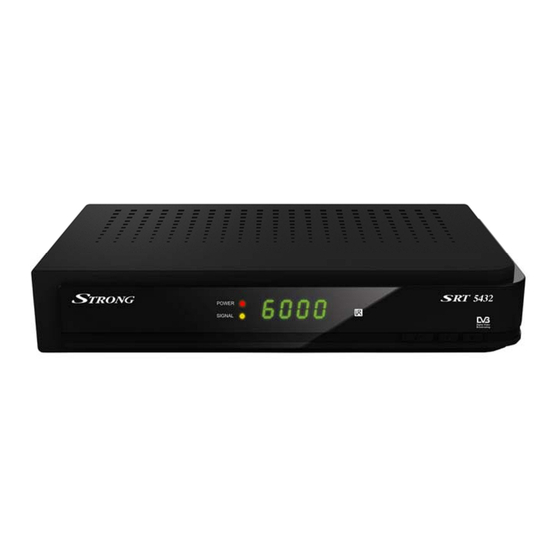

Strong SRT 5432 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

SRT 5432
User Manual
1

Advertisement

Table of Contents
loading

Related Manuals for Strong SRT 5432

Summary of Contents for Strong SRT 5432

  • Page 1 SRT 5432 User Manual...
  • Page 2 STRONG Australia accompanied by the original purchase receipt. After this 30 days period the unit must be returned to STRONG Australia for testing, and if deemed faulty, will be repaired or replaced at the discretion of STRONG Australia Pty Ltd.

  • Page 3: Table Of Contents

    Content  I nstruction ....................4 Reference ....................6 2. Product Overview .................. 7 2.1 Front Panel .................... 7 2.2 Rear Panel ....................8 2.3 Remote Control Unit (RCU) ..............8 3. Installation ....................9 3.1 Manual scan ..................10 3.2 Auto scan .....................

  • Page 4: Instruction

    8.1 Audio ....................18 8.2 EPG： ....................18 8.5 Subtitle....................19 8.6 Record....................19 8.7 Program Information ................19 9. Channel List ..................19 9.1 OK List....................19 9.2 Favorite List ..................20 10. USB Control ..................20 10.1 Recording and Timeshift ..............
  • Page 5  O verload: Do not overload a wall outlet, extension cord or adapter, neither use damaged power cord or touch it with wet hand as this may result in electric shock.  L iquid: The receiver shall not be exposed to dripping or splashing water, and that no objects filled with liquids, such as base, shall be placed on the apparatus.

  • Page 6: Reference

    USB 2.0 Interface Software update:  If new software becomes available for this model, it can be dow nloaded from our website (www.strong.com.au) and then placed onto a USB. Plug in the USB into the USB port on the unit and then go to:...

  • Page 7: Product Overview

    Product Overview  2.1 Front Panel 1. USB2.0：One USB 2.0 Host Port. 2. Power /Signal light：Power /signal indicator. Display：It displays channel information. In standby mode it displays local time. 4. Power button：Switch between operation and standby modes. 5. ▲：Change channel in viewing mode and move the cursor up in menu mode.

  • Page 8: Rear Panel

    2.2 Rear Panel 1）ANT IN：Connect the antenna cable. 2）ANT OUT：Loop out to pass signal through 3）COAXIAL：Digital Audio output (Optical). 4）DV-OUT ：Connect to the TV using an HDMI cable (not supplied) 5）AUDIO（R/L）/ VIDEO：Connect to the TV using RCA cabling 6) DC-5V：Connect to the power using power adapter. Note: For best results, use HDMI cable and RG6 Quad Shielded antenna cabling 2.3 Remote Control Unit (RCU)

  • Page 9: Installation

    SUB：Display the subtitle language list Recall：Show the previous viewed channels list or switch to previously viewed channels ▲╱▼: Change channels 13. OK: Confirm the selected operation or display the channel list while watching a programme. 14. ◀╱▶:Change volume . 15. MENU: Activate main menu or exit to live channel. 16.

  • Page 10: Manual Scan

    3.1 Manual scan Manual scan function would only add newly found services to STB database, without any database clearing action. User needs to know the target scan frequency and bandwidth in advance. (1) Press <OK> to enter “Manual Scan” menu. (2) Press <Up/Down>...

  • Page 11: Auto Scan

    3.2 Auto scan Auto scan function would empty all sevices in STB database at first. Then scan the frequencies one by one, which are stored in the default frequency table corresponding to current “Country Setting”. (1) Press <OK>.will appear a choice to network search yes or no. (2) Press <OK>...

  • Page 12: Tv/Radio Favourites

    Edit Channels enables you to move, delete, rename, lock/unlock,the channels in the channel list conveniently, you can press ◀/▶button to move, delete, rename, lock/unlock ,press ▲/▼ button to select channels. : Radio Channels operation similar to the TV Channels. Note: If the highlighted channel is locked, press the OK button to switch to Unlock.

  • Page 13: Settings

    2. Menu->EDIT CHANNEL -> User Channel List->Load User Data 5. Settings  5.1 System Settings Menu->SETTINGS->System Settings Tip: VOL+/VOL- You can set all the settings here by pressing button 1. Menu Language: Set the menu language. 2. Audio1: Set the preferred audio language. 3.

  • Page 14: Osd Setup

    14, Front Panel Light: Changing the value of this option allows you to adjust the brightness of the front display panel. 5.2 OSD Setup 1. Menu Transparency: Set the transparency of all menus. 2. Display Mode: Select the output resolution between 1080p, 1080i, 720p, 576i or 576p，480i or 480p.

  • Page 15: Clock And Timer Recording

      6 Clock/Timer Settings  Menu-> SETTINGS ->Times 6.1 Time Settings Menu-> SETTINGS ->Times->Time Settings Time Settings will set the time mode, time zone and summer time. 6.2 Event Timer Event Timer You can set up to 8 timer events. It will record or play the program automatically according to the timer event list that you set.

  • Page 16: Expansion

    6.4 Standby Time If set YES, the receiver will go to standby mode after the timer, if set NO it won’t be standby. 7. Expansion  7.1 Games Menu->EXPANSION-> Games Games In this menu there is a selection of games that you can play. 7.2 USB Menu->EXPANSION->...
  • Page 17 result of your operation. Record Mode：Set the Record Mode Channel or Transponder. Record Type：Set the Record format to TS or PS. Record Time：Set the Record Default Time off, 30, 60, 90, 120 minute or input number directly. Auto Timeshift：Set timeshift mode to auto when recording Timeshift Buffer Size(MB)：Set the Timeshift Buffer Size between auto, off, 100, 200, 400, 800, 1600, 3200 or 6400MB.

  • Page 18: About Stb

    1) Press the VOL+/VOL- to highlight the Music. 2) Press the CH+/CH- to change the folder or file and press the OK button to open the folder or play the music file. It supports *.mp3, *.ogg, *.wav and *.flac format music files. 4.

  • Page 19: Subtitle

    1. Press the EPG button. 2. Press the GREEN button to switch EPG mode between Weekly EPG and Day EPG. 8.5 Subtitle：You can select the language for the subtitle if the program provides subtitle information. 8.6 Record：You can record programs to an external USB flash drive or HDD (not supplied).

  • Page 20: Favorite List

    5) Press the BLUE button can help you find the channel quick by the first character of name. 6)press the ◀/▶ button to change the channels list FTA,CAS/HD. 9.2 Favorite List 1) If you have set several favorite lists, press the FAV button to enter the favorite list.

  • Page 21: Additional Information

    11. Additional Information   11.1 Trouble Shooting Before contacting your local service centre, please read the tips below carefully. If the problem persists after completing the following procedure, please contact your local product distributor or service centre for further instructions. 1. No message displayed on the front display. (The product will not switch on.) •...

  • Page 22: Technical Specifications

    • Set the antenna power in menu to On, if you use the active antenna to improve the reception (where applicable) 4. No or poor sound • Check that your AV/HDMI cable is connected correctly. • Check the volume levels of your TV set and the product. •...
  • Page 23 Power Supply Input Voltage AC 100 ~240V, 50/60Hz Power Consumption Max. 25 W Protection Separate internal fuse. Input shall have lightening Protection Physical Specification Weight (Net) About 2.5kg Operating Temp 0℃ to + 40℃ Storage Temp -40℃ to + 65℃...
  • Page 25 STRONG AUSTRALIA PTY LTD 60 WEDGEWOOD ROAD HALLAM, VIC. 3803 Ph: +61 3 8795 7990 FAX: +61 3 8795 7991 HELP DESK 1800 820 030 tech@strong.com.au WEBSITE www.strong.com.au...
