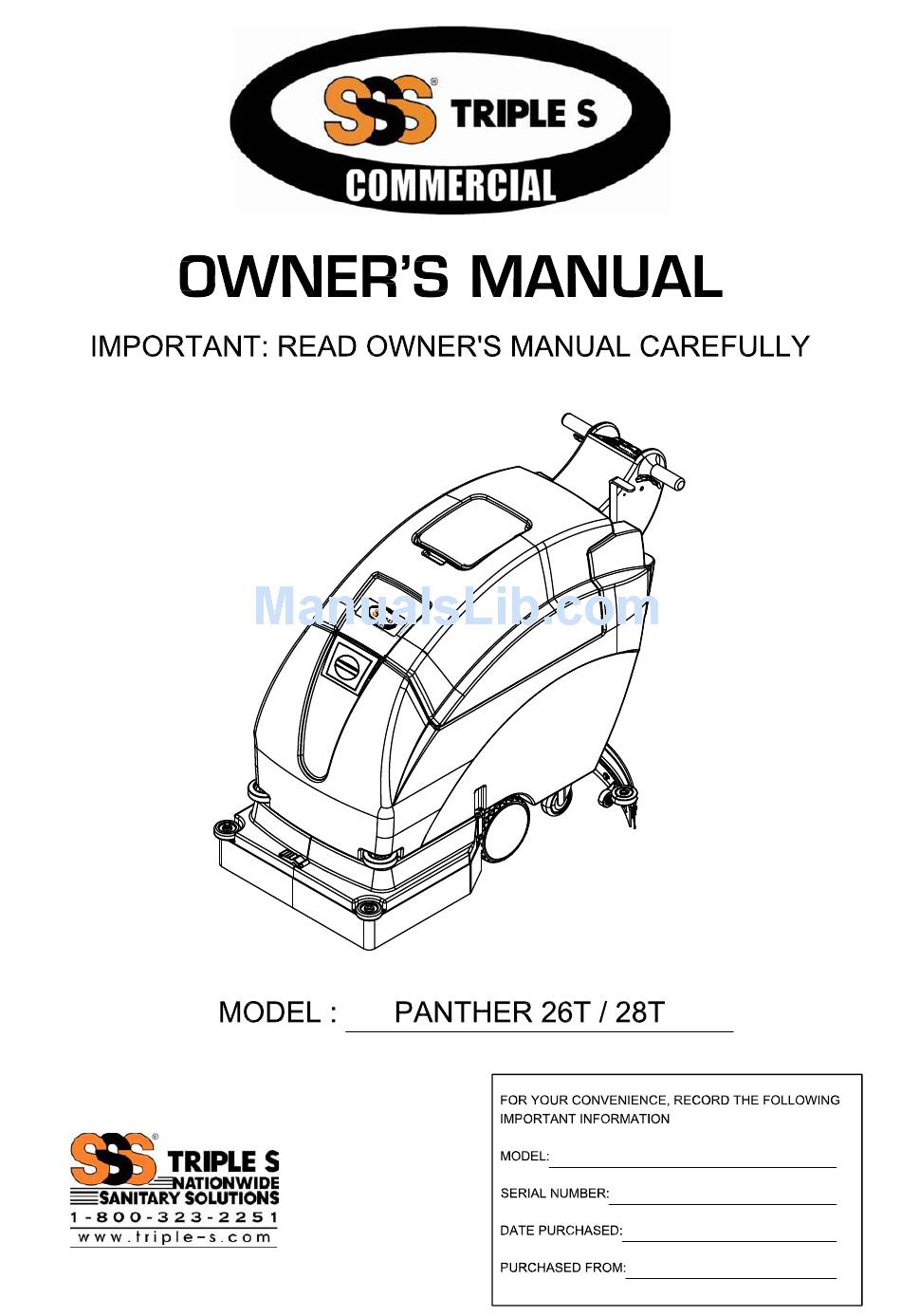

Triple S panther 26T Owner's Manual

Hide thumbs Also See for panther 26T:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the panther 26T and is the answer not in the manual?

Questions and answers

Related Manuals for Triple S panther 26T

Summary of Contents for Triple S panther 26T

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY PRECAUTIONS MACHINE COMPONENTS MACHINE SET UP MACHINE INSTALLATION MACHINE OPERATION TANK DRAINING BATTERY CHARGING PREVENTATIVE MAINTENANCE MACHINE STORAGE BASIC TROUBLESHOOTING PARTS BREAKDOWNS AND LISTS 11-27 WIRING DIAGRAM WARRANTY POLICY...

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS WHEN SERVICING MACHINE: (con’t) x Disconnect batteries prior to working This machine is intended for commercial use. It is constructed for use in an indoor environment and on machine. x Wear gloves when handling batteries is not intended for any other use. Use only with recommended accessories.

  • Page 5: Machine Set Up

    R E D FILLING THE SOLUTION TANK B L A C K 1. The PANTHER 26T & 28T can be filled in two different locations: B A T T E R Y B R A C E a. Front fill area for use with a hose or a C H A R G E R P L U G bucket.

  • Page 6: Machine Operation

    left side of the control housing. (see machine components, item #18) The toggle switch : If you are filling the solution tank with a must be pulled backwards and the red bucket, make sure the bucket is clean. This will operating triggers must be pressed to activate prevent debris from clogging the lines or solenoid.

  • Page 7: Tank Draining

    DRAINING THE SOLUTION (CLEAN) TANK : The brush motors are circuit breaker : Anytime scrubbing operation is completed, protected to protect them from damage. If a the solution tank should be drained and cleaned. breaker trips, it can’t be reset immediately. You 1.

  • Page 8: Preventative Maintenance

    DAILY MAINTENANCE 5. Plug approved charger into grounded wall outlet before plugging the charger into the 1. Remove pad driver / brush and clean with machine. approved cleaner. 6. Plug charger into red charger receptacle 2. Drain recovery and solution tanks completely located in the front left of the battery and rinse out with clean water.

  • Page 9: Machine Storage

    VACUUM MOTOR MAINTENANCE the machine prior to storage. Any damage 1. Contact your local Distributor for any motor caused by freezing temperatures will not be maintenance. covered by the warranty. 2. Vacuum motor should have the brushes 7. Drain the recovery tank and remove the clear checked every 250 hours.

  • Page 10: Basic Troubleshooting

    BASIC TROUBLESHOOTING PROBLEM CAUSE SOLUTION No power Bad batteries Replace batteries Batteries need to be charged Charge batteries (see Battery Charging) Loose battery cable Tighten loose cable(s) Batteries not connected properly Follow battery installation instructions Brush motor does Bad brush switch Contact Distributor not run Brush circuit breaker has tripped...

  • Page 12: Solution Tank Assembly

    BUSHING VF81404 SUPPORT,RECOVERY TANK VF82029A BRACKET,VAC TUBE VF82032 SPRING VF82030 ADAPTER,TUBE VF82031A GASKET,TUBE ADAPTER VF82070-26TR LABEL,LEFT [PANTHER 26T] VF82070-28TR LABEL,LEFT [PANTHER 28T] VF81306 CONNECTOR, 175A VF81747 WIRE, #6 X 750 VF82123 DECAL VF13633 SCREW, M6 X 35 VV13607 WASHER,LOCK, M6 GT13032 WASHER,PLAIN, M6 X M16 X 1.5...
  • Page 13 SOLUTION TANK ASSEMBLY PART DESCRIPTION NUMBER REQ'D VF13634 SCREW, M10 X 30 VF82403 CABLE,BATTERY VF81724 CAPS,BATTERY,BLACK VF81724R CAPS,BATTERY,RED CHRGR18 CHARGER,24V,18AMP VF13537 WASHER,PLAIN, M10 X M26 X 2 VF13518 WASHER,LOCK, M10 VF14234 SCREW, M8 X 16 VF13513 NUT, M8 VF81408 PLATE,LOCK VF81416 HOSE BARB VF82161...

  • Page 15: Recovery Tank Assembly

    VF81503 SEAT VF14200 SCREW, M6 X 16 GT13032 WASHER,PLAIN, M6 X M16 X 1.5 VF82011 HINGE,RECOVERY TANK VF82082TR LOGO, TRIPLE S VA13477 SCREW, SELF-TAPPING, ST, M4 X 16 VV13664 WASHER,PLAIN, M4 X M12 X 1 VF82010A RUBBER HINGE VF82010B GASKET...
  • Page 17 BRUSH LIFT/DRIVE ASSEMBLY PART DESCRIPTION NUMBER REQ'D VF82080TR HUB CAP VF81106 WHEEL, 8" VF81600 TRANSAXLE ZD72000A TRANSAXLE MOTOR, 24VDC VF81102 BRACKET,TRANSAXLE MOUNT VF13537 WASHER,PLAIN, M10 X M26 X 2 VF13518 WASHER,LOCK, M10 VF13636 SCREW, M10 X 45 VF13634 SCREW, M10 X 30 VF13502 NUT,LOCK, M6 VF13533...
  • Page 19 HOSE BARB,TEE VF81121 TUBING, 120mm VF82148 CLAMP, 16mm VF14225A SCREW, M6 X 40 VF83133 STUD VF83128 PAD DRIVER, 12" [PANTHER 26T] VF83207 PAD DRIVER, 13" [PANTHER 28T] VF13502 NUT,LOCK, M6 VF83118 SPACER VF99003A BIG MOUTH VA13484 SCREW,SELF-TAPPING,ST, M4 X 12 MF-VF002-4A SCREW,SELF-TAPPING, 1/4"...
  • Page 21 SOLUTION CONTROL ASSEMBLY PART DESCRIPTION NUMBER REQ'D VF14245 SCREW, M5 X 6 VF82036 SHAFT VV13650 SCREW, M4 X 10 VF13532 WASHER,PLAIN, M5 VV13601 WASHER,LOCK, M5 VF14230 SCREW, M5 X 15 VF13536 WASHER,PLAIN, M9.8 X M16 X 1 VF82075 NUT, 3/8" VF83121 CABLE,SOLENOID VF82148...
  • Page 23 WASHER,PLAIN, M8 X M16.5 X 1 VF14236 SCREW, M8 X 40 VV20519 SCREW, M4 X 8 VV20291 WASHER,LOCK, M4 VF83104R RIGHT SKIRT,ASSEMBLY [PANTHER 26T] VF83202R RIGHT SKIRT,ASSEMBLY [PANTHER 28T] VF83147 GRIP,BUMPER [PANTHER 26T] VF83212 GRIP,BUMPER [PANTHER 28T] VA13474 SCREW, M5 X 16 VF13550 WASHER,PLAIN, M5 X M25 X 1.5...
  • Page 25 PIN,HANDLE LOCK VF81716 SPRING VF81710 PIN,HANDLE ADJUSTMENT VF81729 POTIENTIOMETER, 4.7K VF82316 PLATE VF81739-24T SPEED CONTROL,BOARD VF83145TR SERIAL TAG [PANTHER 26T] VF83210TR SERIAL TAG [PANTHER 26T] VF83148 LABEL,CIRCUIT BREAKER VF82303A PANEL,CONTROL HOUSING VF81703 BATTERY CAPACITY CONTROL,BOARD VF82312 GASKET VF99012 BREAKER,CIRCUIT, 12 AMP...
  • Page 27 BOLT,SHOULDER, 5/16" X 1.25" VF81219 WHEEL, 2" VF13535 WASHER,PLAIN, M8 X M20 X 2 VV20203 NUT,LOCK, 5/16" VF81214 BACKUP STRIP,SQUEEGEE,REAR [PANTHER 26T] VF81233 BACKUP STRIP,SQUEEGEE,REAR [PANTHER 28T] VF81214A KIT,BACKUP STRIP [PANTHER 26T] VF81233A KIT,BACKUP STRIP [PANTHER 28T] VF81205 BLADE,SQUEEGEE,FRONT,PU [PANTHER 26T]...

  • Page 29: Warranty Policy

    This warranty does not apply to damage or defect caused by accident, misuse, negligence, abuse, fire or to any Triple S product which has been serviced by anyone other than a Triple S authorized service representative. Housings or parts that have become damaged as a result of improper use of the machine are excluded from this warranty.

This manual is also suitable for:

Parther 28t

Table of Contents
