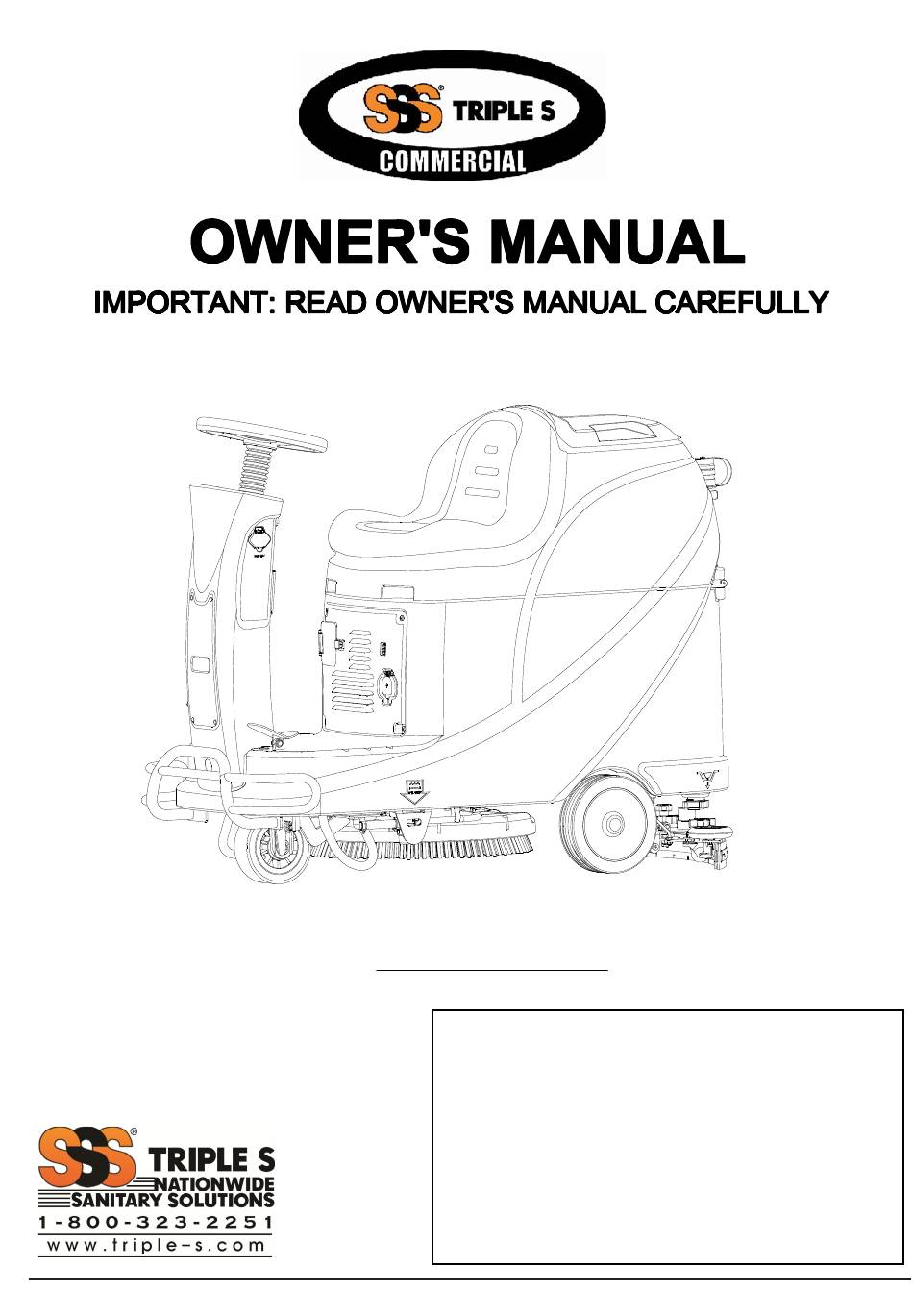

Triple S JAGUAR 20R Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

86014
JAGUAR 20R
MODEL:
FOR YOUR CONVENIENCE, RECORD THE FOLLOWING
IMPORTANT INFORMATION
MODEL:__________________________________________
SERIAL NUMBER: _________________________________
DATE PURCHASED:________________________________
PURCHASED FROM: _______________________________
VR28023
1/2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JAGUAR 20R and is the answer not in the manual?

Questions and answers

pedro
July 23, 2025

why brush vibrates when spinning

0

Related Manuals for Triple S JAGUAR 20R

Summary of Contents for Triple S JAGUAR 20R

  • Page 1 86014 JAGUAR 20R MODEL: FOR YOUR CONVENIENCE, RECORD THE FOLLOWING IMPORTANT INFORMATION MODEL:__________________________________________ SERIAL NUMBER: _________________________________ DATE PURCHASED:________________________________ PURCHASED FROM: _______________________________ VR28023 1/2017...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ..........................1 MANUAL CONTENT AND PURPOSE ............................1 HOW TO KEEP THIS MANUAL ..............................1 ACCESSORIES AND MAINTENANCE ............................1 CHANGES AND IMPROVEMENTS ............................1 SCOPE OF APPLICATION ................................. 1 MACHINE IDENTIFICATION DATA ............................1 TRANSPORT AND UNPACKING ............................... 1 ......

  • Page 4: Introduction

    INTRODUCTION NOTE The numbers in brackets refer to the components shown in Machine Description chapter. MANUAL CONTENT AND PURPOSE The purpose of this Instruction for Owner's Manual is to provide the operator with necessary information to use the machine properly and safely.

  • Page 5: Safety

    1. Technical documentations including , and on-board charger manual if on-board charger is equipped. Owner's Manual 2. Charger cable if on-board charger is equipped. SAFETY The following symbols indicate potentially dangerous situations. Always read this information carefully and take all necessary precautions to safeguard people and property.
  • Page 6  Before using the battery charger, ensure that the values of frequency and voltage indicated on the machine serial number label match those of mains.  Never move the machine by pulling the battery charger cable. Do not let the cable through a closed door, or winding on sharp edges or corners.

  • Page 7: Machine Description

    MACHINE DESCRIPTION MACHINE STRUCTURE (as shown in Figure 1) 11 12 13 14 Figure 1 1. Steering wheel 17. Solution tank 2. Seat cushion 18. Squeegee adjustment knob 3. Recovery tank 19. Vacuum hose 4. Recovery tank cover 20. Squeegee knob 5.

  • Page 8: Control Panel

    MACHINE DESCRIPTION CONTROL PANEL (as shown in Figure 2) Figure 2 31. LED screen 32. Discharged battery warning light (Red) 42. Drive motor trouble light 33. Battery semi-discharged indicator (Yellow) 43. Speed adjusting knob 34. Horn button 44. Vacuum motor overload protector 35.

  • Page 9: Technical Parameters

    TECHNICAL PARAMETERS MODEL Jaguar 20R Packin g dimensions (L x W x H) 1470 730 1310 mm 57.9 x 28.7 x 51.6 inch Machine height 1120 mm 44.1 inch Machine length 1360 mm 53.5 inch Machine width (without squeegee) 580 mm 22.8 inch...

  • Page 10: Circuit Diagram

    CIRCUIT DIAGRAM...

  • Page 11: Operating Guide

    OPERATING GUIDE WARNING! Pay high attention to these symbols in this manual: – DANGER – WA RNING – CAUTION – CONSULTATION Never cover these symbols on the machine for any reason, replace it immediately if any damage. INSTALLING AND SETTING OF NEW MACHINE BATTERY WARNING! The electric components of the machine can be seriously damaged if the batteries are either improperly installed or connected.

  • Page 12: Emergency Braking

    4. Unscrew the screw (B, Figure 4) on control panel, then turn over the PCBA (A) on the panel to find DIP switch (D), follow Figure 4 for DIP settings. 5. Perform steps in reserve order of disassembly to fix control panel and lock the screw after setting is done. WET BATTERIES (NOTE: Turn pin 1 and pin 2 of DIP switch...

  • Page 13: Adjusting The Balance Of Squeegee

    1. Insert key switch (40) and turn to “ON”. 2. Press the pedal (6) forward by foot to lift brush assembly (11) from the floor. 3. Rotate speed adjusting knob (42) in counterclockwise until the end. 4. Place the brush (A, Figure 5) or pad (B, Figure 5) center align with brush deck. 5.

  • Page 14: Machine Start And Stop

     Brake unstuck - the brake handle (D, Figur 9) switched to upper location.  Brake locked the brake handle switched to lower location. In some special cases, such as machine packing/unpacking, machine fault etc., need to move the machine without drive motor working, please manually set the brake to unstuck status to move it.

  • Page 15: Machine Operation (Scrubbing And Drying)

    15. Turn the key switch to “OFF” 16. Ensure the machine is stopped. MACHINE OPERATION (SCRUBBING AND DRYING) 1. Start the machine according to procedures in previous paragraphs. 2. Start cleaning by following procedures in section of “Starting the machine”. 3.

  • Page 16: Tank Emptying

    TANK EMPTYING An automatic float shut-off system (B, Figure 13) blocks the vacuum system when the recovery water tank (C) is full. The vacuum system deactivation is signaled by a sudden increase in the vacuum system motor noise frequency, also the floor has not dried.

  • Page 17: Using For The First Time

    USING FOR THE FIRST TIME After nine hours using the machine for the first time, please check if any damage or abnormal situation, check whether the fasteners or fittings are loose. MAINTENANCE WARNING! Maintenance procedures must be performed after the machine is turned off and the battery charger cable is disconnected.
  • Page 18 CAUTION! To be especially carefully when battery is charging, because there may be leaked acid in the process of charging. Battery acid is corrosive, if it accidentally comes into contact with the skin or eyes, rinse immediately with plenty of clean water and go to see a doctor.
  • Page 19 E1 2 • • • •...

  • Page 21: Fuse Check/Replacement

    FUSE CHECK/REPLACEMENT Turn the key switch (D, Figure 24) to “OFF”. Disconnect the battery connect cable. Unscrew the screws (C) on the control panel and then turn over the PCBA to find the fuse (A and B). Check/replace the fuses: A) F1 is the low-power circuit fuse (5A) B) F3 is brush dismount fuse (20A) After check/replacement is done, re-assemble...
  • Page 22 Recovery tank is full Empty the recovery tank Drain hose and squeegee poor Connect the drain hose and connection squeegee correctly Clean the float ball filter and check Float ball filter block the float ball position status Insufficient suction, the floor cannot be dried Squeegee is dirty or wearing Check and clean the squeegee...

  • Page 23: Scrapping

    ¤¤¤¤¤¤¤ † 1. EEPROM failure or fault. EEPROM CHECKSUM FAULT 1. Battery not connected. ¤¤¤¤¤¤¤¤¤ BATTERY DISCONNECT FAULT ❊ 2. Poor connection to battery terminals. ❊= Must cycle key switch to clear. † = Must use programmer to clear, as follows: select Program menu, alter data value of any parameter, cycle key switch.
  • Page 24 PART LIST TABLE OF CONTENTS Description Page COMPLETE ASSEMBLY 22-23 CHASSIS AND BUMPER ASSEMBLY 24-25 FRONT WHEEL ASSEMBLY 26-27 DRIVE MOTOR AND REAR WHEEL ASSEMBLY 28-29 DIRECTION CONTROL ASSEMBLY 30-31 FRONT MAIN FRAME ASSEMBLY 32-33 CONTROL HOUSING ASSEMBLY 34-35 BRUSH ASSEMBLY 36-37 SOLUTION TANK ASSEMBLY 38-39...
  • Page 25 PART LIST...

  • Page 26: Complete Assembly

    PART LIST COMPLETE ASSEMBLY Item Description CHASSIS ASSEMBLY LEFT BUMPER ASSEMBLY FRONT WHEEL ASSEMBLY BRUSH LIFTING PEDAL ASSEMBLY KIT FRONT BUMPER RIGHT BUMPER ASSEMBLY FRONT MAIN FRAME ASSEMBLY FRONT HOUSING ASSEMBLY DIRECTION CONTROL ASSEMBLY RECOVERY TANK COVER ASSEMBLY RECVOERY TANK ASSEMBLY SOLUTION TANK ASSEMBLY BATTERIES DRIVE MOTOR AND REAR WHEEL ASSEMBLY...
  • Page 27 PART LIST...

  • Page 28: Chassis And Bumper Assembly

    PART LIST CHASSIS AND BUMPER ASSEMBLY Item Part No. Description VR23055 FRONT BUMPER KIT VR25017 BRUSH LIFT PEDAL KIT VR23056 LEFT BUMPER KIT VR25016 ROTARY BRACKET KIT VR25027 SPRING VR23000 CHASSIS VR23057 MICROSWITCH KIT VR23058 RIGHT BUMPER KIT VS10206 BATTERY CONNECTIONS BATTERIES VR23060 BATTERY BRACKET KIT...
  • Page 29 PART LIST...

  • Page 30: Front Wheel Assembly

    PART LIST FRONT WHEEL ASSEMBLY Item Part No. Description VR23061 KIT HARDWARE FIXED PILLARS VR23036 FRONT WHEEL WASHER VR23035 FRONT WHEEL FIXED PILLARS VR23062 KIT HARDWARE FRONT WHEEL BRACKET VR23039 FIXED BEARING RING VR23047 KIT CONTACTOR VR23037 BEARING VR23034 BIG GEAR VR23031 FRONT WHEEL BRACKET VR23030...
  • Page 31 PART LIST...

  • Page 32: Drive Motor And Rear Wheel Assembly

    PART LIST DRIVE MOTOR AND REAR WHEEL ASSEMBLY Item Part No. Description VR23029 REAR WHEEL VR23048 KIT HOOK BLOCK VR27022 MOTOR SHAFT(LONG) VR27025 KIT MOTOR BRAKE VR27024 CARBON BRUSH VR27020 MOTOR TRACTION VR23049 KIT MOTOR TRACTION VR27023 MOTOR SHAFT(SHORT) VF14075 BEARING VR23050 KIT TRACTION MOUNT...
  • Page 33 PART LIST...

  • Page 34: Direction Control Assembly

    PART LIST DIRECTION CONTROL ASSEMBLY Item Part No. Description VR24095 KIT STEERING WHEEL LOGO VR24008 STEERING WHEEL VR24085 KIT STEERING WHEEL LOCK VR24011 RUBBER SLEEVE STEERING WHEEL VR24010 UP SHAFT STEERING WHEEL VR10040 KIT UNIVERSAL JOINT VR24090 KIT DOWN SHAFT STEERING WHE VR24087 KIT BEARING WITH BRACKET VR24086...
  • Page 35 PART LIST...

  • Page 36: Front Main Frame Assembly

    PART LIST FRONT MAIN FRAME ASSEMBLY Item Part No. Description VR24071 KIT BEARING BASE VR24072 KIT SQUEEGEE SWITCH VR24073 KIT HANDLE SQUEEGEE LIFT VR24074 KIT CABLE GUIDE WHEEL SQUEEGEE LIFT VR24075 KIT FRONT FRAME VR24076 KIT HORN VR24021 CABLE SQUEEGEE LIFT...
  • Page 37 PART LIST...

  • Page 38: Control Housing Assembly

    PART LIST CONTROL HOUSING ASSEMBLY Item Part No. Description VR24077 KIT CONTROL PANEL VR24078 KIT CONTROL PCB (EU VERSION) VR24089 KIT CONTROL PCB (US VERSION) VR15200 KIT USB COVER VR2408 KIT USB PCB VR24096 KIT CONTROL HOUSING COVER VR24092 LOGO LABEL 146 2887 000 9100001354 KEY SWITCH...
  • Page 39 PART LIST...

  • Page 40: Brush Assembly

    PART LIST BRUSH ASSEMBLY Item Part No. Description VR27010 KIT BRUSH MOTOR VR27100 WATERPROOF CASE VR25013 SHAFT KEY VR25041 KIT BRUSH LIFT PLATE VR25042 KIT BRUSH LIFT ARM CONNECTION VR25043 KIT BRUSH LIFT ARM VR25044 KIT BUMPER WHEEL VR25045 KIT BRUSH DECK VR25046 KIT PLATE DRIVE VR25014...
  • Page 41 PART LIST...

  • Page 42: Solution Tank Assembly

    PART LIST SOLUTION TANK ASSEMBLY Item Part No. Description VR21021 KIT ANTI-SKID PLATE VR21022 KIT SPEED CONTROL PEDAL VR21037 KIT INPUT CONNECTION CABLE VR21038 KIT SOLUTION TANK VR21039 KIT WIRE CLAMP VR21059 KIT SOLUTION COVER VR21040 KIT HOSE CLAMP VF90536 KIT OUTLET COVER VR13430 SWITCH SOLUTION TANK WATER LEVEL...
  • Page 43 PART LIST...

  • Page 44: Electric Parts Assembly

    PART LIST ELECTRIC PARTS ASSEMBLY Item Part No. Description VF89724 BATTERY CHARGING CABLE(US) VR21057 KIT CHARGER (US VERSION) VR21044 KIT FIX BRACKET ZD48320 BREAKER VR21045 KIT RELAY VR21046 KIT ELECTRIC PARTS MOUNTING PLATE VR21047 KIT CONNECT WIRE POLE VR21048 KIT DRIVE MOTOR CONTROL VR21049 KIT CONTACTOR VR13120...
  • Page 45 PART LIST...

  • Page 46: Recovery Tank Assembly

    PART LIST RECOVERY TANK ASSEMBLY Item Part No. Description VR22022 RECOVERY TANK COVER VR22002 GASKET VR22011 CUSHION VR27012 CUSHION SWITCH KIT VR22013 CUSHION KIT VR22003 RECOVERY TANK VR22015 CABLE CLAMP VR22016 RECOVERY TANK PULL CABLE KIT VF90520 VACUUM MOTOR VF90522 CARBON BRUSH VR27100 WATERPROOF CASE...
  • Page 47 PART LIST...

  • Page 48: Squeegee Bracket Assembly

    PART LIST SQUEEGEE BRACKET ASSEMBLY Item Part No. Description VR26014 KIT SQUEEGEE LIFT CHAIN VR26015 KIT SQUEEGEE BRACKET VR26016 KIT SQUEEGEE MOUNTING PIVOT VR26017 KIT SQUEEGEE ADJUSTMENT HANDLE VR26018 KIT SQUEEGEE ADJUSTMENT BRACKET VR26006 SQUEEGEE BRACKET ASSEMBLY...
  • Page 49 PART LIST...

  • Page 50: Squeegee Assembly

    PART LIST SQUEEGEE ASSEMBLY Item Part No. Description VF90138 STRAP KIT REAR SQUEEGEE VR26024 SQUEEGEE BLADE REAR VR26019 WHEEL KIT BUMPER VF81210 KNOB VF85420 WING NUT VR26020 SQUEEGEE ALUMINUM BODY VR26023 SQUEEGEE BLADE FRONT VR26021 KIT SQUEEGEE UNIVERSAL WHEEL VR26022 STRAP KIT FRONT SQUEEGEE...
  • Page 51 PART LIST...

  • Page 52: Electric Parts

    PART LIST ELECTRIC PARTS Item Part No. Description VR27111 RELAY CONNECT WIRE VR27140 VACUUM MOTOR CIRCUIT BREAK TO RELAY CONNECT WIRE VS10216 BRUSH MOTOR CIRCUIT BREAK TO RELAY CONNECT WIRE VR27153 SPEED CONTROL TO "-"BINDING POST CONNECT WIRE VR27152 RELAY TO "-"BINDING POST CONNECT WIRE VR27150 DRIVE MOTOR CIRCUIT BREAK TO RELAY CONNECT WIRE VR27151...
  • Page 53 PART LIST...

  • Page 54: Other Electric Parts Assembly

    PART LIST OTHER ELECTRIC PARTS ASSEMBLY Item Part No. Description VR27141 VACUUM MOTOR CONNECT WIRE EMC CERTIFICATE VR27154 DRIVE MOTOR CONNECT WIRE EMC CERTIFICATE VR27130 BRUSH MOTOR CONNECT WIRE EMC CERTIFICATE VR27110 24V INPUT LINE WIRE...

  • Page 55: Motor Speed Controller Connect Wire

    PART LIST Item Part No. Description VR27155 MOTOR SPEED CONTROLLER CONNECT WIRE VR27157 BUZZE CONNECT WIRE...
  • Page 56 PART LIST Item Part No. Description VR27112 MAIN CONNECT WIRE...

  • Page 57: Wear And Tear Parts

    PART LIST WEAR AND TEAR PARTS Item Part No. Description VR23057 MICROSWITCH KIT VR22002 GASKET VR27012 CUSHION SWITCH KIT VF90520 VACUUM MOTOR VF90534 FLOAT KIT VF90522 CARBON BRUSH VR22006 DRAIN HOSE VF84223 SUCTION HOSE VR10040 KIT UNIVERSAL JOINT VR24072 KIT SQUEEGEE SWITCH VR24089 KIT CONTROL PCB (US VERSION) 9100001354...
  • Page 58 PART LIST WEAR AND TEAR PARTS Item Part No. Description VR26014 KIT SQUEEGEE LIFT CHAIN VR26017 KIT SQUEEGEE ADJUSTMENT HANDLE VF90138 STRAP KIT REAR SQUEEGEE VR26024 SQUEEGEE BLADE REAR VR26019 WHEEL KIT BUMPER VR26023 SQUEEGEE BLADE FRONT VR26021 KIT SQUEEGEE UNIVERSAL WHEEL *VR25025 KIT RIGHT BRUSH SKIRT HEADWARE *VR25026...

  • Page 59: Wiring Diagram

    PART LIST WIRING DIAGRAM...
