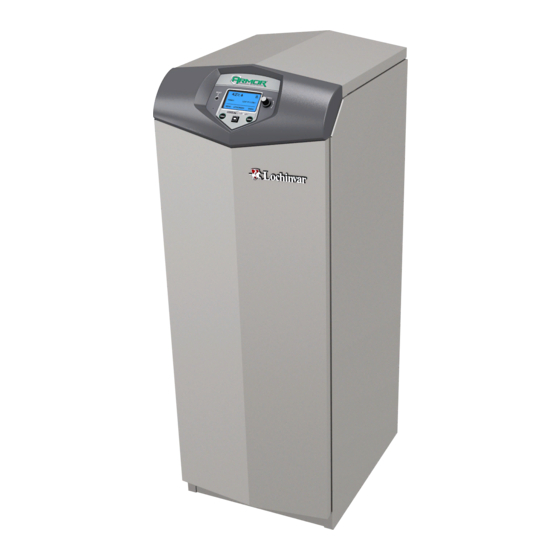

Lochinvar ARMOR 151 Installation And Operation Manual

Condensing water heateer
Hide thumbs Also See for ARMOR 151:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Instruction Manual
WARNING:
If the information in this
manual is not followed exactly, a fire or
explosion may result causing property damage,
personal injury or loss of life.
-- This water heater MUST NOT be installed in
any location where gasoline or flammable vapors
are likely to be present.
-- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any
phone in your building.
• Immediately call your gas supplier from a near by
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
• Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
Installation & Operation Manual
Models: 151 - 801
This manual must only be used
WARNING
by a qualified heating installer
/ service technician. Read all
instructions, including this manual
and the Armor Water Heater Service
Manual, before installing. Perform
steps in the order given.
to comply could result in severe
personal injury, death, or substantial
property damage.
Save this manual for future reference.
AWII-I-O Rev C
Failure
