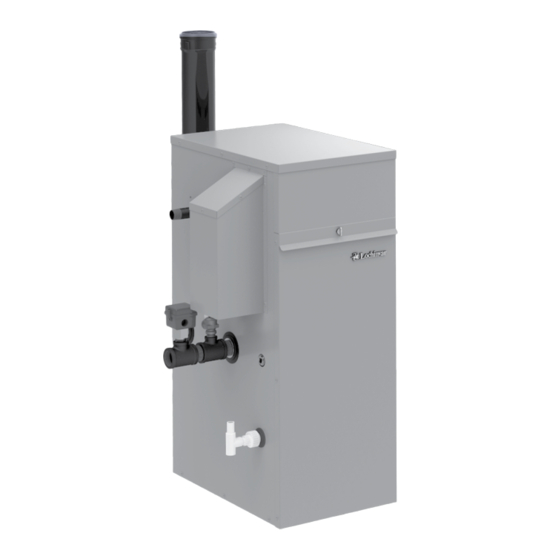

Outdoor Armor Water
Heater Installation &
Operation Manual
Models: 151 - 801
This manual must only be used by
WARNING
a qualified heating installer / service
technician. Read all instructions,
including this manual and the
Outdoor Armor Water Heater
Service Manual, before installing.
Perform steps in the order given.
Failure to comply could result in
severe personal injury, death, or
substantial property damage.
Save this manual for future reference.
OAW-I-O Rev D
