Lochinvar ARMOR AWP-SUB-08 Submittal Sheet

ARMOR
JOB NAME ______________________________________________________________________
LOCATION ______________________________________________________________________
ARCH./ENGR.____________________________________________________________________
WHOLESALER __________________________________________________________________
MECH. CONTRACTOR ___________________________________________________________
MODEL NO. _____________________________________________________________________
TYPE GAS ______________________________________________________________________
Btu/hr INPUT_____________________________________________________________________
RECOVERY RATE IN GPH_______________________________________@________°F RISE
NOTES
Standard Features
> Up to 98% Thermal Efficiency
> Modulating Burner with 5:1 Turndown
> Direct-Spark Ignition
> Low NOx Operation
> Sealed Combustion
> Low Gas Pressure Operation
> Vertical & Horizontal Direct-Vent
> PVC, CPVC or SS Venting up to 100 Feet
> PVC/CPVC Sidewall Vent Termination
> Stainless Steel Heat Exchanger
> All Welded Construction, Gasketless Design
> 160 psi Working Pressure
> ASME Construction (AW 286-800)
> Natural to L.P. Conversion Kit
> All Bronze Circulating Pump
> On/Off Switch
> Flow Switch
> ASME Temperature & Pressure Relief Valve
> Temperature & Pressure Gauge (AW 501-801)
> Downstream Test Valves (AW 501-801)
> Adjustable Leveling Legs
> Tank Sensor
> Adjustable High Limit w/ Manual Reset
> Automatic Reset High Limit
> Condensate Trap
> Zero Clearances to Combustible Material
> 5 Year Limited Warranty (See Warranty for Details)
> 1 Year Parts Warranty (See Warranty for Details)

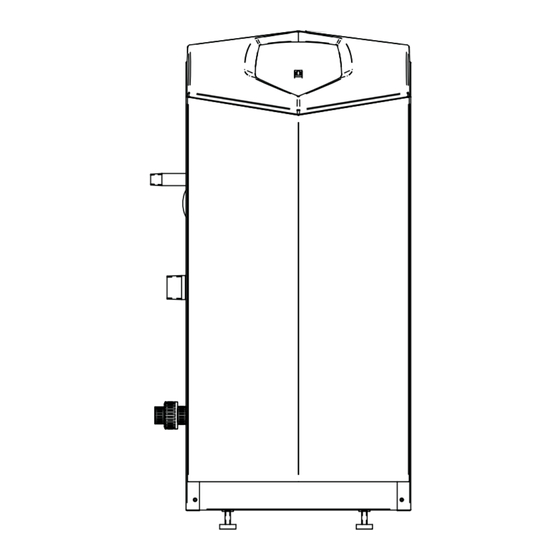

CONDENSING WATER HEATER PACKAGE SYSTEM
TM
Smart System Features
> SMART SYSTEM Digital Operating Control
> Multi Color Graphic LCD Display
> Built in Cascading Sequencer for up to 8 Water Heaters
> Lead Lag
> Efficiency Optimization
> Building Management System Integration
> Modbus Communication (Optional)
> 0-10VDC Input to Control Modulation or Set point
> 0-10VDC Modulation Rate Output
> 0-10VDC Input to Enable/Disable call for heat
> Access to BMS Settings Through Graphic LCD Display
> Low Water Flow Safety Control & Indication
> Inlet & Outlet Temperature Sensors & Readout
> Flue Temperature Sensor
> Water Heater Pump Control
> Pump Delay with Freeze Protection
> Pump Exercise
> Night Setback
(286-801)
> Building Recirculation loop Pump Control*
> Night Setback of Building Recirculation Loop*
> Time Clock
> Maintenance Reminder
>
Ability to program name and number into the product
as contact
> High Voltage Terminal Strip
> 120 VAC / 60 Hertz / 1 Phase Power Supply
> Pump Control Contacts
> Water Heater Pump Control Contacts
> Building Recirculation Pump Control Contacts
> Low Voltage Terminal Strip
> 24 VAC Auxiliary Device Relay
> Auxiliary Proving Switch Contacts
> Flow Switch Contacts
> Alarm on Any Failure Contacts
> Runtime Contacts
> Tank Sensor Contacts
> Cascade Contacts
> 0-10 VDC BMS External Control Contact
> 0-10VDC Boiler Rate Output Contacts
> Modbus Contacts
*Exclusive to Lochinvar
ARMOR
Condensing Water Heater
Submittal Sheet
AWP-Sub-08
Optional Equipment
> Alarm Bell
> Condensate Neutralization Kit
> High & Low Gas Pressure Switches
(AW 501-801)
> Concentric Vent Kit
(3" & 4" PVC/CPVC only)
> ModBus Communications
> SMART SYSTEM PC Software
> Room Air Vent Kits
> Stack Frame
Firing Control Systems
> M9 Standard Construction
> M7 California Code
(AW 286-801)
> M13 CSD1 / FM / GE Gap
(AW 501-801)
