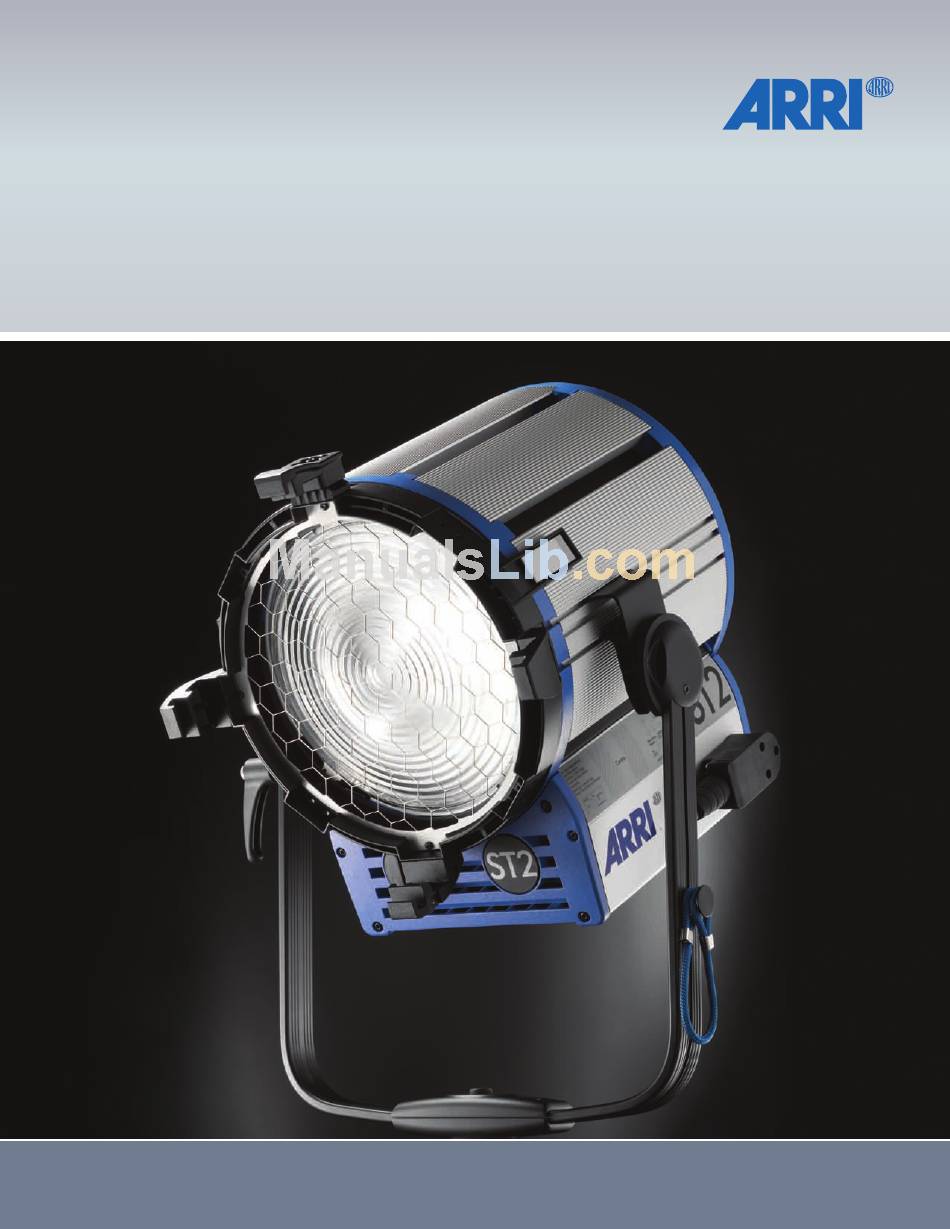

- Page 1 TRUE BLUE New Location & Studio Fresnels...
- Page 3 Cleaning is made effortless with smooth lamp housing surfaces. ARRI has redesigned these new lights down to the smallest detail, offering lighting professionals better choices for location and studio work. TRUE BLUE Fresnels from 1000 to 5000W include the T1, T2, T5, ST1, ST2 and ST5.
- Page 4 Cross Cooling ARRI’s cross cooling system moves a stream of air around the Fresnel lens and through the lamphead. In addition, air is channeled through the aluminum extrusion housing reducing lens temperature by 17% and housing Stegmaier Connector We’ve named this component for its inventor and the principal designer of ARRI TRUE BLUES.
-
Page 5: Maintenance
Top Latch Sometimes simple and reliable is the best answer. The new ARRI spring loaded Top Latch lifts and turns completely out of the way to load and unload scrims and barndoors, then pivots back into its locked position. Adjustable Accessory Brackets Finally an easy solution to an old problem. - Page 6 AVAILABLE SEPTEMBER 2008 1000W Fresnel Cat. No. Description 551100 T1 1000W Fresnel, Stand Model 551101 T1 1000W Fresnel, Hanging Model 551102 T1 1000W Fresnel, Stand Model, Black 551103 T1 1000W Fresnel, Hanging Model, Black 551105 T1 1000W Fresnel, Pole Operated 551110 Four Leaf Barndoor 551115...
- Page 7 13.4 ft. (4.1 m) 16.1 ft. (4.9 m) 20.4 ft. (6.2 m) 25.5 ft. (7.8 m) 30.6 ft. (9.3 m) Beam Diameter = Distance x 0.18 Beam Diameter = Distance x 0.54 Beam Diameter = Distance x 1.02 ARRI | TRUE BLUE...
- Page 8 2000W Fresnel Cat. No. Description 551200 T2 2000W Fresnel, Stand Model 551201 T2 2000W Fresnel, Hanging Model 551202 T2 2000W Fresnel, Stand Model, Black 551203 T2 2000W Fresnel, Hanging Model, Black 551205 T2 2000W Fresnel, Pole Operated 551210 Four Leaf Barndoor 551215 Eight Leaf Barndoor 531220...
- Page 9 16.1 ft. (4.9 m) 21.4 ft. (6.5 m) 25.5 ft. (7.8 m) 30.6 ft. (9.3 m) 40.8 ft. (12.4 m) Beam Diameter = Distance x 0.18 Beam Diameter = Distance x 0.54 Beam Diameter = Distance x 1.02 ARRI | TRUE BLUE...
- Page 10 5000W Fresnel Cat. No. Description 551500 T5 5000W Fresnel, Stand Model 551501 T5 5000W Fresnel, Hanging Model 551502 T5 5000W Fresnel, Stand Model, Black 551503 T5 5000W Fresnel, Hanging Model, Black 551505 T5 5000W Fresnel, Pole Operated 552210 Four Leaf Barndoor 552215 Eight Leaf Barndoor 532220...
- Page 11 21.4 ft. (6.5 m) 26.8 ft. (8.2 m) 35.3 ft. (10.8 m) 47.1 ft. (14.4 m) 58.9 ft. (18.0 m) Beam Diameter = Distance x 0.21 Beam Diameter = Distance x 0.54 Beam Diameter = Distance x 1.18 ARRI | TRUE BLUE...
- Page 12 ARRI Inc. 600 N. Victory Blvd. Burbank CA, 91502-1639 Tel.+1(818)841-7070 Fax+1(818)848-4028 www.arri.com ARRI Inc. 2385 Stirling Road Ft. Lauderdale FL, 33312-6608 Tel.+1(954)322-4545 Fax+1(954)322-4188 www.arri.com ARRI Canada LTD. 415 Horner Avenue, Unit 11 Etobicoke, Ontario M8W 4W3, Canada Tel.+1(416)255-3335 Fax+1(416)255-3399 www.arrican.com www.arri.com...
