Complete Off-Grid Solar Kit Manual
Revision 1.0
3.2.2

Wiring the Solar Panels for 12 or 24 volt battery Charging

All of WindyNation's Complete Off-Grid Solar Kits can be configured for 12 volt battery bank charging.
WindyNation's Complete Off-Grid Solar Kits that contain an even number of solar panels can be configured
for 12 or 24 volt battery bank charging. See Table I below.
Complete Off-Grid Solar Kit
WN-100W-KIT
WN-200W-KIT
WN-300W-KIT
WN-400W-KIT
WN-600W-KIT-12
WN-600W-KIT-24
Table I: Battery bank voltage compatibility for Windy Nation's Complete Off-Grid Solar Kits.
Wiring diagram instructions on how to wire the solar panels in each kit for 12 or 24 volt battery charging are
shown in
Appendix A on Pages 14 -21
3.2.3

Attaching the MC4 Connectors to the Solar Panel Extension Cable

After you have determined how the solar panels will be wired together (12 or 24 volt) and you have consulted
the appropriate wiring diagram in Appendix A, you will need to attach the MC4 Connectors to the solar panel
extension cable. The MC4 connectors provide a reliable and water resistant way for conveniently making
electrical connections between solar panels and the extension cable. Figure 4 and Figure 5 below outline
how to attach the MC4 Connectors to solar panel cable.
Page 7 of 21
Number of Solar Panels Included
one
two
three
four
six
six

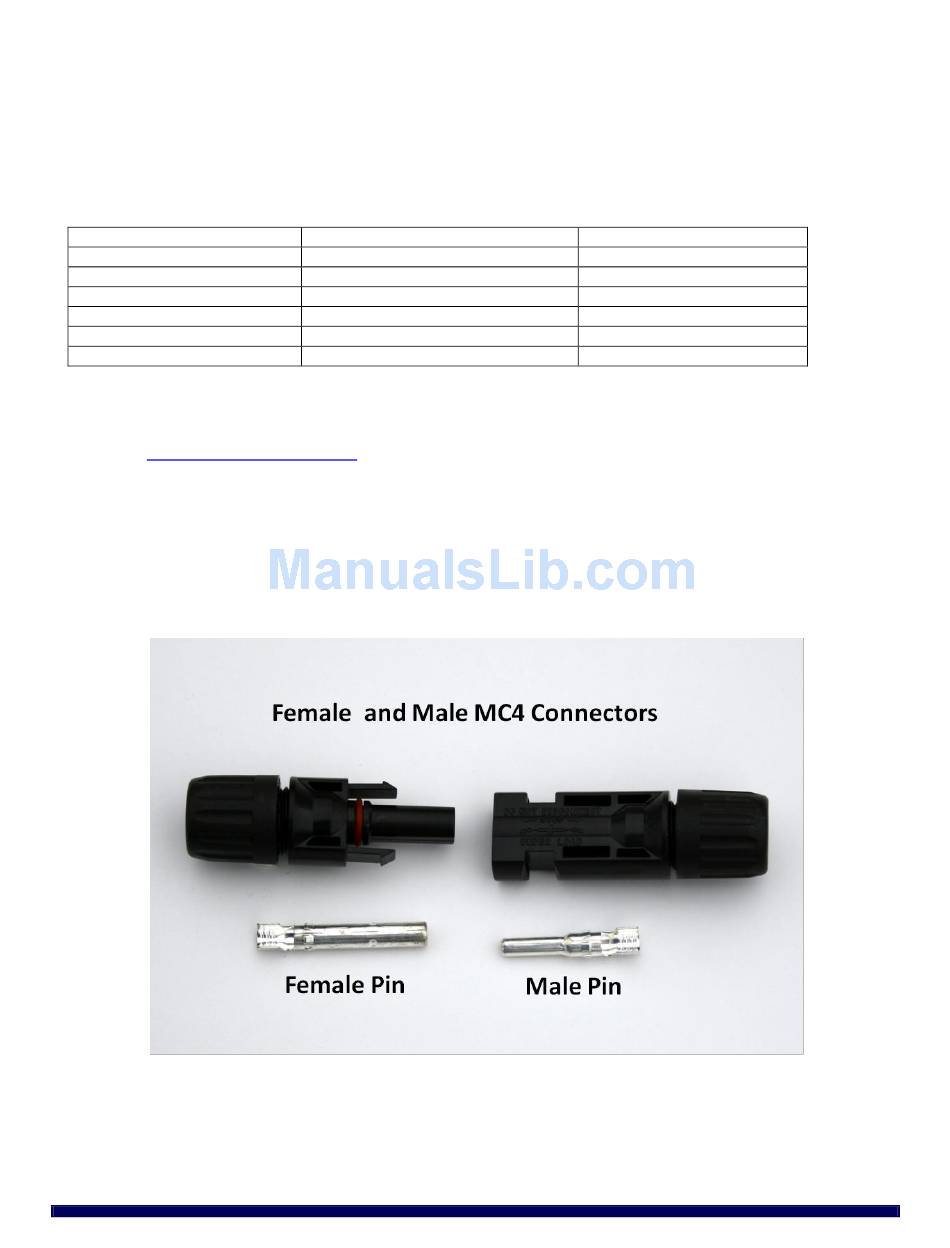

Figure 4: Male and Female MC4 Connectors
WindyNation
Battery Bank Compatibility
12 volts
12 or 24 volts
12 volts
12 or 24 volts
12 or 24 volts
24 volts
08/09/2012
