Complete Off-Grid Solar Kit Manual
Revision 1.0

2 PRODUCT OVERVIEW

Building a complete off-grid solar system has never been easier. WindyNation's Solar Panel Off-Grid Kits
provide up to 3000 Watt Hours of power per day and can be installed quickly and professionally using the
included materials. The Solar Panel Off-Grid Kits are designed for anything from temporary back-up power to
continuous power for an off-grid cabin or small house.
2.1 F
EATURES
Auxiliary power for RV's and boats. Popular with commercial RV and marine retrofitters
Great for camping or remote cabins. Power devices in remote back country locations
Easy way to provide power for sheds, light poles and gates without the need for trenching and laying
cables
Two or more panels can provide back-up power for critical appliances like a refrigerator during a
power outage.
2.2 S
P
AFETY
RECAUTIONS
CAUTION: Working with and installing electrical equipment is dangerous. Potential hazards include, but are
not limited to, electrocution and electrical fires. Always consult a licensed electrician when installing any
electrical equipment.

3 INSTALLATION

3.1 P
L
ARTS
IST
(Note: Quantity of each item varies depending on the kit size ordered)
1. 100 Watt Solar Panel
2.
Solar Panel Charge Controller
3.
MC4 Connectors and MC4 Branch Connectors
4.
Solar Panel Cable
5.
Solar Panel Mounting Z-Brackets
Page 5 of 21

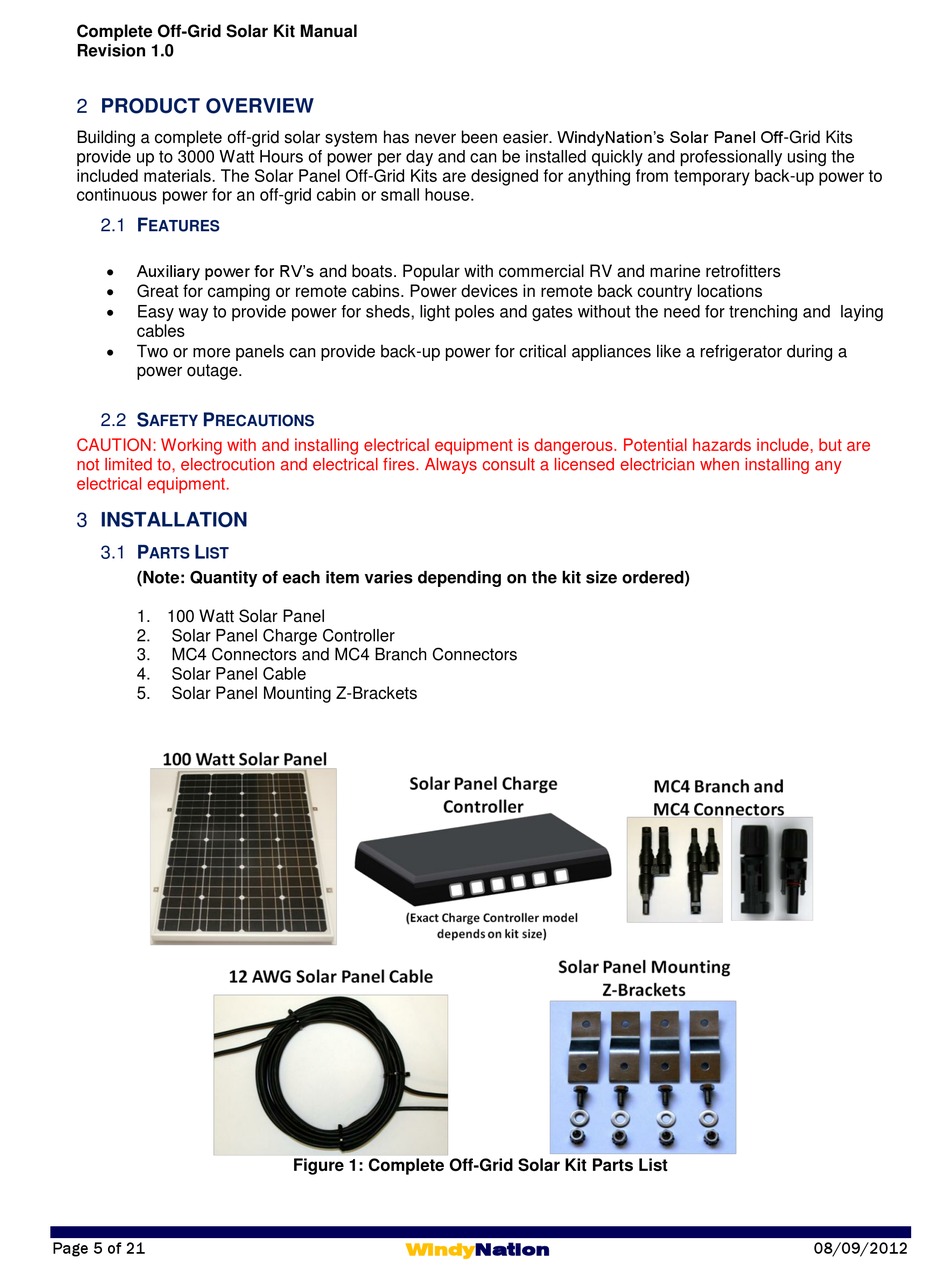

Figure 1: Complete Off-Grid Solar Kit Parts List
WindyNation
08/09/2012
