Advanced Features

Program override
Should you wish to temporarily override your current programmed
temperature, simply press the temp +/- buttons and adjust the
currently set temperature to your new value. This new value will
remain until the next program event begins.
Permanent Temperature override.
Should you wish the SMT-101 to maintain a constant set
temperature throughout the day and not automatically change the
set temperature, press and hold the "R" button until "Program
Running" is replaced in the LCD with "HOLD". The currently
displayed set temperature will be maintained continuously or until
the SMT-101 is turned off.
Vacation Hold
When you leave you home for extended periods of time you can
program your thermostat to be off, and automatically turn back on to
your programed values in a set number of days.
Press and hold the "P" button until the LCD shows the word
"Vacation", the clock will now show days for the vacation timer to
run. Tap the clock button to advance the days and tap the "P" button
to reduce the days you wish the thermostat to remain OFF before
resuming its programed events. Press the "R" button to cancel the
vacation timer and resume normal thermostat operation.
Anti freeze function
When your SMT-101 is switched OFF, to protect the home and
contents your SMT-101 will maintain a home temperature of 5c
automatically.

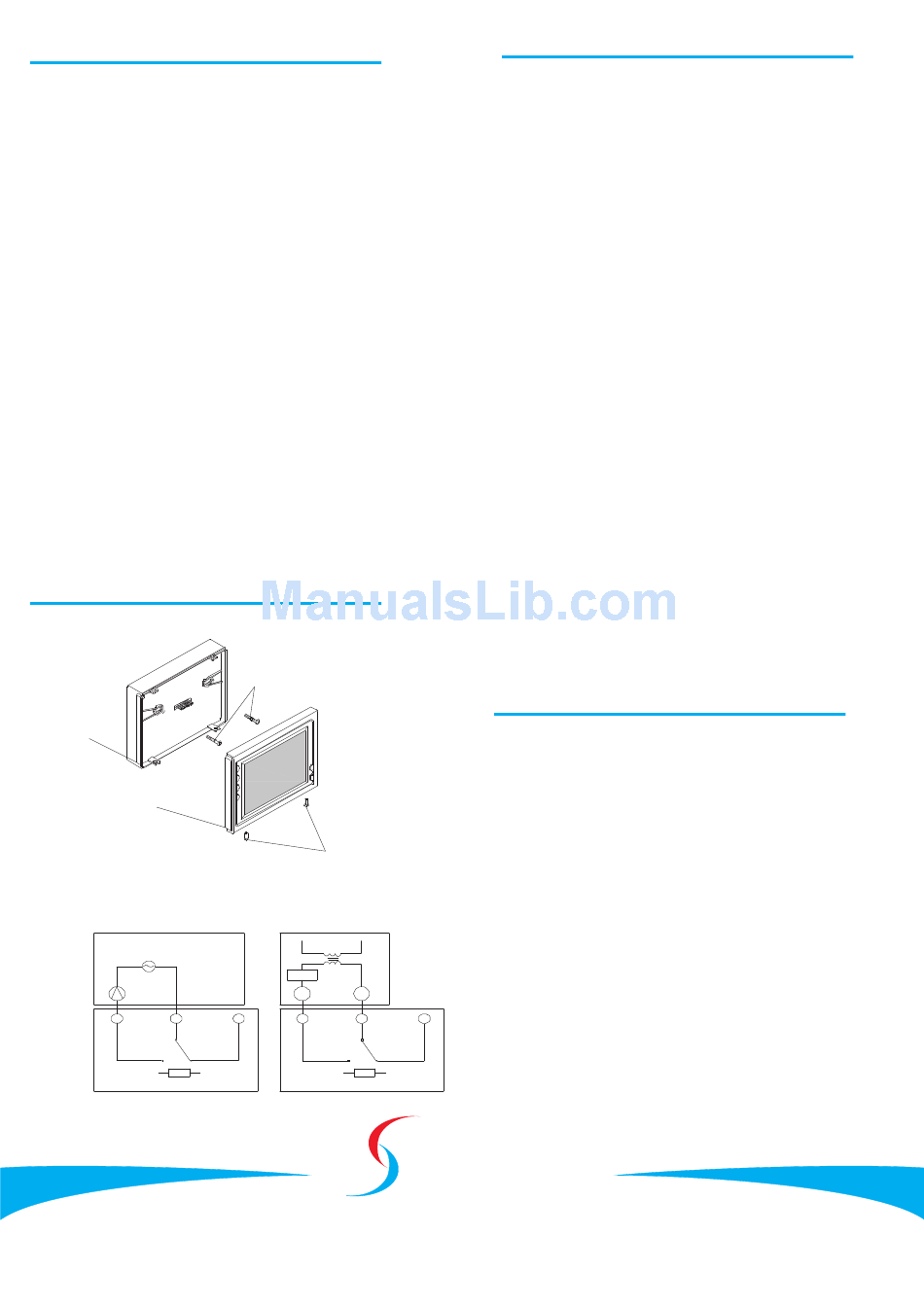

Installation
Bas e
Control pan el
Water Pump
23 0 VA C
P u m p o r v alv e
1 2
25 0 V AC 8A
Smart Temp Australia P/L
Screw for m ounting t herm osta t t o wall
Figure 3
Fixing scr ew
Gas Heater
2 30 V A C
R ela y
W R
T 1 T2
3 1 2
2 50 V A C 8A
Smart Temp
Another Quality Product from
20 / 1488 Ferntree Gully Road Knoxfield Vic 3180
www.thermostat.com.au
Due to continuous product improvement - specifications subject to change without notice.

Installer Options

There are a number of advanced functions that can be set in the
advanced installer menu. To enter this menu make sure the
thermostat is OFF by tapping the On/off button.
With the thermostat off press and hold the " P" program button.
The LCD will change to display the first adjustable value. These
values are adjusted with the temperature up and down buttons. To
advance through the settings tap the "P" button
01 Temperature Display Calibration.
This permits you to add or subtract up to 3 deg C from the room
temperature display if you think this value is incorrect.
02 Maximum permitted temperature.
This limits the maximum set temperature that the user can select.
Default value is 35
03 Minimum permitted set temperature.
This limits the lowest permitted set temperature that can be
adjusted. Default value is 5
04 Display type
This permits you to select deg C or deg F display.
default value is C.
05 Cycle rate.
You can select how quickly you wish the thermostat to respond to
room temperature changes, slowly (SL) or quickly (FA).
When fast is selected the room temp will be maintained to within 1
deg of the set temp. When slow is selected room temperature will
be maintained to within 3 deg of the set temperature.
Default value is FA (Fast)
06 Pump protection.
If using the SMT-101 on hydronic heating systems turning pump
protection on will run the pump for at least 15 seconds every 24
hours. Default is "00" Off. "PP" indicates that pump protection is
on.

Specifications

Power source
Maximum resistive load 230VAC 5A
Maximum inductive load 230VAC 2A
Relay contact
Contact
Set point range
Accuracy
Dimensions
Colour
3
Warranty
Phone (03) 9763 0094
www.smart-temp.com.au
2 AA size 1.5V alkaline battery
240VAC 8A
Voltage free
5℃ to ３５℃
±0.5℃
115mm×90mm×28mm
White
12 months from purchase.
Return to base
Fax (03) 9763 0098
