Page 3: Table Of Contents
Contents Introduction ......................................... 3 Apparatus description ....................................3 The apparatus ......................................4 Program keys with indication lights ................................4 The apparatus display ....................................5 reading ....................................5 Choosing a technical or a reading ..............................5 The technical reading ..................................5 The reset key ...................................... -
Page 4: Introduction
Introduction Congratulations with the choice you have made, in choosing a STREBEL S-HR heating apparatus. This can be an apparatus with or without hot water facility. While developing the STREBEL S-HR it has been taken into account that the apparatus adjusts and adapts itself to the required temperatures. - Page 5 The unit anticipates the heat required by the heating installation and/or hot water facility. By doing so a low as possible heat input is given for the required output. The apparatus is provided with an electrical ignition and energy saving pump start to prevent waste of energy. Furthermore the revolutions per minute of this circulation pump will adjust itself to the amount required by the installation.

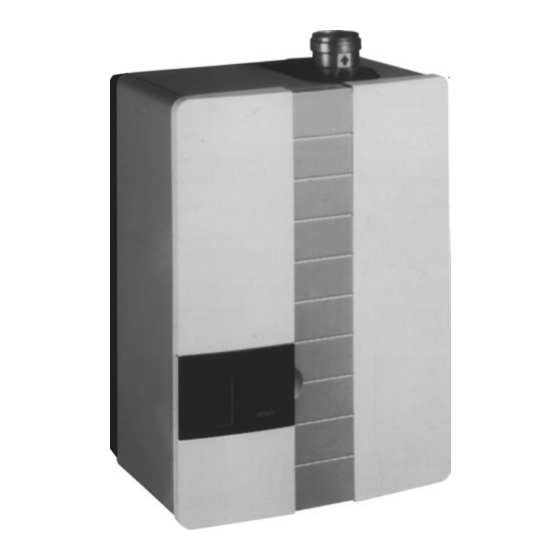

- Page 6 The apparatus The casing of the apparatus consists of metal and synthetic material which can be cleaned with a normal cleanser. At the left front side off the apparatus is a revolving door. You can already see a part of the control lights and the display through the dark transparant window. After opening the door, the control panel with the function keys is clearly visible.
-
Page 7: Program Keys With Indication Lights
Program keys with indication lights Press this key in order to turn on and off the central heating program. This program will become active when the key is pushed and the indication light is illuminated. In this case the apparatus will activate the burner when the room thermostat is calling for heat. Press this key in order to turn on and off the hot water program. -
Page 8: The Apparatus Display
The apparatus display The reading of the apparatus display can be done in two ways. reading display During this reading the display will only show what is necessary. Under normal circumstances the display will give a reading and if a fault is established this will be reflected with the E for error and a certain step number code. -
Page 9: The Technical Reading
The technical reading During this reading the display will show in which operating status the apparatus is active. The technical reading is being repeated display every 2 seconds by the reading of the waterpressure The first figure of the technical reading indicates the status in which the apparatus is active and the third and fourth figure indicate the water temperature of the apparatus. -
Page 10: Adjusting The Flow Water Temperature
Adjusting the flow water temperature For the user who has chosen the technical reading according to page 5 you can easily adjust the flow water temperature to his or her own wish. display In order to adjust the flow water temperature the following actions have to be taken. -
Page 11: Adjusting The Type Of Installation
Adjusting the type of installation The apparatus is designed in such a way that it will adjust itself automatically to what is necessary for a normal heating system. In some cases the installation may have convectors or complete underfloor heating. One can easily choose for the type of heating installation adjustments that belongs to the system such as maximum flow water temperature or for the warming up of the installation after a night period. -
Page 12: Replenishing Or Complete Filling Up Of The Installation
Replenishing or complete filling up of the installation The installation functions at an optimum water pressure of between 1 and 2 bar. If the step key is pushed briefly, the water pressure can be shown. After this the waterpressure is shown. When the step key is pushed again briefly one will return to the reading. -
Page 13: Operating Instructions S-Hr Serial Page 2
Operating instructions S-HR serial page... - Page 15 The company reserves the right to change the specifications and dimensions without prior notice. E. & O. E. Operating instructions S-HR serial page...
- Page 16 Your installator information: Name installator: Place of business: Person to be contacted: Telephone number: Telephone number after business-hours: 1F, Albany park industrial estate Frimley road, Camberley Surrey GU16 7BP Telephone: (01276) 685422 Fax: (01276) 685405...
