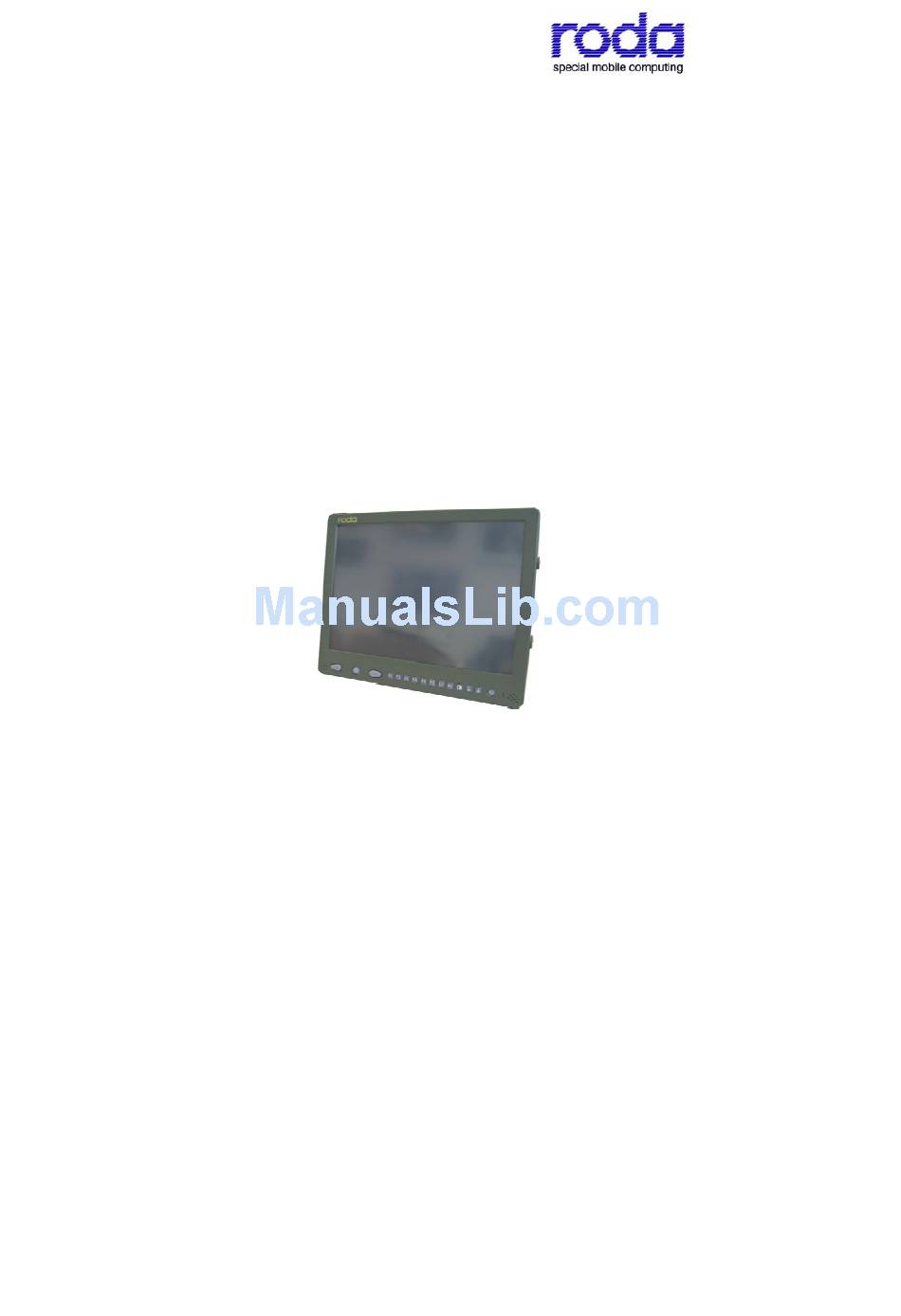

- Page 1 User’s Guide 15“ TFT display Type: DP860-UX Art. No.: 141023 • Landstraße 6 • 77839 Lichtenau/Baden roda computer GmbH Tel.:+49(0)72279579-0 • Fax:+49(0)72279579-20 • www.roda-computer.com...
- Page 2 Computer GmbH. roda computer GmbH reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.
- Page 3 EMC and Safety Notice Federal Comm. Commission Radio Frequency Interference Statement This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause interference to radio communications. This equipment has been tested and found to comply with Class B digital devices, pursuant to Part 15 of the FCC rules which are designed to provide reasonable protection against such interference when operated in a commercial or residential environment.
- Page 4 Recycling All materials used in the construction of this unit are recyclable or environmentally friendly. No CFC or related materials were used in the manufacturing process or inside the product. Please recycle the packing materials, and at the end of the unit’s life, all other materials in accordance with the local regulations.
-
Page 5: Table Of Contents
Content PREAMBLE ................6 VARIOUS PHOTOGRAPHS ..........7 2.1.1 COPE OF DELIVERY .............8 2.1.2 I/O P ORTS ................8 2.1.3 )........8 PERATOR EYBOARD KEYS 2.1.4 OSD M ................9 2.1.5 OLUME ...............9 2.1.6 ECHANICAL IMENSIONS ..........10 DESCRIPTION OF OSD MENU .........11 3.1.1 ETUP .................11 3.1.2 : PIP (P ) ........12... -
Page 6: Preamble
OPTION: Picture in Picture (PIP) Functionality The internalal electronic of DP860-UX is able to work up and show two signal sources at the same time. The electronic distinguishes between a primary screen (PS) and a secondary screen (SS). The... -
Page 7: Various Photographs
Various photographs View: keyboard with joystick View: frontside of display - 7 -... -
Page 8: Scope Of Delivery
2.1.1 Scope of delivery 1 ea. DP860-UX 1 ea. Installation CD for touchscreen 1 ea. User’s guide 2.1.2 I/O Ports Signal inputs rear side (from the left to the right): supply voltage input 3-pol VG96912A8-98 PN connector USB upstream/sound 9-pol-Sub-D socket... -
Page 9: Osd Menu
PC function key (USB) backlight off Display internal reduce display internal brightness enhance display internal brightness display/computer display internal on/off 2.1.4 OSD Menu The OSD operator keyboard is located on the top border of the electronic box (from the left to the right). Controlling happens with four quadratic keys: symbol of key function... -
Page 10: Mechanical Dimensions
2.1.6 Mechanical Dimensions - 10 -... -
Page 11: Description Of Osd Menu
Description of OSD Menu Press any key to reach the main menu of OSD. By pushing UP or DOWN you reach the submenu. You can activate the submenu by pushing ENTER. With ESC you can leave the menu. INFORMATION: OSD menu is switched off automatically 20 seconds after last input. -
Page 12: Option: Pip (Picture In Picture)
3.1.2 Option: PIP (Picture in Picture) function description SS_SOURCE choice of SS source: VGA, DVI, Video1, S Video1, Video2, S Video2 SIZE 1/1, ½, 1/3, ¼ , bei Video nur ½, 1/3, ¼. BORDER show red frame around PIP SWITCH switching on/off PIP LIMIT not activated... -
Page 13: Saturation
3.1.4 Saturation function description Default SATURATION Adjustment of screen saturation from 0 to 255 value 0 = black / white presentation 3.1.5 OSD Position function description OSD H POS shifting of OSD horizontal OSD V POS shifting of OSD vertical OSD AUTO centering of OSD ALPHA... -
Page 14: Option: System (Only With Pip/Video)
3.1.7 Option: System (only with PIP/video) function description PS_TRIPIXEL On/off PS Tripixel SS_TRIPIXEL On/off PS Tripixel (no function when executing without PIP/video) FILM On/off film Detection (no function when executing without PIP/video) MOTION On/off motion compensation (no function when executing without PIP/video) THRESHOLD Adjustment of level for position... -
Page 15: Adc (Only For Rgb Analogue)
PS_V_POS change of vertical position PS PS_H_CAP change of horizontal capture PS PS_V_CAP change of vertical capture PS 3.1.10 ADC (only for RGB analogue) function description PHASE adjustment of phase, from 0 to 31 CLOCK Adjustment of sampling rate in AD converter, sampling raite +/- 120 3.1.11 Save Mode... -
Page 16: Contrast
(as long as button is pushed) ENTER PIP function on/off DOWN digital brightness darker (not backlight) digital brightness brighter (not backlight) INFORMATION: Direct Key Mode can be adjusting as factory sample, if the DP860-UX is delivered together with the computer. - 16 -... -
Page 17: Technical Data
Technical Data Optical features • Light density: 255cd/m² (typ.) with touchscreen • contrast: 480:1 (typ.) • Response time ton+toff: 22ms (typ.) • Angle of view 10:1 r/l: 160° o/u: 160° (typ.) Resolution (TFT) 1.024x768 pixel (XGA), 16.7 Mio. colours or 256 shades of grey Display Standards VGA, SVGA, XGA max. - Page 18 Weight Max. 3,5 Kg Dimensions (without cables) 351mm x 300mm x 57mm (WxHxD) - 18 -...
-
Page 19: Cleaning And Maintenance
8 Repair Service If troubleshooting steps are unsuccessful, consult your dealer for service. If it is necessary to send in your computer for repairs, you can download a service waybill on the roda homepage (www.roda- computer.com), which you have to fill in. - Page 20 Shipping instructions: 1. Use original shipping container and packing materials, if possible. 2. If the original packing materials are not available, wrap the equipment with soft material then put the wrapped equipment into a hard cardboard shipping box. 3. Include this sheet with the following information: •...
- Page 21 Service address: Business hours: roda Service Center Monday – Thursday 08.30 – Bredenhop 20 12.30 D – 32609 Hüllhorst & 13.00 – 16.30 Tel.: +49/ 5744- 944 470 Fax.:+49/ 5744- 944 475 Friday 08.30 – E-Mail: support@roda- 12.30 computer com &...
- Page 22 - 22 -...
