Summary of Contents for Roda RD10 HB

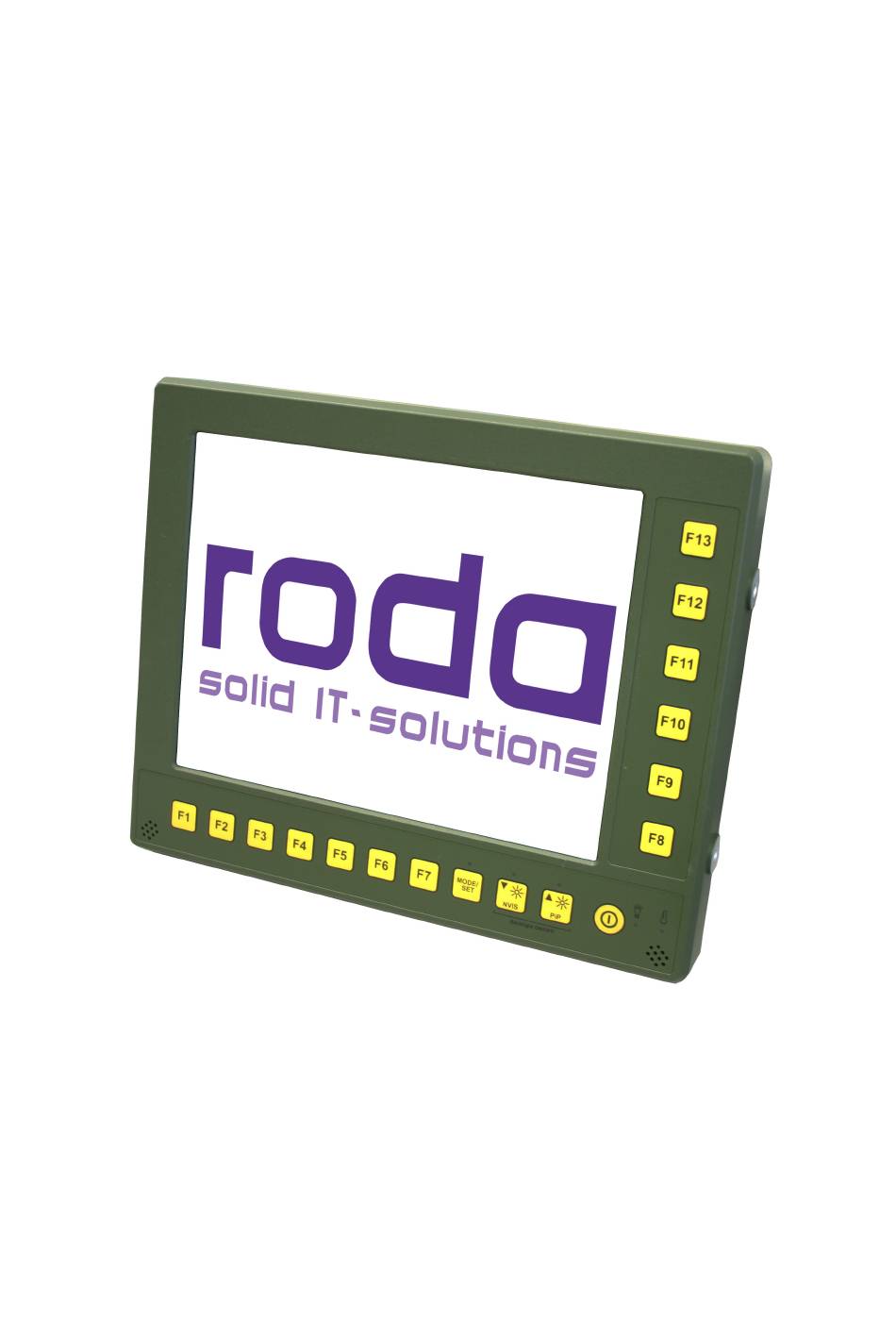

  • Page 1 RD10 HB Manual...
  • Page 2 RD10 HB Manual < This page is intentionally left blank > Page 2...
  • Page 3 RD10 HB Manual roda computer GmbH Landstrasse 6 77839 Lichtenau/Baden Germany Phone: +49(0)7227/9579-0 Fax: +49(0)7227/9579-20 roda Service Center Hüllhorst Hankamp 2 32609 Hüllhorst Germany Phone: +49(0)5744/944-470 Fax: +49(0)5744/944-475 Page 3...
  • Page 4 Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement of that product or its manufacturer. Copyright © 2014 roda computer GmbH, Lichtenau 2015-05-07 Revision: Version...
  • Page 5 Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. CE (with roda standard AC/DC converter) EN 55022 (CISPR 22 ) Radio Frequency Interference...
  • Page 6 RD10 HB Manual Environmental Information The equipment that you bought has required the extraction and use of natural resources for its produc- tion. It may contain hazardous substances for the health and the environment. In order to avoid dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take back systems.

  • Page 7: Table Of Contents

    RD10 HB Manual Table of content Introduction � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12 Scope of delivery .
  • Page 8 RD10 HB Manual 2.12.4 Inverting Invisible Mode function ............23 2.13...
  • Page 9 RD10 HB Manual Information (no input possible) ............. 37 Saturation .
  • Page 10 RD10 HB Manual < This page is intentionally left blank > Page 10...
  • Page 11 Introduction Page 11...

  • Page 12: Introduction

    Introduction Scope of delivery The RD10 HB display allows operation under extreme environmental conditions. All interfaces and slots are covered. The casing provides a maximum of protection against shock, vibration, dust and humidity. Technical details are listed in chapter „3 Specifications“.

  • Page 13: Overview

    RD10 HB Manual Overview 1.2 Overview 1.2.1 Front view Figure 2: Front view Function keys F1 - F7  MODE/SET key  Descrease brightness/NVI key  Increase brightness PiP key  ON/OFF button  Power LED  Heater LED ...

  • Page 14: Rear Side View

    Introduction RD10 HB Manual 1.2.2 Rear side view Figure 3: Rear side view 1.2.3 Connector panel Figure 4: Connector panel Position Description Function Type MIL DC-In +18V - +32V DC SJT00RT-08-98PN014  MIL Composite In PiP Signal input SJT00RT-10-35SN014 ...

  • Page 15: Right Side View

    RD10 HB Manual Overview 1.2.4 Right side view Figure 6: Right side view 1.2.5 Left side view Figure 7: Left side view Reduce volume  Increase volume  Please note: The left and right side mounting holes are M6x6 Helicoils.

  • Page 16: Upper Side View

     1.3 Commissioning • Remove the RD10 HB from the packaging and set it on a surface with the bottom side facing up. • If appropriate attach the RD10 HB to the fitting mounting solution. Screws (M6 for mounting) are not part of the standard RD10 HB scope of delivery.
  • Page 17 RD10 HB Manual Please note: You can find informations concerning power supply connectors for different countries in the annex. The video signal during POST can vary and may depend on BIOS settings of the signal source. Page 17...
  • Page 18 RD10 HB Manual < This page is intentionally left blank > Page 18...
  • Page 19 Components and Operation Page 19...

  • Page 20: Components And Operations

    2.4 Switching ON The RD10 HB is equipped with a power ON delay to avoid switching ON/OFF the display by accident. In order to switch ON the display, the power ON/OFF button must be pressed for approx. 5 seconds without interruptions.

  • Page 21: Brightness

    2.10 USB Interfaces The RD10 HB is equipped with an USB hub with 2 USB interfaces at the rear side to allow the use of ad- ditional peripheral devices like USB keyboards or USB sticks. The USB interfaces can’t be used to connect the touch screen or trackball to any external PC or notebook.

  • Page 22: Stereo Speakers

    2.12 Invisible Mode (manual or wire contact) The RD10 HB is equipped with a manual and wire contact triggered Invisible Mode function. With the help of this function the brightness of the display can immediately be set to a predefined value either via keystroke or wire contact trigger.

  • Page 23: Inverting Invisible Mode Function

    The device is now reset to factory defaults. 2.13 NVIS For operation together with IE NV goggles the RD10 HB can be switched into NVIS mode. The brightness of the display will be reduced to a very low, user defined value.

  • Page 24: Additional Controls

    ON/OFF remotely with the RD10 HB ON/OFF button. Please note: in this case the power ON/OFF delay of the RD10 HB is still in place. To shut ON/OFF the notebook the RD10 HB’s ON/OFF button must be pressed for approx. 5 seconds without interruption. Also the display itself can be shut ON/OFF with the ON/OFF button of the notebook (no delay circuit).

  • Page 25: Please Consider The Following When Using The Ac/Dc Adapter

    • Connect the C5 connector with the C6 power inlet of the adapter. • Plug AC plug of the AC line into the wall outlet. • Attach the DC plug to the DC-In connector of the RD10 HB, turn the lock ring clockwise to secure it. 2.18.1.3 AC/DC adapter power LED The green power LED indicates the AC/DC adapter is ready for operation.

  • Page 26: Picture In Picture (Pip)

    2.19 Picture in Picture (PIP) The RD10 HB offers a PIP function to process and display 2 video sources simultaneously. The primary display (PD) will show a DVI or VGA (RGB) signal, the secondary display (SD) will show the (composite) video signal.
  • Page 27 RD10 HB Manual Picture in Picture (PIP) Function Display Note Application PIP answers key (Step) sends key code code Field reduced ¼ PIP display [M,xpos,ypos] 176x133 Request PIP state Provides state foil keyboard Save settings All settings are saved Faulty characters Table 2: PIP overlay settings xpos = Position X-direction in pixel [0000…xxxx] without comma.
  • Page 28 Components and Operations RD10 HB Manual < This page is intentionally left blank > Page 28...
  • Page 29 Specifications Page 29...

  • Page 30: Specifications

    Specifications RD10 HB Manual Specifications 3.1 Display Component RD10 HB Size 10“ (25,4 cm) Resolution (size) XGA 1024 x 768 pixels 4:3 Brightness typ. 600 cd/m LED backlight Brightness (min) typ. 0.3 cd/m Contrast 900:1 Reaction time (ton + toff ) typ.

  • Page 31: Ac/Dc Adapter

    RD10 HB Manual Interfaces 3.2 AC/DC adapter Input: 100V ~ 240V AC, 1.2A, 50~60Hz Properties Output: 19V DC, 4.75A, max. 90W Dimensions (W x D x H): 130 x 60 x 34 mm Weight: approx. 430g Table 4: AC/DC adapter 3.3 Interfaces...

  • Page 32: X3 Mil Rd-Dvi

    Specifications RD10 HB Manual Signal Function not connected RS232 Data Input RS232 Data output RS232 Ground Table 6: Pinning X2 interface 3.3.3 X3 MIL RD-DVI Signal Function TDMS TX2 N Input TDMS TX2 P Input TMDS 2 GND Ground PWRSW...

  • Page 33: X4 Mil Vga (Rgb)

    RD10 HB Manual Interfaces Signal Function Ground TDMS CLK P Input TDMS CLK N Input Table 7: Pinning X3 interface 3.3.4 X4 MIL VGA (RGB) Signal Function Input Red GND Ground Green Input Green GND Ground Blue Input Blue GND...

  • Page 34: X5/6 Mil Usb

    Specifications RD10 HB Manual Signal Function reserved Reserve Table 8: Pinning X4 interface 3.3.5 X5/6 MIL USB Signal Function not connected USB VCC + 5 V DC Data N USB Data - Data P USB Data + not connected Ground Table 9: Pinning X5/6 interfaces 3.4 Environmental ratings...
  • Page 35 RD10 HB Manual Environmental ratings Item Description Shock According MIL-STD-810F, Method 516.5, Procedure I • 15 g, 3 ms 100 shocks, vertical, half sine • 100 g, 0.5 ms 3 shocks per axis, half sine • 25 g, 6 ms 3 shocks per axis, half sine...
  • Page 36 OSD Menu Page 36...

  • Page 37: Osd Menu

    RD10 HB Manual Information (no input possible) OSD Menu Please note: Pressing “Enter” and “right” buttons will reset the OSD settings to factory values. Press any OSD menu button to enter OSD main menu. The sub menus can be selected with the “left” and “right”...

  • Page 38: Saturation

    OSD Menu RD10 HB Manual Function Description Primary Screen Source, i.e. Video_1 Input timing Output window Secondary Screen Source, i.e. Video_1 Input timing Size Table 13: OSD information 4.3 Saturation Function Description Saturation Set saturation. Values: 0 – 255 Value 0 = black/white Table 14: OSD saturation 4.4 OSD Position...

  • Page 39: Firmware (No Input Possible)

    RD10 HB Manual ADC (only VGA (RGB) analog mode) 4.5 Firmware (no input possible) Function Description Version and date of firmware. Table 16: OSD Firmware 4.6 Gamma Function Description Default Gamma Set Gamma values. Values: off, 1 to 7 Table 17: OSD Gamma 4.7 Size...

  • Page 40: Save Mode

    OSD Menu RD10 HB Manual 4.9 Save Mode Function Description Save Mode Saves changes. Table 20: OSD Save Mode 4.10 Sharpness Function Description Default Sharpness Sharpness on/off. Table 21: OSD Sharpness 4.11 Contrast Function Description Default Contrast Set contrast. Values 0 – 255 Table 22: OSD Contrast 4.12 Brightness...
  • Page 41 OSD Menu RD10 HB Manual < This page is intentionally left blank > Page 41...
  • Page 42 OSD Menu RD10 HB Manual < This page is intentionally left blank > Page 42...
  • Page 43 Maintenance and Service Page 43...

  • Page 44: Maintenance And Service

    If the input of the touch screen is imprecise, the touch screen can be calibrated with the device driver’s calibration application. If the roda driver suite is used, the calibration application can be found in the start menu. Click “Start”  “All Programs”  “UDDP”  “Calibrate” and follow the instructions. For optimal touch screen operation the reading points should be touched as accurate as possible.

  • Page 45: Troubleshooting

    RD10 HB Manual Troubleshooting 5.3 Troubleshooting Should the display fail to function properly, the troubleshooting steps below may help to locate and solve the problem: • Check AC/DC adapter, battery and the power source. • Minimize the configuration, e.g., remove additional peripherals and devices.

  • Page 46: Service

    E-Mail: support@roda-computer.com If it is necessary to send your computer for repairs, you can download a service waybill (Service Supply Note) from the roda home page (www.roda-computer.com), which have to be filled in. 5.4.1 Service Supply Note Figure 11: Service Supply Note...

  • Page 47: Service Process

    4. If possible use the original packaging to send the device back to the Service Center. 5. Make sure the send the device back to the Service Center and not to any other site. Please note: The roda Service Center needs the serial number of the defective. Make sure to provide the serial number.
  • Page 48 Maintenance and Service RD10 HB Manual < This page is intentionally left blank > Page 48...
  • Page 49 Annex Page 49...

  • Page 50: Annex

    Annex RD10 HB Manual Annex Annex A: List of abbreviations Ampere (unit) Alternating Current Celsius (unit) Conformité Européenne Direct Current Europäische Gemeinschaft EIRP Equivalent Isotropic Radiated Power Electromagnetic compatibility European Norm Federal Communications Commission Gram (unit) GmbH Gesellschaft mit beschränkter Haftung...

  • Page 51: Annex B: Overview Of The Power Supply Connectors For Different Countries

    RD10 HB Manual Annex Annex B: Overview of the power supply connectors for different countries Version Country/region Technical data Europe 230V, 50Hz, 6A Switzerland 220V, 50Hz, 6A United Kingdom 240V, 50Hz, 6A Australia 240V, 50Hz, 6A North America 120V, 60Hz, 7A...

  • Page 52: Annex C: List Of Figures

    Annex RD10 HB Manual Annex C: List of figures Figure 1: Scope of delivery ................12 Figure 2: Front view .

  • Page 53: Annex D: List Of Tables

    RD10 HB Manual Annex Annex D: List of tables Table 1: Interfaces rear side ................14 Table 2: PIP overlay settings .
