  • Page 1: User Manual

    RD19 User Manual ————————————————————————— User Manual Display RD19 —————————————————————————...
  • Page 2 RD19 User Manual ————————————————————————— ————————————————————————— Page 2 of 52...
  • Page 3 RD19 User Manual ————————————————————————— roda computer GmbH Landstrasse 6 77839 Lichtenau/Baden Telefon: +49(0)7227/9579-0 Telefax: +49(0)7227/9579-20 roda Service Center Hüllhorst Hankamp 2 32609 Hüllhorst Telefon: +49(0)5744/944-470 Telefax: +49(0)5744/944-475 ————————————————————————— Page 3 of 52...
  • Page 4 (and not the manufacturer, its distributor, or its dealer), assumes the entire cost of all necessary servicing, repair and any incidental or consequential damages resulting from any software defects. Copyright © 2011 roda computer GmbH Lichtenau, 2011-02-11 Author: Christian Fessler Version History: Version...
  • Page 5 RD19 User Manual ————————————————————————— Trademark Acknowledgments All product and company names are trademarks or registered trademarks of their respective holders. ————————————————————————— Page 5 of 52...
  • Page 6 RD19 User Manual ————————————————————————— Conventions This manual is divided into individual chapter with interdependent contents. If you have experience with the use of computers and/or displays, you may skip individual chapters or directly look up the respective keywords. Pictures and tables are numbered consecutively.
  • Page 7 RD19 User Manual ————————————————————————— Regulatory information / Disclaimers Installation and use of this RD19 must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment.
  • Page 8 RD19 User Manual ————————————————————————— Note: Descriptions made in this manual are done for standard RD19. Depending on costumers configuration your device may vary. Products with the CE Marking comply with both the EMC Directive (2004/108/EC) and the Low Voltage Directive (2006/95/EC) issued by the Commission of the European Community.
  • Page 9 RD19 User Manual ————————————————————————— Note:  The equipment may still contain tiny amount of hazardous substances for health and environment, though those are below control level.  To avoid spreading such substances into the eco system, and to minimize the pressure on the environment, you are...

  • Page 10: Table Of Contents

    1.2.2 Rear view ................16 1.2.3 Connector panel ..............17 1.2.4 Left/right side view ..............18 Preparing the RD19 ............... 19 Components and Operations ..........22 Location ................. 22 Ruggedness ................22 Displays power supply ............22 2.3.1 AC/DC adapter ..............23 Power down ................
  • Page 11 RD19 User Manual Table of contents —————————————————————————— Menu Image Settings ............39 Menu Display Setting ............40 Menu Position Settings ............41 Menu OSD Settings ............... 41 Menü Setup ................42 Maintenance and Service ............44 Cleaning ................44 Troubleshooting..............44 Service ..................
  • Page 12 RD19 User Manual Table of contents —————————————————————————— ————————————————————————— Page 12 of 52...
  • Page 13 RD19 User Manual Getting Started —————————————————————————— Getting Started —————————————————————————— Page 13 of 52...

  • Page 14: Getting Started

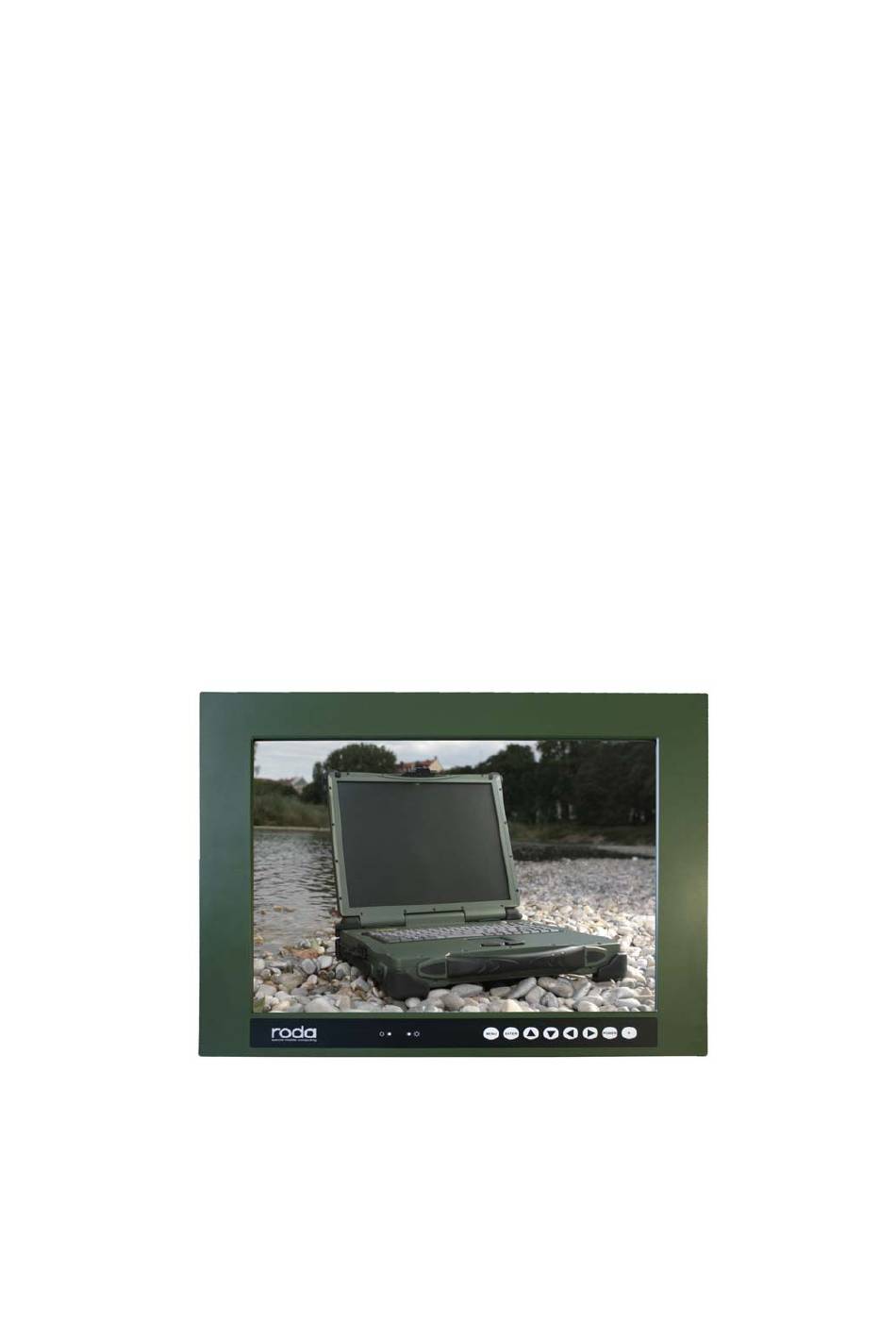

    —————————————————————————— Getting Started Introduction The 19“ display RD19 with a native SXGA Resolution of 1280 x 1024 pixels allows operation under extreme environmental conditions. It was designed according to MIL-STD 810F and offers maximum protection against shock, vibration, dust and humidity. You can find detailed information in chapter 3 Specifications.

  • Page 15: View

    7. Arrow down Button (navigates in OSD Menu) 8. Arrow left Button (navigates in OSD Menu) 9. Arrow right Button (navigates in OSD Menu) 10. Power Button (ON/OFF function) 11. Remote Button (Notebook ON/OFF); IMPORTANT: only with roda Notebook/Tablet and DVI cable. ————————————————————————— Page 15 of 52...

  • Page 16: Rear View

    RD19 User Manual Getting started —————————————————————————— Note: Outside OSD Menu you can use up/down arrows to select input source (DVI or VGA/RGB). 1.2.2 Rear view Figure 4: Rear view 1. Serial number label 2. Connector panel (check below) ————————————————————————— Page 16 of 52...

  • Page 17: Connector Panel

    RD19 User Manual Getting started —————————————————————————— 1.2.3 Connector panel 1 2 3 Figure 5: Connector panel 1. USB 1 2. Serial number label 3. USB2 4. Invisible Mode 5. Earthing screw 6. VGA (RGB) 7. RD-DVI 8. MIL DC-In (12V-32V); OPTIONAL: industrial connector 9.

  • Page 18: Left/Right Side View

    RD19 User Manual Getting started —————————————————————————— 1.2.4 Left/right side view Figure 6: View left/right 1. Openings for mounting (DIN M8) ————————————————————————— Page 18 of 52...

  • Page 19: Preparing The Rd19

    Connect the line cable with the power-supply unit and plug the plug into the electrical outlet. Plug the DC plug of the power- supply unit into the DC input of the RD19 and lock the connector well clockwise. OR ...
  • Page 20 RD19 User Manual Getting started —————————————————————————— The graphical output during POST can vary and depends on BIOS settings. It is possible that you need to boot up an operating system in order to use your display. Note:  If ambient temperature is below operating temperature, may not start immediately.

  • Page 21: Components And

    RD19 User Manual Components and Operations —————————————————————————— Components and Operations —————————————————————————— Page 21 of 52...

  • Page 22: Components And Operations

    RD19 User Manual Components and Operations —————————————————————————— Components and Operations Location A clean and moisture-free environment is preferred. Make room for air circulation. Avoid areas with:  Sudden or extreme changes in temperature.  Extreme heat.  Strong electromagnetic fields (near television set, motor rotation area, etc.).

  • Page 23: Ac/Dc Adapter

    RD19 User Manual Components and Operations —————————————————————————— 2.3.1 AC/DC adapter Figure 7: AC/DC adapter (design may vary) The enclosed mains adapter automatically adjusts to the line voltage of the respective country. Make sure you have the correct country-specific power-plug version (see Annex B).

  • Page 24: Components

    RD19 User Manual Components and Operations —————————————————————————— Components 2.5.1 USB HUB The integrated USB hub can manage the two USB interfaces. The hub can be connected with a PC using a RD-DVI interface. 2.5.2 Heater In environments with low temperatures, the heater can be useful to accelerate operational readiness.

  • Page 25: Touch Screen (Option)

    2.5.4 Touch screen (Option) The RD19 can be equipped with a USB touch screen. The touch screen can be operated with the use of a RD-DVI. Use a stylus pen to handle the touch screen. Operating the touch screen with your fingers may contaminate the touch screen und decrease the quality.

  • Page 26: Interfaces

    Components and Operations —————————————————————————— 2.5.5 Interfaces The standard RD19 display is equipped with several interfaces: 2 USB 2.0 interfaces. Those interfaces a standard USB 2.0 interfaces and are USB 1.1 compatible. Invisible Mode Next to the USB interfaces is the Invisible Mode interface. You can apply a wire to trigger Invisible Mode.
  • Page 27 RD19 User Manual Specifications —————————————————————————— Specifications —————————————————————————— Page 27 of 52...

  • Page 28: Specifications

    RD19 User Manual Specifications —————————————————————————— Specifications Display Component Display RD19 Size 19” (48,2 cm) Resolution (max.) SXGA 1280 x 1024 Pixel Pixel size 0.294 mm Luminance* typ. 350 cd/m ca. 230 cd/m with EMI + TS Contrast 1000:1 Reaction time...

  • Page 29: Ac/Dc Adapter (Option)

    RD19 User Manual Specifications —————————————————————————— 3.1.1 AC/DC adapter (Option) Features Input voltage: AC 100V ~ 240V 50/60Hz (47Hz~63Hz) Output voltage: DC 19V ± 1V, max. 90W Also complies with military power source 100V ~ 240V 400Hz Dimensions: 139.5mm x 62.8mm x 31.2mm...

  • Page 30: Interfaces

    RD19 User Manual Specifications —————————————————————————— Interfaces 3.2.1 DC-In (MIL) +24V Figure 10: DC MIL Machine side: Amphenol 62GB-12E08-33PN Mating plug: 62GB-56T08-33SN Pin assignment: Signal Description 24V DC Power supply 24V 24V DC Masse Note: 24V nominal voltage ————————————————————————— Page 30 of 52...

  • Page 31: Usb Interface 2X

    RD19 User Manual Specifications —————————————————————————— 3.2.2 USB Interface 2x Figure 11: USB interface Machine side: USB A jack Mating plug: USB A plug Pin assignment: Signal Description Power supply 5V Data - Data + Masse Table 4: USB Type A interface —————————————————————————...

  • Page 32: Vga Interface (Rgb)

    RD19 User Manual Specifications —————————————————————————— 3.2.3 VGA interface (RGB) Figure 12: VGA interface Machine side: Sub D-15 jack Mating plug: Sub D-15 plug Pin assignment: Signal Description Red* GREEN Green or Monochrome signal* BULE Blue* Ground Ground Ground Red Ground Green...

  • Page 33: Rd-Dvi

    RD19 User Manual Specifications —————————————————————————— 3.2.4 RD-DVI Figure 13: RD-DVI Machine side: dual link DVI jack Mating plug: dual link or single link DVI plug Pin assignment: Signal Description TX2- (R) Data 2 - TX2+ (R) Data 2 + Shielding Data 2,4...

  • Page 34: Invisible Mode

    RD19 User Manual Specifications —————————————————————————— Signal Description TX0+ (B) Data 0 + Shielding Data 0, 5 USB- USB Data - USB + USB Data + Shielding Clock TXC+ Clock + TXC- Clock - Ground Ground Table 6: RD-DVI 3.2.5 Invisible Mode...

  • Page 35: Environmental Rating

    RD19 User Manual Specifications —————————————————————————— Environmental rating 3.3.1 MIL-STD-810 Item Criteria Humidity According to MIL-STD-810G, Method 507.5, Procedure II Figure 507.5-7, Table 507.5-IX  Operating: (Aggravated) 24 hours/cycle, total of 10 cycles Between 30°C (86°F) and 60°C (140°F) with the relative humidity at 95%...

  • Page 36: Iec Ip

    RD19 User Manual Specifications —————————————————————————— 3.3.2 IEC IP Standard Parameter IEC 60529 IP5x Powder type: Talcum IP6x (front) Dust quantity: 2kg Dust-tight Chamber size: 1m³ Test duration: 8h IEC 60529 IPx4 Tube radius: 400mm IPx5 (front) Water flow: 1.8l/min Water spray (water jet)
  • Page 37 RD19 User Manual OSD Menu —————————————————————————— OSD Menu —————————————————————————— Page 37 of 52...

  • Page 38: Osd Menu

    RD19 User Manual OSD Menu —————————————————————————— OSD Menu By pressing the Menu Button you can activate the On Screen Display (OSD). The OSD enables you to set up your display. Those settings are independent from the signal source and are stored on the display itself.

  • Page 39: Osd Menu Overview

    RD19 User Manual OSD Menu —————————————————————————— OSD Menu Overview Figure 15: OSD Menu 1. Sub menu selection 2. Options of selected sub menu 3. Advanced Options (opens additional window, see 2.5.3) 4. Current value of option Menu Image Settings Figure 16: Display Menu —————————————————————————...

  • Page 40: Menu Display Setting

    RD19 User Manual OSD Menu —————————————————————————— You can control the image with the help of the „Image Settings“ menu. For example you can set brightness, saturation, contrast etc. You can change the brightness settings for standard and Invisible Mode in the advanced brightness settings menu.

  • Page 41: Menu Position Settings

    RD19 User Manual OSD Menu —————————————————————————— Menu Position Settings Figure 18: Position Settings Menu You can adjust the position of the picture in the Position Settings“ Menu. If you use VGA an auto adjustment option is available. Menu OSD Settings Figure 19: OSD Settings Menu You can change size and position of the OSD via the “OSD Settings”...

  • Page 42: Menü Setup

    RD19 User Manual OSD Menu —————————————————————————— Menü Setup Figure 20: Setup Menü With the help of the “Setup” Menu you can check current picture information and firmware version. You also can reset the options to factory values. ————————————————————————— Page 42 of 52...
  • Page 43 RD19 Bedienungsanleitung Anhang —————————————————————————— Maintenance and Service —————————————————————————— Page 43 of 52...

  • Page 44: Maintenance And Service

    RD19 Bedienungsanleitung Anhang —————————————————————————— Maintenance and Service Cleaning ALWAYS turn OFF the power, unplug the power cord and remove the battery before cleaning. The exterior of the system and display may be wiped with a clean, soft, and lint-free cloth. If there is difficulty removing dirt, apply non-ammonia, non-alcohol based glass cleaner to the cloth and wipe.

  • Page 45: Service

    Anhang —————————————————————————— Service If troubleshooting steps are unsuccessful, consult your dealer for service. If they can not help you please call roda Service Center. Service address: Service: roda Service Center Mon – Thu 8:30 am - 12:30 pm Hankamp 2 &...

  • Page 46: Service Supply Note

    RD19 Bedienungsanleitung Anhang —————————————————————————— 5.3.1 Service Supply Note: Figure 21: Service Supply Note Include this sheet with the following information:  Name  Address  Serial number, Customer number, Article number  Place and date of purchase or the original invoice number ...

  • Page 47: Downloads

    RD19 Bedienungsanleitung Anhang —————————————————————————— 5.3.2 Downloads Check our website (www.roda-computer.com) for downloads:  Updates  Drivers  Manuals  Service Supply Note ————————————————————————— Page 47 of 52...
  • Page 48 RD19 Bedienungsanleitung Anhang —————————————————————————— Annex ————————————————————————— Page 48 of 52...

  • Page 49: Annex

    RD19 Bedienungsanleitung Anhang —————————————————————————— Annex Annex A: List of abbreviations Ampere (unit) Alternating Current BIOS Basic Input Output System Celsius (unit) Compact Disk Candela (unit) Conformité Européene Cathode Ray Tube CVBS Colour Video Blanking Signal Direct Current D-sub D-subminature (Sub-D) Digital Visual Interface Elektro-Magnetische Verträglichkeit...

  • Page 50: Annex B: Table Of Power Supply Connectors For Different Countries

    RD19 Bedienungsanleitung Anhang —————————————————————————— Video Graphics Adapter Watt (unit) Annex B: Table of power supply connectors for different countries Version Country/region Technical data Europe 230V, 50Hz, 6A Switzerland 220V, 50Hz, 6A Great Britain 240V, 50Hz, 6A Australia 240V, 50Hz, 6A...

  • Page 51: Annex C: List Of Figures

    RD19 Bedienungsanleitung Anhang —————————————————————————— Annex C: List of figures FIGURE 1: DISPLAY ................14 FIGURE 2: FRONT VIEW ..............15 FIGURE 3: FOIL KEYBOARD .............. 15 FIGURE 4: REAR VIEW ..............16 FIGURE 5: CONNECTOR PANEL ............17 FIGURE 6: VIEW LEFT/RIGHT ............18 FIGURE 7: AC/DC ADAPTER (DESIGN MAY VARY) ......
  • Page 52 RD19 Bedienungsanleitung Anhang —————————————————————————— ————————————————————————— Page 52 of 52...
