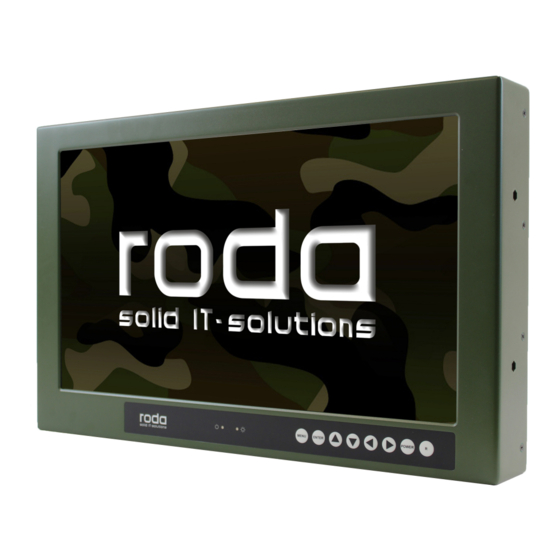

Summary of Contents for Roda RD22

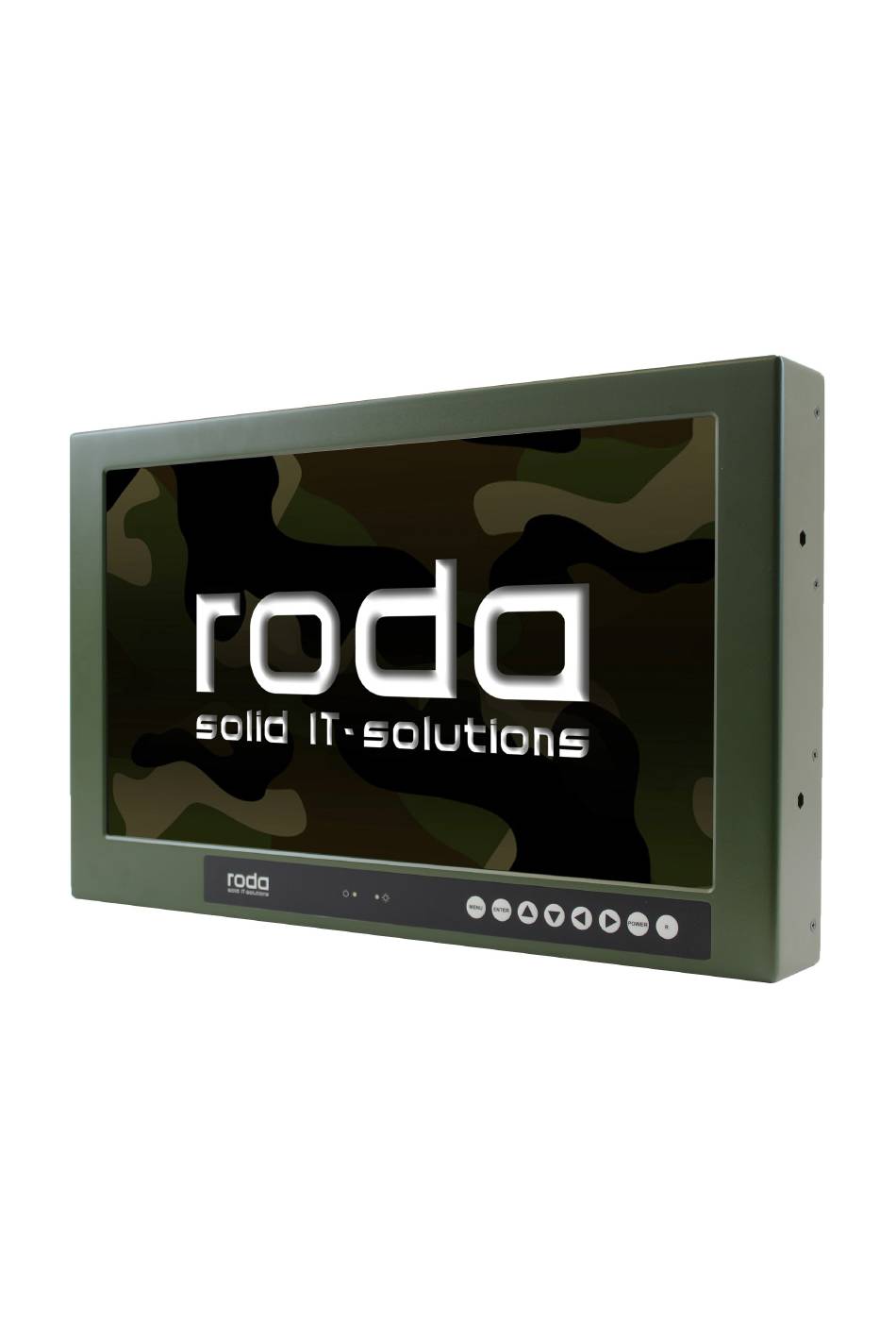

  • Page 1 RD22 Manual...
  • Page 2 RD22 Manual < This page is intentionally left blank > Page 2...
  • Page 3 RD22 Manual roda computer GmbH Landstrasse 6 77839 Lichtenau/Baden Germany Phone: +49(0)7227/9579-0 Fax: +49(0)7227/9579-20 roda Service Center Hüllhorst Hankamp 2 32609 Hüllhorst Germany Phone: +49(0)5744/944-470 Fax: +49(0)5744/944-475 Page 3...
  • Page 4 Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement of that product or its manufacturer. Copyright © 2016 roda computer GmbH, Lichtenau 2016-01-25 Revision: Version...
  • Page 5 Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. CE (with roda standard AC/DC converter) EN 55022 (CISPR 22 ) Radio Frequency Interference...
  • Page 6 RD22 Manual Environmental Information The equipment that you bought has required the extraction and use of natural resources for its produc- tion. It may contain hazardous substances for the health and the environment. In order to avoid dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take back systems.

  • Page 7: Table Of Contents

    RD22 Manual Table of content Introduction � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12 Scope of delivery .
  • Page 8 RD22 Manual 2.13 RD-DVI ..................21 Specifications �...
  • Page 9 RD22 Manual Troubleshooting ................43 5.3.1...
  • Page 10 RD22 Manual < This page is intentionally left blank > Page 10...
  • Page 11 Introduction Page 11...

  • Page 12: Introduction

    RD22 Manual Introduction Scope of delivery The RD22 display allows operation under extreme environmental conditions. The casing provides a maximum of protection against shock, vibration, dust and humidity. Technical details are listed in chapter „Specifications“. The following lists the standard scope of delivery for the display.

  • Page 13: Overview

    RD22 Manual Overview 1.2 Overview 1.2.1 Front view Figure 2: Front view Power LED (green = ON, red = power supply connected, flashing green/orange = no signal  source connected) Heater LED (green = Heater ready, red = Heater active) ...

  • Page 14: Rear Side View

    Introduction RD22 Manual Please note: The up & down arrow keys can be used to select the external signal source manually without entering the OSD menu. 1.2.2 Rear side view Figure 3: Rear side view 1.2.3 Connector panel Figure 4: Connector panel No�...

  • Page 15: Left/Right Side View

    RD22 Manual Overview No� Description Function Connector type USB 1 USB 2.0 Downstream USB A jack  USB 2 USB 2.0 Downstream USB A jack  VGA (RGB) VGA signal input SUB-D15 jack  Earthing screw Earthing screw DIN M8 ...

  • Page 16: Commissioning

    RD22 Manual 1.3 Commissioning • Remove the RD22 from the packaging and set it on a surface with the bottom side facing up. • If appropriate attach the RD22 to the fitting mounting solution. Screws (M6 for mounting) are not part of the standard RD22 scope of delivery.
  • Page 17 Components and Operation Page 17...

  • Page 18: Components And Operation

    To switch OFF the display, press the ON/OFF button. The display will switch OFF and the power LED goes out. 2.6 Display Panel The panel of the RD22 is a 16:9 1920 x 1080 FHD panel with typical 850 cd/m brightness, a contrast of 5000:1 and a LED backlight.

  • Page 19: Brightness

    2.9 USB Interfaces The RD22 is equipped with an USB hub with 2 USB interfaces at the rear side to allow the use of additional peripheral devices like USB keyboards or USB sticks. The USB interfaces can’t be used to connect the touch screen to any external PC or notebook. The touch screen can only be connected via RD-DVI.

  • Page 20: Invisible Mode (Manual Or Wire Contact)

    2.10 Invisible Mode (manual or wire contact) The RD22 is equipped with a wire contact triggered Invisible Mode function. With the help of this function the brightness of the display can immediately be set to a predefined value either via wire contact trigger.

  • Page 21: Connection The Ac/Dc Adapter

    • Connect the C5 connector with the C6 power inlet of the adapter. • Plug AC plug of the AC line into the wall outlet. • Attach the DC plug to the DC-In connector of the RD22, turn the lock ring clockwise to secure it. 2.12.1.3 AC/DC adapter power LED The green power LED indicates the AC/DC adapter is ready for operation.
  • Page 22 Components and Operation RD22 Manual < This page is intentionally left blank > Page 22...
  • Page 23 Specifications Page 23...

  • Page 24: Specifications

    Specifications RD22 Manual Specifications 3.1 Display Component RD22 Size 21.5” (54.61 cm) Resolution (size) FHD 1920 x 1080 pixels 16:9 Brightness typ. 850 cd/m LED backlight Contrast 5000:1 Reaction time (ton + toff ) typ. 16 ms Viewing angle typ. right/left 178°; up/down 178°...

  • Page 25: Interfaces

    RD22 Manual Interfaces 3.2 Interfaces 3.2.1 MIL DC-In Figure 7: MIL DC-In Connector type: 62IN-12E-10-2P-622 Mating plug: 62IN-16F-10-2S-622 Signal Function Type 18-32 V (24 V nominal) Input Ground Reference Shell Ground Reference Table 3: MIL DC-In Signal Function Type 230 V AC...
  • Page 26 Specifications RD22 Manual Connector type: DVI-I jack Mating plug: DVI-I plug Signal Function Type TX2 - (R) T.M.D.S Data 2 - Input TX2 + (R) T.M.D.S Data 2 + Input GND (R) Ground TX2 Reference PWR SW Power Switch (5 V DC)

  • Page 27: Vga

    RD22 Manual Interfaces Signal Function Type not connected Ground Reference Ground Reference Shell Ground Reference Table 5: Pinning RD-DVI 3.2.3 VGA Figure 9: VGA Connector type: Sub-D15 jack Mating plug: Sub-D15 plug Signal Function Type Red signal Input Green Green signal...

  • Page 28: Usb 2.0 2X

    Specifications RD22 Manual Signal Function Type BHSYNC H-Sync Input BVSYNC V-Sync Input Serial Clock Line Shell Ground Reference Table 6: Pinning VGA 3.2.4 USB 2.0 2x Figure 10: USB Connector type: USB A jack Mating plug: USB A plug Signal...

  • Page 29: Invisible Mode

    RD22 Manual Environmental ratings 3.2.5 Invisible Mode Figure 11: Invisible Mode Connector type: SJT00RT-08-35SN014 jack Mating plug: SJTG06RT-08-35P014 plug Signal Function Type +8.5 V Invisible Mode signal Output Ground Reference not connected Shell Ground Reference Table 8: Pinning Invisible Mode 3.3 Environmental ratings...
  • Page 30 Specifications RD22 Manual < This page is intentionally left blank > Page 30...
  • Page 31 OSD Menu Page 31...

  • Page 32: Osd Menu

    OSD Menu RD22 Manual OSD Menu Press the “Menu” button to access the OSD menu (see chapter „Front view“). With the help of the OSD menu the settings of the display itself can be adjusted. Those changes are independent of any settings of connected PCs and are saved in the OSD settings of the display itself.

  • Page 33: Image Settings Menu

    RD22 Manual Image settings menu Figure 12: Overview OSD menu Available sub menus  Options of the currently selected sub menu  Additional sub menu (opens additional window)  Adjustable value(s)  4.1 Image settings menu Figure 13: Image settings menu • Scheme: Switches between normal/sport/game/cinema/vivid preset values.

  • Page 34: Advanced Sub Menu

    OSD Menu RD22 Manual • Contrast: Allows <Contrast> adjustment in the Y domain. The modification affects all colour chan- nels and all input types and is a direct multiplication of the Y data after YUV black level adjustment. • Hue: Allows <Hue> adjustment in the UV domain. The modification affects all colour channels and all input types.

  • Page 35: Color Sub Menu

    RD22 Manual Image settings menu 4.1.2 Color sub menu Figure 15: Color sub menu (DVI) • Color Temp: Allow selection of different colour temperature schemes. Selections are user, sRGB, 4200K, 5000K, 5400K, 6500K, 7200K, 9300K. • User Color: If the user has a preference other than the pre-set colour temperatures, the menu be- low can be used to create a new colour scheme.

  • Page 36: Video Processing Sub Menu

    OSD Menu RD22 Manual • MPEG NR Mode: Enables/disables the MPEG NR Mode. • MPEG NR: Allows the user to manually set the level of MPEG noise reduction. Above settings might influence the display quality in a positive or negative way. Try some presets to find one with the best result.

  • Page 37: Display Settings Menu

    RD22 Manual Display Settings menu 4.2 Display Settings menu Figure 19: Display Settings menu • Aspect Ratio: Used to adjust display between full screen, panoramic, Letter Box Expand, Pillar Box and 1:1. • PIP: Opens additional sub menu. • Tilling: Opens additional sub menu.

  • Page 38: Tilling Sub Menu

    OSD Menu RD22 Manual 4.2.2 Tilling sub menu Figure 21: Tilling sub menu • Horizontal Total: Defines the total horizontal number of displays. • Vertical Total: Defines the total vertical number of displays. • Horizontal Position: Defines the horizontal position of the actual display unit.

  • Page 39: Osd Settings Menu

    RD22 Manual OSD Settings menu • Width: Adjusts total width of the image by stretching or shrinking. • Height: Adjusts total height of the image by stretching or shrinking. • Horizontal Start: Changes the starting point of the image horizontally, without altering height.

  • Page 40: Setup Menu

    OSD Menu RD22 Manual 4.5 Setup menu Figure 24: Setup menu • Factory Reset: This function can be used to load back factory-loaded values. • Speed Mode: In graphics mode, fast image transfer is supported. • Show Menu Of: Changes the menu between main image and PIP if the PIP mode is on.
  • Page 41 Maintenance and Service Page 41...

  • Page 42: Maintenance And Service

    If the input of the touch screen is imprecise, the touch screen can be calibrated with the device driver’s calibration application. If the roda driver suite is used, the calibration application can be found in the start menu. Click “Start”  “All Programs”  “UDDP”  “Calibrate” and follow the instructions. Depending on the used operating system, the calibration can also be performed with the calibration tool of the operating system itself.

  • Page 43: Troubleshooting

    RD22 Manual Troubleshooting 5.3 Troubleshooting Should the display fail to function properly, the troubleshooting steps below may help to locate and solve the problem: • Check AC/DC adapter, battery and the power source. • Minimize the configuration, e.g., remove additional peripherals and devices.

  • Page 44: Service

    E-Mail: support@roda-computer.com If it is necessary to send your computer for repairs, you can download a service waybill (Service Supply Note) from the roda home page (www.roda-computer.com), which have to be filled in. 5.4.1 Service Supply Note Figure 26: Service Supply Note...

  • Page 45: Service Process

    4. If possible use the original packaging to send the device back to the Service Center. 5. Make sure the send the device back to the Service Center and not to any other site. 5.5 Downloads On our home page www.roda-computer.com you can find the following links and downloads: • Updates • Device drivers • Utilities...
  • Page 46 Maintenance and Service RD22 Manual < This page is intentionally left blank > Page 46...
  • Page 47 Annex Page 47...

  • Page 48: Annex

    Annex RD22 Manual Annex Annex A: List of abbreviations Ampere (unit) Alternating Current Celsius (unit) Conformité Européenne Direct Current Europäische Gemeinschaft EIRP Equivalent Isotropic Radiated Power Electromagnetic compatibility European Norm Federal Communications Commission Gram (unit) GmbH Gesellschaft mit beschränkter Haftung...

  • Page 49: Annex B: Overview Of The Power Supply Connectors For Different Countries

    RD22 Manual Annex Annex B: Overview of the power supply connectors for different countries Version Country/region Technical data Europe 230V, 50Hz, 6A Switzerland 220V, 50Hz, 6A United Kingdom 240V, 50Hz, 6A Australia 240V, 50Hz, 6A North America 120V, 60Hz, 7A...

  • Page 50: Annex C: List Of Figures

    Annex RD22 Manual Annex C: List of figures Figure 1: Scope of delivery ................12 Figure 2: Front view .

  • Page 51: Annex D: List Of Tables

    RD22 Manual Annex Annex D: List of tables Table 1: Interfaces rear side ................15 Table 2: Display components .
