USB connector removal

1.
Remove the rear shield. See
2.
Disconnect the USB connector from the controller board.
3.
Remove the flatbed assembly. See
Note: Do not remove the flatbed covers, or any of the hinges. The flatbed only needs to be removed from
the print engine.
4.
Remove the operator panel from the flatbed
5.

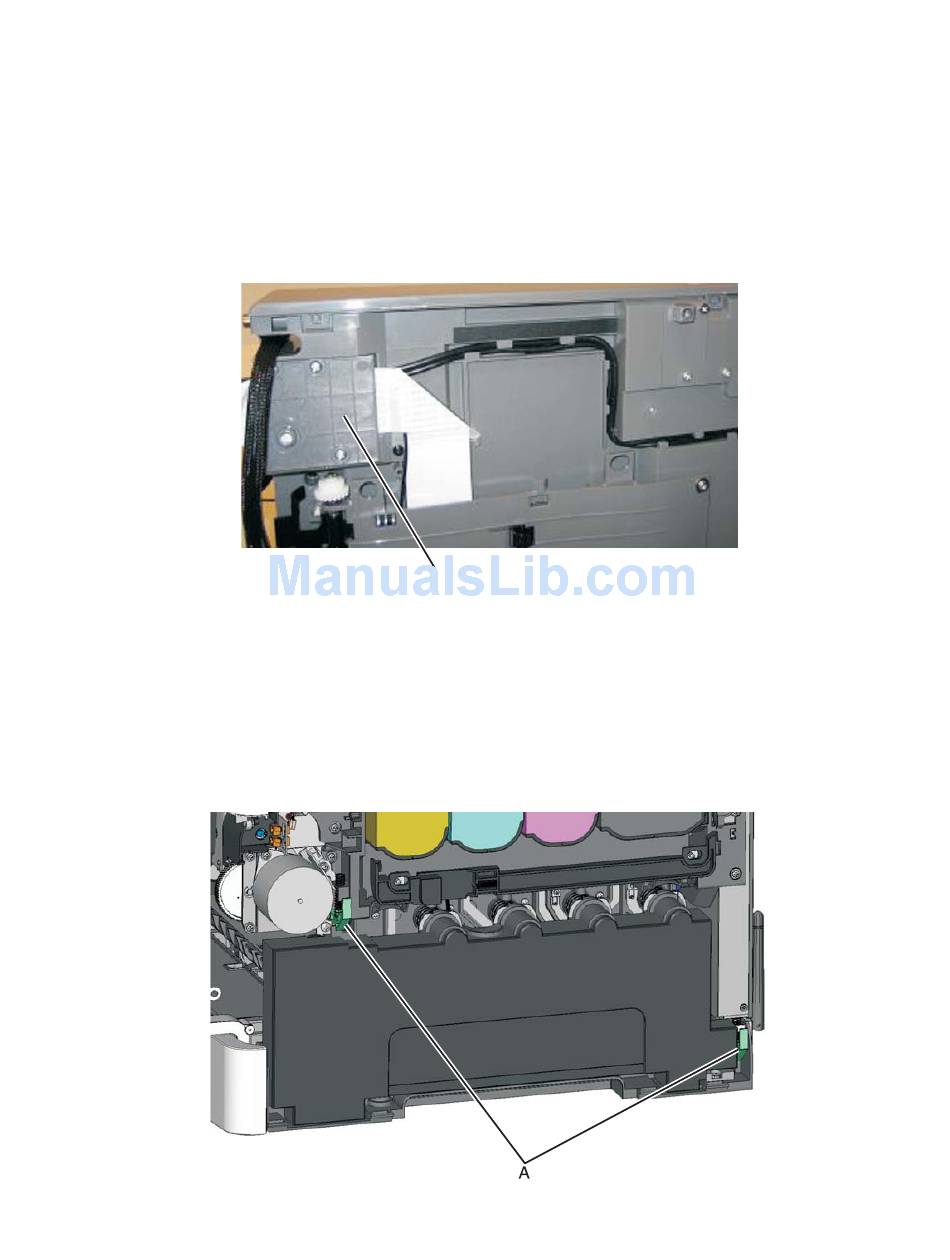

Remove the CCD ribbon cable cover (A), and route the USB cable out through the cable channel on the
flatbed unit.

Waste toner bottle

The waste toner bottle is a customer replaceable unit.
1.
Open the front cover.
2.
Lift the toner cover.
3.
Remove the right cover assembly. See
4.
press the two tabs (A) to release the waste toner bottle, and remove it.
"Rear shield removal" on page
"Flatbed removal" on page
assembly."Operator panel removal" on page
A
"Right cover removal" on page
4-7.
4-72.
4-7.
Repair information
7525-xxx
4-98.
4-67
