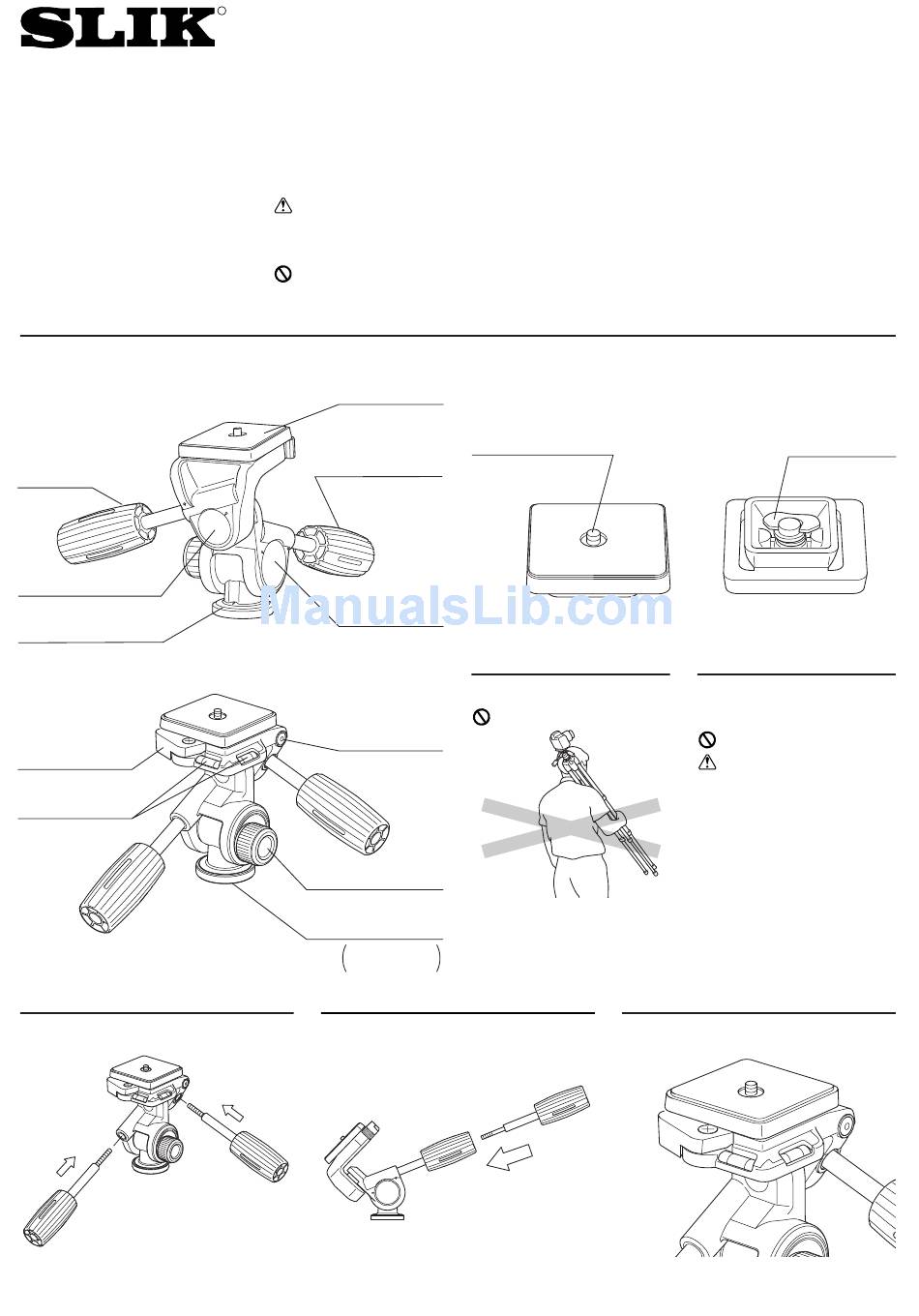

SLIK SH-806E Operating Instructions

J048
Components
Vertical tilt
handle
Horizontal tilt scale
Pan scale
Quick release
lock lever
Built-in level
Install the panhandle
Panhandle are installed as shown.
There is not difference in length between the
panhandle. Panhandle is installed in both side.
R SH-806E,807E

Operating Instructions

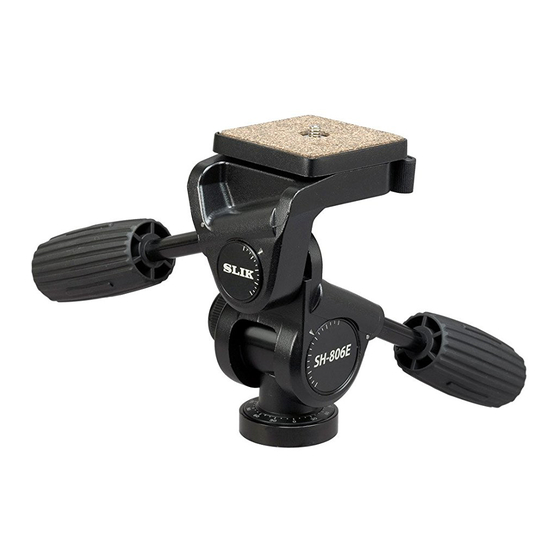

Thank you very much for choosing SLIK Pan head.
SLIK Corporation has designed your pan head to be a sturdy,
rugged, dependable product that will provide you with many years of
satisfactory use.
Please take a few moments to read this operating instruction careful-
ly before use so that you can take full advantage of your Pan head's
many fine features.
Retain this operating instruction in case you might want to refer back to it.
Caution
This caution icon refers to information pertaining to important safety
procedures in preventing injuries, or damages which may occur as a
result of mishandling this product.
Prohibition
This prohibited icon refers to information pertaining to prohibited con-
tents. Please refer to instructions closely to avoid accidents.
Camera mounting
plate
Pan & tilt handle
Tilt scale
Built-in level
Panning lock knob
Tripod mounting screw
SH-806E:U1/4"
SH-807E:U3/8"
Storage
Remove the vertical tilt handle from the
panhead, and screw into the back of the pan &
tilt handle.
Camera mounting screw
Carrying the tripod
Prohibition
Carrying a tripod with a camera
left on can result in unexpected
accidents. We therefore,
recommend you to remove your
camera while carrying the tripod.
Built-in level
Adjust the built-in level to fit into the middle.
Specification
SH-807E
Height 150 mm
(5 11/12")
Weight 1.0 kg
(2lbs 4oz)
Camera mounting screw U1/4
Tripod mounting screw U3/8
SH-806E
Height 134mm
(5 1/3")
Weight 0.7kg
(1lbs 9oz)
Camera mounting screw U1/4
Tripod mounting screw U1/4
Mounting wing nut
Equipment that can be
loaded on this pan head
Prohibited
Caution
This product has been designed to
handle equipment weighing under
5 kgs (11 lbs). Do not overload.
Some equipments weighing under
5 kgs (11 lbs), such as long lenses,
may not balance well due to its
weight distribution. In such case,
please use a larger Panhead.
