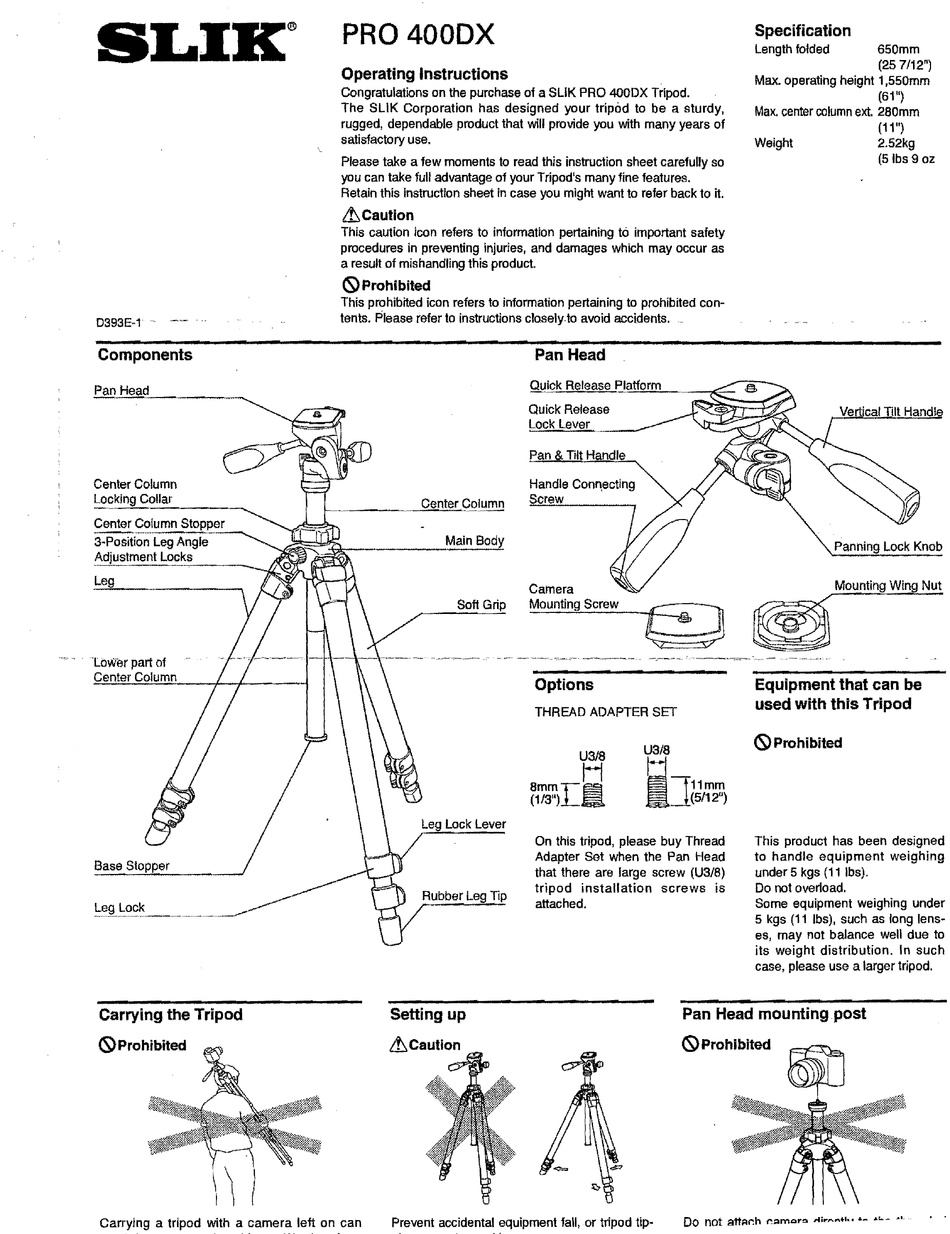

SLIK PRO 400DX Operating Instructions

Carrying the Tripod Setting up
Pan Head mounting.post
(S)
Prohibited
LtCaution
Carrying a tripod with a camera left on can Prevent accidental equipment fall, or tripod tip ­
(S)
Prohibited
PRO 400DX
Operating Instructions
Congratulations on the purchase of a SLiK PRO 400DX Tripod.
The SLIK Corporation has designed your tripod to be a sturdy,
rugged, dependable product that will provide you with many years of
satisfactory use.
Please take a few moments to read this instruction sheet carefully so
you can take full advantage of your Tripod's many fine features.
Retain this instruction sheet in case you might want to refer back to it.
LtCaution
This caution icon refers to information pertaining to important safety
procedures in preventing injuries, and damages which may occur as
a result of mishandling this product.
(S)
Prohibited
This prohibited icon refers to information pertaining to prohibited con ­
tents. Please refer to instructions closely to avoid accidents.
D393E-1
Specification
Length folded 650mm
(257/12")
Max. operating height
1
,550mm
(61")
Max.
center celumn
ext.
280mm
(11")
Weight 2.52kg
(5lbs 9 oz
Components
Pan Head
Center Cl>!umn
Main Body
Soft Grip
Leg Lock Lever
Rubber Leg Tip
Center Column
Lo~king
Co_I_la_r_ _ _ _.....
3-Position Leg Angle
Adjustment
L~~
Leg
"Lower part
of
Center Column
Base Stopper
Lock
Q!.Iick Release Platform
Quick Release
Lock Lever
Pan Tilt Handle
Handle Conn,ecting
Screw
Camera
~
Vertical Tilt Hand!
Mounting Win Nut
Pan Head
Options
THREAD ADAPTER SET
U3/8
H
E]11mm
8mmt~
II
(1/3")La
(5/12")
On this tripod, please buy Thread
Adapter Set when the Pan Head
that there are large screw (US/B)
tripod installation screws is
attached.
Equipment that can be
used with this Tripod
(S)
Prohibited
This product has been designed
to handle equipment weighing
under 5 kgs
(11
Ibs).
Do not overload.
Some equipment weighing under
5 kgs (11 Ibs), such as long lens ­
es, may not balance well due to
its weight distribution. In such
case, please use a larger tripod.
