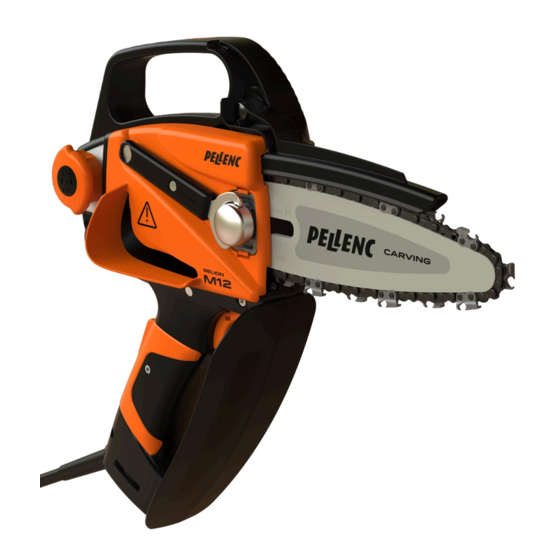

  • Page 1 Route de Cavaillon B.P. 47 84122 PERTUIS cedex (France) Tel : +33(0)4 90 09 47 00 Fax : +33(0)4 90 09 64 09 E-mail : pellenc.sa@pellenc.com www.pellenc.com Translation of the original user guide USER GUIDE 51_14_002A *Carving guide sold separately (ref. 80343)

  • Page 2: Table Of Contents

    OIL RESERVOIR ................27 «PELLENC SA» TERMS OF WARRANTY AND NON-RESPONSIBILITY CLAUSE ..... . . 28...

  • Page 3: Introduction

    INTRODUCTION Dear Customer, Thank you for purchasing the SELION M12 chainsaw. Correctly used and maintained, this tool will give satisfactory performance for years to come. With more than 20 years of experience in portable electric equipment, Pellenc proposes a large...
  • Page 4 - Balance system (patented): guarantees the balancing of the various battery components in order to optimise balanced operation - Power system (patented): enables use of the entire range of PELLENC tools within the scope of a professional activity thanks to the restitution of the battery’s maximum capacity...
  • Page 5 INTRODUCTION RECOMMENDED USE OF BATTERIES AND TOOLS ACCORDING TO THEIR POWER AND AUTONOMY* * Battery life depends on the tool, the use and the vegetation being worked on. ** Autonomy is calculated using the Eco mode Recommended use...
  • Page 6 Furthermore, the PELLENC technology motor is the only electric motor with as much power output with the added advantage of being small, giving it an ideal weight. The output of this motor is significantly higher than that of traditional direct-current motors with brushes.
  • Page 7 PELLENC is the only company to propose a full range of tools which are 100 % clean and with zero CO2 emissions thanks to the SOLERION solar panels which can be used to recharge our batteries.
  • Page 8 Orchard and green space pruning ULiB Battery shears 200 - 400 - 700 - 1100 - Chainsaw - 2 hands - POLY 5 - OLIVION SELION M12 TREELION D45 Orchard and green space pruning shears Blower TREELION M45 AIRION Brush Cutter...

  • Page 9: Bilan Carbone

    Thanks to the development of its own Lithium-Ion clean technology, PELLENC proposes ultra-high capacity batteries with a record level of autonomy and power to rival heat motors. In addition, the PELLENC motor makes the tool exceptionally profitable as it consumes very little energy and is unbeatably lightweight.

  • Page 10: Safety Instructions

    Refer to the «SAFETY INDICATIONS» heading in order to identify the location of the safety indications on the tool. No part of this manual may be reproduced without the written consent of PELLENC. The technical characteristics and the illustrations given in this manual are for information purposes and are in no way contractual.
  • Page 11 SAFETY INSTRUCTIONS WORK AREA SAFETY 1– Keep the work area clean and well lit. Cluttered or dark areas invite accidents . 2– Do not operate power tools in an explosive atmosphere, for example in the presence of flammable liquids, gases, or dust. Power tools create sparks, which can ignite dust or fumes . 3–...

  • Page 12: Safety Instructions For The Chainsaw

    . MAINTENANCE AND UPKEEP 1– Have the tool serviced by an authorised PELLENC distributor, using only identical spare parts. This will guarantee that the tool safety is maintained . SAFETY INSTRUCTIONS FOR THE CHAINSAW 1–...

  • Page 13: Causes Of Kickback And How The User Can Prevent It

    The second safety feature is provided by the tool’s auto-diagnostic system: on first use, the Selion M12 verifies that the electronic kickback sensor is operational, if this is the case, the machine will be able to...

  • Page 14: Safety Equipment

    „ Keep your left arm straight for better control. „ Hold the chainsaw at your side, and not in front of you. „ Use Pellenc genuine chains and guides. „ Keep the chain, the guide and the sprocket in good working condition.

  • Page 15: Safety Indications

    SAFETY INDICATIONS 51_10_012B 1– Sound power level LwA warranted 2– Read the user manual 3– Goggles, hearing protectors and helmets must be worn 4– Suitable fore-arm, leg and foot protection is mandatory 5– Risk of burns (motor) 6– Do not expose to rain...

  • Page 16: Description And Technical Characteristics

    According to use and battery type Chain oil reservoir capacity 7 cm Useful cutting length / chain guide 15 cm (6’’) / specific to Pellenc Chain Type / Pitch / Gage 25AP / 6.35 mm (1/4’’) / 1.3 mm (0.05’’) Sprocket 9 teeth 1/4’’...

  • Page 17: Putting The Tool Into Service

    CHAIN LUBRICATING SYSTEM Reasonable oil consumption! Oil consumption has been significantly reduced by the electronic control of the oil flow. This is a PELLENC innovation. 1– Use special guide and chain oil (ref. 85920). 2– Carefully pour the guide and chain oil into the reservoir.

  • Page 18: Starting

    1 to 2 minutes. Check the chain tension after running in (see page 20). The tool is equipped with a Pellenc-designed electric motor. The motor maintains a constant speed, both off load and when cutting. Allow the chainsaw to cut without pressing excessively.

  • Page 19: Starting And Use

    You can permanently lock it in position using the retractable wrench (PELLENC innovation). The automatic chain tensioning along with the PELLENC retractable wrench can also be used to retighten the guide in a few seconds: no need for additional wrenches! 51_09_014A Make sure that the chain tension is correct by pulling the chain.

  • Page 20: Installing The Chain Guide

    Simplified chain maintenance! No need for an additional wrench to remove and reinstall the chain, PELLENC’s innovative retractable wrench system can be used to tighten the chain in a few seconds. Loosen the chain guard (10) nut by 3 turns.

  • Page 21: Checking And Replacing The Sprocket

    STARTING AND USE Adjust the tension as often as necessary. Check the tension by pulling the chain in the middle of the guide: 1 to 3 drive links should appear. 51_09_014A CHECKING AND REPLACING THE SPROCKET Remove the chain guide and the chain. Remove the circlip and remove the sprocket.

  • Page 22: The Four Basic Rules

    STARTING AND USE THE FOUR BASIC RULES „ RULE No. 1 The chain must be correctly tensioned. See page 20 51_07_021A „ RULE No. 2 The chain must be well lubricated. Constant lubrication of the guide, the chain and the sprocket is vital.

  • Page 23: Servicing

    SERVICING CLEANING Keep the tool clean by cleaning it frequently using a damp cloth and compressed air. Pay particular attention to the parts in contact with the wood (chain, guide). 51_09_019A CAUTION: Never use solvents (Trichlorethylene, White Spirit, gasoline, etc) to clean the tool. SERVICING INTERVALS Visual check of the tool Functional check of the safety trigger...

  • Page 24: Replacing The Chain And The Guide

    Before working on the tool, check that the On / Off switch is in the off position «0» and disconnect the battery power lead. 51_08_016A WARNING: Never use a chain or a guide other than that specified by PELLENC, otherwise there is a risk of personal injury.

  • Page 25: General Instructions For Sharpening The Cutters

    GENERAL INSTRUCTIONS FOR SHARPENING THE CUTTERS SHARPENING THE CUTTERS USING A ROUND FILE „ As shown on the diagram, place a file holder on the top Direction to be followed platen and the depth limiter of the cutter. File holder =1/5 of the Ø...

  • Page 26: Adjusting The Depth Limiters

    „ Check the depth limiters again. If the depth limiters need adjusting again, follow the instructions on page 26. Note: Do not file the top of the drive links or the side links fitted with an anti-kickback guard. ADJUSTING THE DEPTH LIMITERS Sharpening kit P/No.

  • Page 27: Maintenance

    „ After reducing the height of the depth limiters, round off the angle to maintain the original shape of the depth limiters. Note: On chains with drive links equipped with anti- kickback guards, it may be necessary to take the chain out of the guide in order to file the depth limiters correctly.

  • Page 28: Pellenc Sa» Terms Of Warranty And Non-Responsibility Clause

    As concerns parts or equipment that are not manufactured by PELLENC sa, in particular ball screw, battery, etc., the warranty is limited to that of the suppliers to PELLENC sa. Normal wear parts worn out as the result of use are never under warranty.

  • Page 29: Ec" Declaration Of Conformity

    "EC" DECLARATION OF CONFORMITY MACHINES DIRECTIVE 2006/42/CE, APPENDIX IIA. (ONLY CONCERNS EUROPE) MANUFACTURER PELLENC S.A. ADDRESS QUARTIER NOTRE-DAME ROUTE DE CAVAILLON - B.P. 47 84122 PERTUIS CEDEX (FRANCE) PERSON/ENTITY AUTHORISED TO COMPILE THE TECHNICAL PELLENC S.A. DOSSIER ADDRESS QUARTIER NOTRE-DAME ROUTE DE CAVAILLON - B.P.
