Summary of Contents for ASROCK IMB-380-D

  • Page 1: User Manual

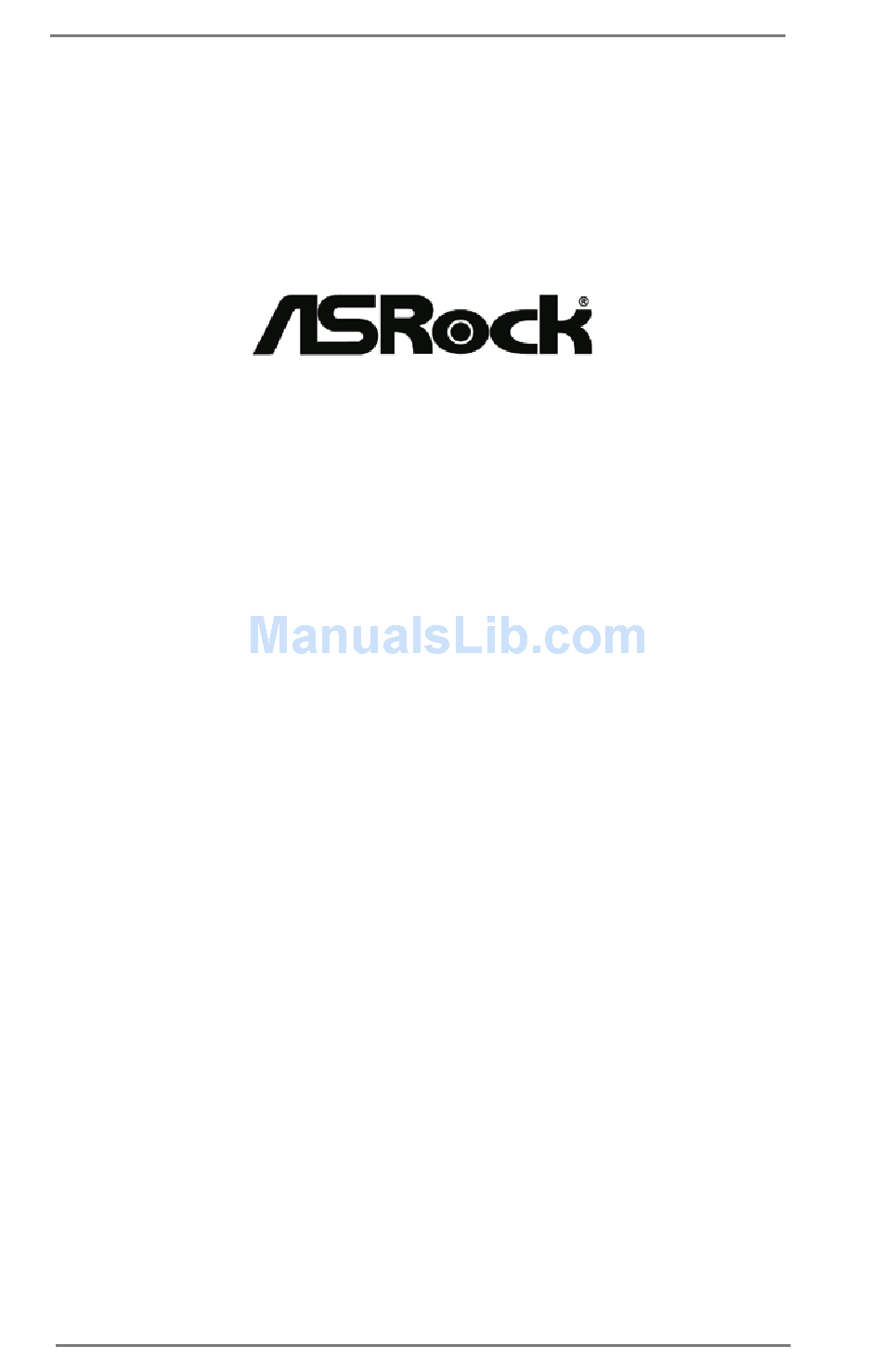

    IMB-380-D IMB-380-L User Manual Version 1.0 Published July 2013 Copyright©2013 ASRock INC. All rights reserved.

  • Page 2: Copyright Notice

    (including damages for loss of proits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.

  • Page 3: Table Of Contents

    1 Introduction ............5 1.1 Package Contents ............5 1.2 Speciications (IMB-380-D) ..........6 1.3 Speciications (IMB-380-L) ..........8 1.4 Motherboard Layout (IMB-380-D / IMB-380-L) ....10 1.5 I/O Panel (IMB-380-D) ........... 12 1.6 I/O Panel (IMB-380-L) ............ 13 2 Installation ............14 2.1 Screw Holes ..............
  • Page 4 4 Software Support ..........47 4.1 Install Operating System ..........47 4.2 Support CD Information ..........47 4.2.1 Running Support CD ..........47 4.2.2 Drivers Menu ............47 4.2.3 Utilities Menu............47 4.2.4 Contact Information ..........47...

  • Page 5: Introduction

    In case any modiications of this manual occur, the updated version will be available on ASRock website without further notice. You may ind the latest VGA cards and CPU support lists on ASRock website as well. http://www.asrock.com ASRock website If you require technical support related to this motherboard, please visit our website for speciic information about the model you are using.

  • Page 6: Speciications (Imb-380-D)

    1.2 Speciications (IMB-380-D) Form Dimensions Micro-ATX (9.6-in x 9.6-in) Factor Core i7/i5/i3/Celeron ® Socket LGA1150 for Intel (Haswell) Core (By CPU, Max 4) Processor Number Max Speed (By CPU) System (By CPU) L3 Cache Chipset BIOS UEFI 1 (Full Size + USB 2.0)
  • Page 7 6 (4 x USB 3.0 compliant, 2 x USB 2.0 compliant) 3 (Mic-In, Line-Out, Line-In) Audio 2 (RS-232/422/485) Serial PS/2 1 (Combo) - 6 (USB 2.0 compliant) - 1 Vertical Type A USB Connector LVDS/ Inverter 4 (RS-232) Serial SATA 4 x SATA3 (6.0Gb/s), Supports RAID0/1/5 Internal mPCIe...

  • Page 8: Speciications (Imb-380-L)

    1.3 Speciications (IMB-380-L) Form Dimensions Micro-ATX (9.6-in x 9.6-in) Factor Core i7/i5/i3/Celeron ® Socket LGA1150 for Intel (Haswell) Core (By CPU, Max 4) Processor Number Max Speed (By CPU) System (By CPU) L3 Cache Chipset BIOS UEFI 1 (Full Size + USB 2.0) Mini-PCIe mSATA Expansion...
  • Page 9 6 (4 x USB 3.0 compliant, 2 x USB 2.0 compliant) 3 (Mic-In, Line-Out, Line-In) Audio 2 (RS-232/422/485) Serial PS/2 1 (Combo) - 6 (USB 2.0 compliant) - 1 Vertical Type A USB Connector LVDS/ Inverter 4 (RS-232) Serial SATA 4 x SATA3 (6.0Gb/s), Supports RAID0/1/5 Internal mPCIe...

  • Page 10: Motherboard Layout (Imb-380-D / Imb-380-L)

    1.4 Motherboard Layout (IMB-380-D / IMB-380-L) 2 3 4 24.4cm (9.6 in) BLT_VOL1 BLT_PWM1 BKT_PWR1 CPU_FAN1 CPU_FAN2 LVDS1 PNL_PWR1 BLT_PWR1 BUZZ1 USB 3.0 Top: T: USB0 RJ-45 B: USB1 USB 2.0 CHA_FAN2 T: USB2 B: USB3 COM5 COM6 CHA_FAN1 USB 3.0...
  • Page 11 1* : LVDS Panel Connector (For IMB-380-L only) 2 : Backlight PWM Header 3 : Inverter Power control Wafer 4 : Backlight & Amp Volume Control 5 : 8-pin ATX Power Input Connector 6 : Backlight Power Selection 7 : Panel Power Selection 8 : 3-Pin CPU FAN Connector 9 : 4-Pin CPU FAN Connector 10 : Buzzer...

  • Page 12: I/O Panel (Imb-380-D)

    1.5 I/O Panel (IMB-380-D) COM Port (COM1) Microphone (Pink) COM Port (COM2) USB 3.0 Ports (USB_45) LAN RJ-45 Port HDMI Port (HDMI1) USB 2.0 Ports (USB23) USB 3.0 Ports (USB_01) LAN RJ-45 Port DVI Port (DVI1) Line In (Light Blue)

  • Page 13: I/O Panel (Imb-380-L)

    1.6 I/O Panel (IMB-380-L) COM Port (COM1) Microphone (Pink) COM Port (COM2) USB 3.0 Ports (USB_45) LAN RJ-45 Port HDMI Port (HDMI1) USB 2.0 Ports (USB23) USB 3.0 Ports (USB_01) LAN RJ-45 Port VGA Port (VGA1) Line In (Light Blue) PS/2 Mouse/Keyboard Port Line out (Lime) * There are two LED next to the LAN port.

  • Page 14: Installation

    Chapter 2: Installation This is a Micro ATX form factor (9.6” x 9.6”, 24.4 x 24.4 cm) motherboard. Before you install the motherboard, study the coniguration of your chassis to ensure that the motherboard its into it. Make sure to unplug the power cord before installing or removing the motherboard.

  • Page 15: Installation Of Memory Modules (Dimm)

    2.3 Installation of Memory Modules (DIMM) This motherboard provides four 240-pin DDR3 (Double Data Rate 3) DIMM slots, and supports Dual Channel Memory Technology. For dual channel coniguration, you always need to install identical (the same brand, speed, size and chip-type) DDR3 DIMM pairs. It is unable to activate Dual Channel Memory Technology with only one or three memory module installed.

  • Page 17: Expansion Slots

    2.4 Expansion Slots (PCI, PCI Express, mini-PCIe and mini- SATA Slots) There are 2 PCI slots, 2 PCI Express slots, 1 mini-PCIe slot and 1 mini-SATA slot on this motherboard. PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI interface.

  • Page 18: Jumpers Setup

    2.5 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”...
  • Page 19 Digital Input / Output Power select 1-2 : +12V 2-3 : +5V (3-pin JGPIO_PWR1) (see p.10, No. 20)

  • Page 20: Onboard Headers And Connectors

    2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard! LVDS Panel Connector Signal Name Signal Name (40-pin LVDS1)
  • Page 21 CPU Fan Connectors Please connect the CPU fan FAN_SPEED_CONTROL (4-pin CPU_FAN1) cable to the connector and CPU_FAN_SPEED +12V (see p.10 No. 9) match the black wire to the ground pin. Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin CPU fan still can work successfully even without the fan speed control function.
  • Page 22 Digital Input / Output Pin Header PIN Signal Name PIN Signal Name (10-pin JGPIO1) SIO_24 SIO_20 (see p.10, No. 19) SIO_25 SIO_21 SIO_26 SIO_22 SIO_27 SIO_23 JGPIO_PWR1 10 System Panel Header This header accommodates PLED+ PLED- several system front panel (9-pin PANEL1) PWRBTN# functions.
  • Page 23 SATA3 Connectors These four Serial ATA3 (SATA3) SATA_1 SATA_5 connectors support SATA data (SATA_1: see p.10, No. 28) (SATA_2: see p.10, No. 27) cables for internal storage SATA_6 SATA_2 devices. The current SATA3 (SATA_5: see p.10, No. 25) interface allows up to 6.0 Gb/s (SATA_6: see p.10, No.

  • Page 24: Tpm Header

    ATX 12V Power Input Connector Please connect an ATX 12V (8-pin ATX12V1) power supply to this connector. (see p.10, No. 5) Though this motherboard provides 8-pin ATX 12V power connector, it can still work if you adopt a traditional 4-pin ATX 12V power supply. To use the 4-pin ATX power supply, please plug your power supply along with Pin 1 and Pin 5.

  • Page 25: Driver Installation Guide

    Driver Installation Guide To install the drivers to your system, please insert the support CD to your optical drive irst. Then, the drivers compatible to your system can be auto-detected and listed on the support CD driver page. Please follow the order from top to bottom to install those required drivers.

  • Page 26: Uefi Setup Utility

    Chapter 3: UEFI SETUP UTILITY 3.1 Introduction This section explains how to use the UEFI SETUP UTILITY to conigure your system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer. Please press <F2>...

  • Page 27: Navigation Keys

    3.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor left or right to select Screens Moves cursor up or down to select items + / - To change option for the selected items To bring up the selected screen <Enter>...

  • Page 28: Advanced Screen

    3.3 Advanced Screen In this section, you may set the conigurations for the following items: CPU Conigu- ration, Chipset Coniguration, Storage Coniguration, Intel(R) Rapid Start Technolo- gy, Intel(R) Smart Connect Technology, AMT Coniguration, Super IO Coniguration, ACPI Coniguration, USB Coniguration and Voltage Coniguration. Setting wrong values in this section may cause the system to malfunction.

  • Page 29: Cpu Coniguration

    3.3.1 CPU Coniguration Intel Hyper Threading Technology Intel Hyper Threading Technology allows multiple threads to run on each core, so that the overall performance on threaded software is improved. Active Processor Cores Select the number of cores to enable in each processor package. CPU C States Support Enable CPU C States Support for power saving.
  • Page 30 Please note that enabling this function may reduce CPU voltage and lead to system stability or compatibility issues with some power supplies. Please set this item to [Disabled] if above issues occur. Intel Turbo Boost Technology Use this item to enable or disable Intel Turbo Boost Mode Technology. Turbo Boost Mode allows processor cores to run faster than marked fre- quency in speciic conditions.

  • Page 31: Chipset Coniguration

    3.3.2 Chipset Coniguration DRAM Frequency If [Auto] is selected, the motherboard will detect the memory module(s) inserted and assign the appropriate frequency automatically. Primary Graphics Adapter This allows you to select [Onboard], [PCI] or [PCI Express] as the boot graphic adapter priority. The default value is [PCI Express]. VT-d VT-d technology (Intel Virtualization...
  • Page 32 Front Panel Select [Auto] or [Disabled] for the onboard HD Audio Front Panel. Onboard HDMI HD Audio This allows you to enable or disable the Onboard HDMI HD Audio feature. Onboard LAN1 This allows you to enable or disable the Onboard LAN1 feature. Onboard LAN2 This allows you to enable or disable the Onboard LAN2 feature.

  • Page 33: Storage Coniguration

    3.3.3 Storage Coniguration SATA Controller(s) Use this item to enable or disable the SATA Controller feature. SATA Mode Selection Use this to select SATA mode. Coniguration options: [IDE Mode], [AHCI Mode] and [RAID Mode]. The default value is [AHCI Mode]. AHCI (Advanced Host Controller Interface) supports NCQ and other new features that will improve SATA disk perfor- mance but IDE mode does not have these advantages.

  • Page 34: Intel(R) Rapid Start Technology

    3.3.4 Intel(R) Rapid Start Technology Intel(R) Rapid Start Technology Use this item to enable or disable Intel(R) Rapid Start Technology. Intel(R) Rapid Start Technology is a new zero power hibernation mode which al- lows users to resume in just 5-6 seconds. The default is [Disabled].

  • Page 35: Intel(R) Smart Connect Technology

    3.3.5 Intel(R) Smart Connect Technology Intel(R) Smart Connect Technology Use this item to enable or disable Intel(R) Smart Connect Technology. Intel(R) Smart Connect Technology keeps your e-mail and social networks, such as Twitter, Facebook, etc. updated automatically while the computer is in sleep mode.

  • Page 36: Amt Coniguration

    3.3.6 AMT Technology Intel AMT Use this to enable or disable Intel(R) Active Management Technology BIOS Extension. The default is [Enabled]. BIOS Hotkey Pressed Use this to enable or disable BIOS hotkey press. The default is [Disabled]. MEBx Selection Screen Use this to enable or disable MEBx Selection Screen.
  • Page 37 PET Progress User can enable or disable PET Events progress to receive PET events or not. The default is [Enabled].

  • Page 38: Super Io Coniguration

    3.3.7 Super IO Coniguration COM1 Coniguration Use this to set parameters of COM1. COM2 Coniguration Use this to set parameters of COM2. COM3 Coniguration Use this to set parameters of COM3. COM4 Coniguration Use this to set parameters of COM4. COM5 Coniguration Use this to set parameters of COM5.

  • Page 39: Acpi Coniguration

    3.3.8 ACPI Coniguration Suspend to RAM Use this item to select whether to auto-detect or disable the Suspend-to- RAM feature. Select [Auto] will enable this feature if the OS supports it. Check Ready Bit Use this item to enable or disable the feature Check Ready Bit. ACPI HPET Table Use this item to enable or disable ACPI HPET Table.

  • Page 40: Usb Coniguration

    3.3.9 USB Coniguration USB Controller Use this item to enable or disable the use of USB controller. Intel USB 3.0 Mode Use this item to enable or disable the use of Intel USB 3.0 mode. Legacy USB Support Use this option to select legacy support for USB devices. There are four coniguration options: [Enabled], [Auto], [Disabled] and [UEFI Setup Only].

  • Page 41: Voltage Coniguration

    3.3.10 Voltage Coniguration DRAM Voltage Use this to select DRAM Voltage. The default value is [Auto].

  • Page 42: Hardware Health Event Monitoring Screen

    3.4 Hardware Health Event Monitoring Screen In this section, it allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage. CPU_FAN1 &...

  • Page 43: Boot Screen

    3.5 Boot Screen In this section, it will display the available devices on your system for you to conig- ure the boot settings and the boot priority. Fast Boot Fast Boot minimizes your computer’s boot time. There are three con- iguration options: [Disabled], [Fast] and [Ultra Fast].
  • Page 44 Boot Beep Select whether the Boot Beep should be turned on or off when the system boots up. Please note that a buzzer is needed. Full Screen Logo Use this item to enable or disable OEM Logo. The default value is [En- abled].

  • Page 45: Security Screen

    3.6 Security Screen In this section, you may set, change or clear the supervisor/user password for the system. Secure Boot Use this to enable or disable Secure Boot. The default value is [Disabled].

  • Page 46: Exit Screen

    3.7 Exit Screen Save Changes and Exit When you select this option, it will pop-out the following message, “Save coniguration changes and exit setup?” Select [OK] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option, it will pop-out the following message, “Discard changes and exit setup?”...

  • Page 47: Software Support

    Click on a speciic item then follow the installation wizard to install it. 4.2.4 Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may con-...
