Please read this manual first for correct installation and operation.
This manual should be retained for future reference.
The information in this manual was current when published.
The manufacturer reserves the right to revise and improve its products.
All specifications are therefore subject to change without notice.

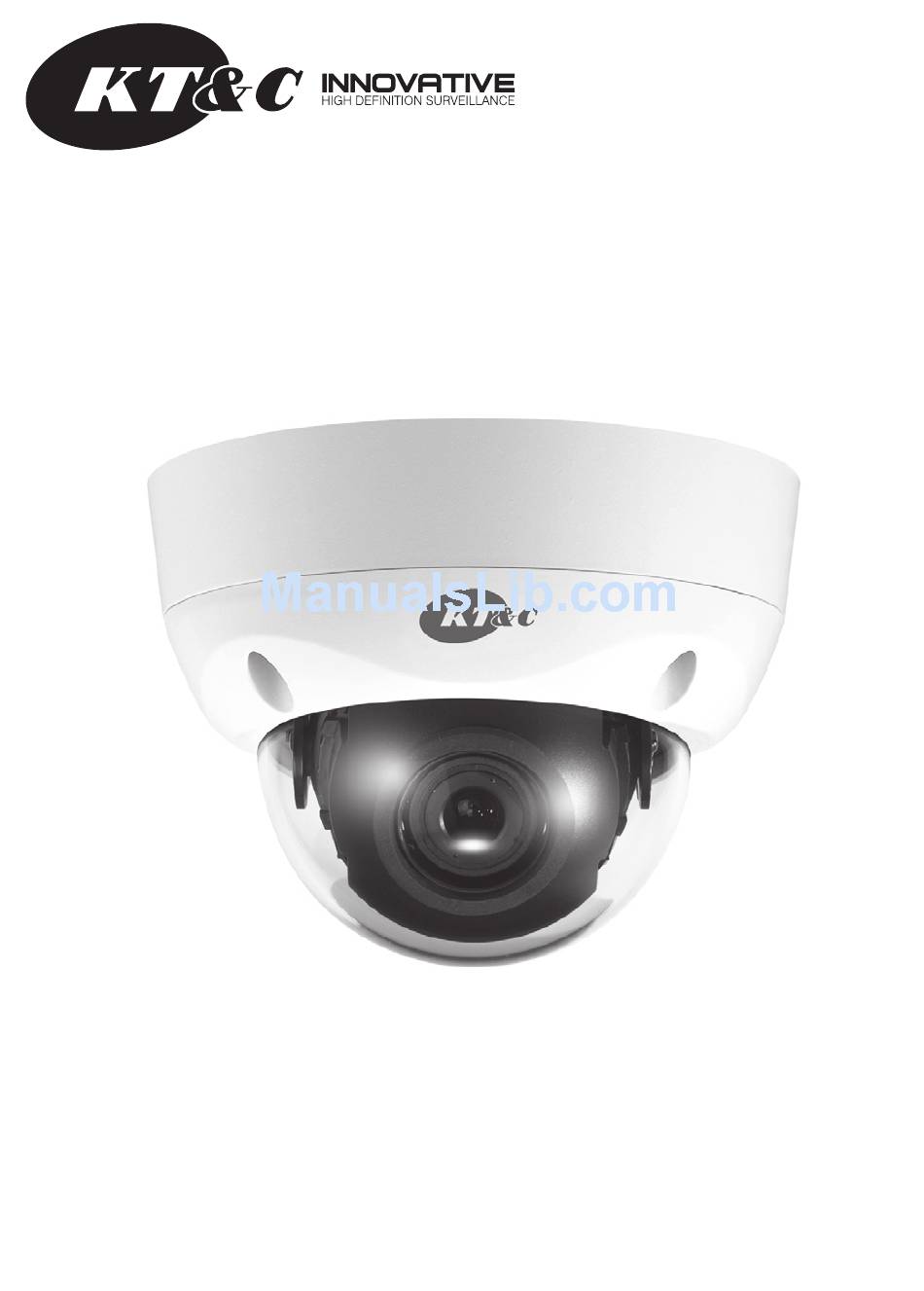

3-Axis Dual Voltage IP68 Vandal Dome Camera
M201-VDS302-001
Resolution 960 Series
750+ HTVL Varifocal
Operation Instructions
VDS302
Model No.
Advertisement
Table of Contents
Related Manuals for KT&C VDS302
Summary of Contents for KT&C VDS302
-
Page 1: Operation Instructions
M201-VDS302-001 Resolution 960 Series 750+ HTVL Varifocal 3-Axis Dual Voltage IP68 Vandal Dome Camera Operation Instructions VDS302 Model No. Please read this manual first for correct installation and operation. This manual should be retained for future reference. The information in this manual was current when published. -
Page 2: Product Overview
C O NT E NT S 1. CAUTIONS 2. PRECAUTIONS 3. FEATURES 4. PRODUCT OVERVIEW 5. EQUIPMENT AND ACCESSORIES 6. OVERVIEW AND FUNCTION 7. INSTALLATION 8. CONNECTION 9. DIMENSIONS 10. SPECIFICATION 11. OSD MENU STRUCTURE CAU T ION These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. - Page 3 1 . C AUT IO N S This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.
- Page 4 1 . C AUT IO N S WEEE (Waste Electrical & Electronic Equipment) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
- Page 5 2 . PRE CA UT I O N S 1. Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation.
- Page 6 3 . F E AT U R E S • Superlative resolution of over 750 horizontal TV lines for amazing image quality. • 960H CCD for sensor sensitivity of .001 lux in low light without DSS boost. • Full motion color or digital day/night during low ambient light without ghosting. •...
-
Page 7: Equipment And Accessories
-40°F up to 140°F with low current draw. The KPC-VDS302 offers flexible positioning for wall or ceiling mounting in an IP68 waterproof, vandal resistant housing;... -
Page 8: Ov Ervi E W A Nd F U N C T I On
6 . OV ERVI E W A ND F U N C T I ON Service Video Connector • CONTROL FUNCTION (OSD JOYSTICK) LEFT RIGHT OSD Joystick DOWN • 3-Axis gimbal. Pan Rotation Tilt Rotation Axial Rotation • Optional wall mount arm. (KA-WM100) -
Page 9: Installation
7 . INS TAL LATI O N Template Plastic Anchors(4ea) Lens Focus Knob Lens Zoom Knob Separate Circuit Cover and adjust LENS ZOOM / FOCUS KNOB. After setting the lens, assemble Screws(4ea) the Circuit Cover. Circuit Cover 70˚ Cover Screws(4ea) are captive and will normally be retained in cover. - Page 10 8 . C ON NE CT I O N • DC 12V / AC24V V I D E O I N DC 12V / AC 24V POWER SUPPLY PIGTAIL JACK When you install the camera, please glue up the end of cable to keep it stable in order to protect the camera from the humidity problems.
- Page 11 9 . D IM EN S I O N S Unit : Inch(mm) Ø3.93 (100) Ø5.92 (150.5)
- Page 12 1 0. SP EC I F I C AT I O N Imaging Device 1/3" 960H High Sensitivity CCD Video Format NTSC Picture Elements NTSC: 1020(H)x508(V) Effective Picture Elements NTSC: 976(H) x 494(V) Horizontal Resolution More than 750 TVL Sensitivity .001 lux native from sensor, with Lens: .2 lux S/N Ratio Over 50dB (AGC off)
-
Page 13: Osd Menu Structure
11. O SD M E N U S TR U C T U R E • Menu structure Main 1st Sub Menu 2nd Sub Menu 3rd Sub Menu BRIGHTNESS 0 ~ 255 IRIS SPEED 0 ~ 15 LENS RETURN SAVE&END MANUAL BRIGHTNESS 0 ~ 255... - Page 14 11. O SD M E N U S TR U C T U R E Main 1st Sub Menu 2nd Sub Menu 3rd Sub Menu D->N LEVEL 0 ~ 255 D->N DELAY 1, 3, 5, 10, 15, 20, 25, 30 AUTO N->D LEVEL 0 ~ 255...
- Page 15 11. O SD M E N U S TR U C T U R E Main 1st Sub Menu 2nd Sub Menu 3rd Sub Menu OFF / ON AREA1 / AREA2 / AREA3 / AREA4 AREA SEL. AREA5 / AREA6 / AREA7 / AREA8 AREA STATE OFF / ON HEIGHT...
- Page 16 KT&C America, Inc. www.ktncusa.com New York Office California Office New Jersey Office 3240 Wilshire Blvd. Suite 501 200 Parkway Drive South Suite 200 40 Lane Road 1st Floor Los Angeles, CA 90010 Fairfield, NJ 07004 Hauppauge, NY 11788 T: 973-276-0118 T: 213-381-0061 T: 631-864-0118 F: 973-276-0116...
