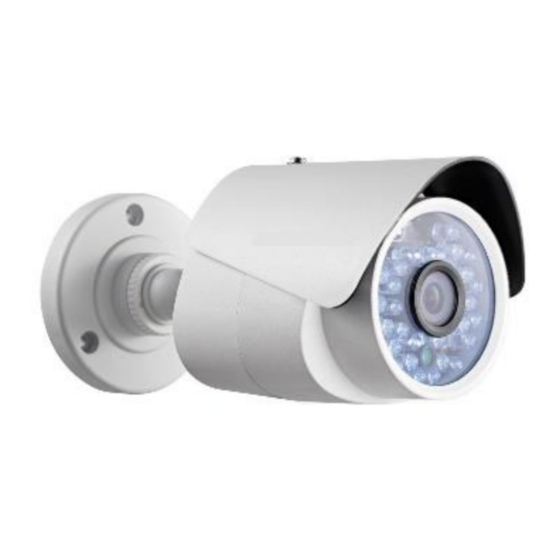

- Page 1 KEZ-BR3IR KEZ-BR4IR 720p / 1 Megapixel HD-TVI IP66 IR Mini Bullet Cameras Quick Operation Guide...
- Page 2 KEZ-BR_IR 720p Mini Bullet Camera·Quick Operation Guide Thank you for selecting this KT&C Omni EZHD Series product. For additional information please refer to the complete User Guide for this cameras series. End users should contact their KT&C Certified Dealer for service. Certified Dealers can obtain support directly from KT&C.
-
Page 3: Regulatory Information
KEZ-BR_IR 720p Mini Bullet Camera·Quick Operation Guide Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 4 KEZ-BR_IR 720p Mini Bullet Camera·Quick Operation Guide 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
-
Page 5: Safety Instructions
KNC-p3BR_IR IP Mini Bullet Camera·Quick Operation Guide Safety Instructions These instructions are intended to ensure that the camera is installed in a manner that avoids danger to persons or property loss. These precautionary measures are divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected. - Page 6 KNC-p3BR_IR IP Mini Bullet Camera·Quick Operation Guide ● If connecting several devices to one power supply, to avoid any overload that may cause over-heating or a fire hazard insure that the power supply is adequate for the power load. ● Please make sure that all plugs are firmly connected to the power sockets.
- Page 7 KNC-p3BR_IR IP Mini Bullet Camera·Quick Operation Guide ● The sensor may be damaged if exposed to laser energy, so when any laser equipment is in use, make sure that the sensor will not be exposed to the laser beam. ● Do not place the camera in extremely hot or cold (see camera specifications) locations.
-
Page 8: Appearance And Description
KNC-p3BR_IR IP Mini Bullet Camera·Quick Operation Guide Table of Contents 1 Appearance and Description ............7 2 Installation ..................8 3 Camera Connection ..............11 1 Appearance and Description Figure 1-1 Bullet Camera Overview... -
Page 9: Installation
KNC-p3BR_IR IP Mini Bullet Camera·Quick Operation Guide 2 Installation Before you start: Make sure the camera is in good condition and all the accessory parts are included. Make sure all related equipment is powered-off during the installation. Check to insure that the specifications of the camera are correct for the installation environment. - Page 10 KNC-p3BR_IR IP Mini Bullet Camera·Quick Operation Guide ● Make sure that there is no reflective surface too close to the camera lens. The IR light from the camera may reflect back into the lens causing haze, distortion or improper scene exposure. Steps: Attach the drill template on the wall or ceiling.
- Page 11 KNC-p3BR_IR IP Mini Bullet Camera·Quick Operation Guide Adjust the camera direction: Loosen the pan adjustment nut [3] on the bracket. Adjust the pan angle of the camera [0~360°]. Loosen the tilt screw [2] on the arm. Adjust the tilt angle of the camera [0~90°]. Loosen the rotation screw [1] directly behind the camera body.
-
Page 12: Camera Connection
KNC-p3BR_IR IP Mini Bullet Camera·Quick Operation Guide 3 Camera Connection Figure 3-1 Camera Connection This model bullet camera has only an HD-TVI output. To view the camera video, connect the camera BNC output to an EZHD Series DVR and observe the video via the monitor output, or over a network connection (web browser, OMNI CMS or OMNI Remote smart phone app).
