Summary of Contents for KT&C KEZ-c1TR28V12XIR

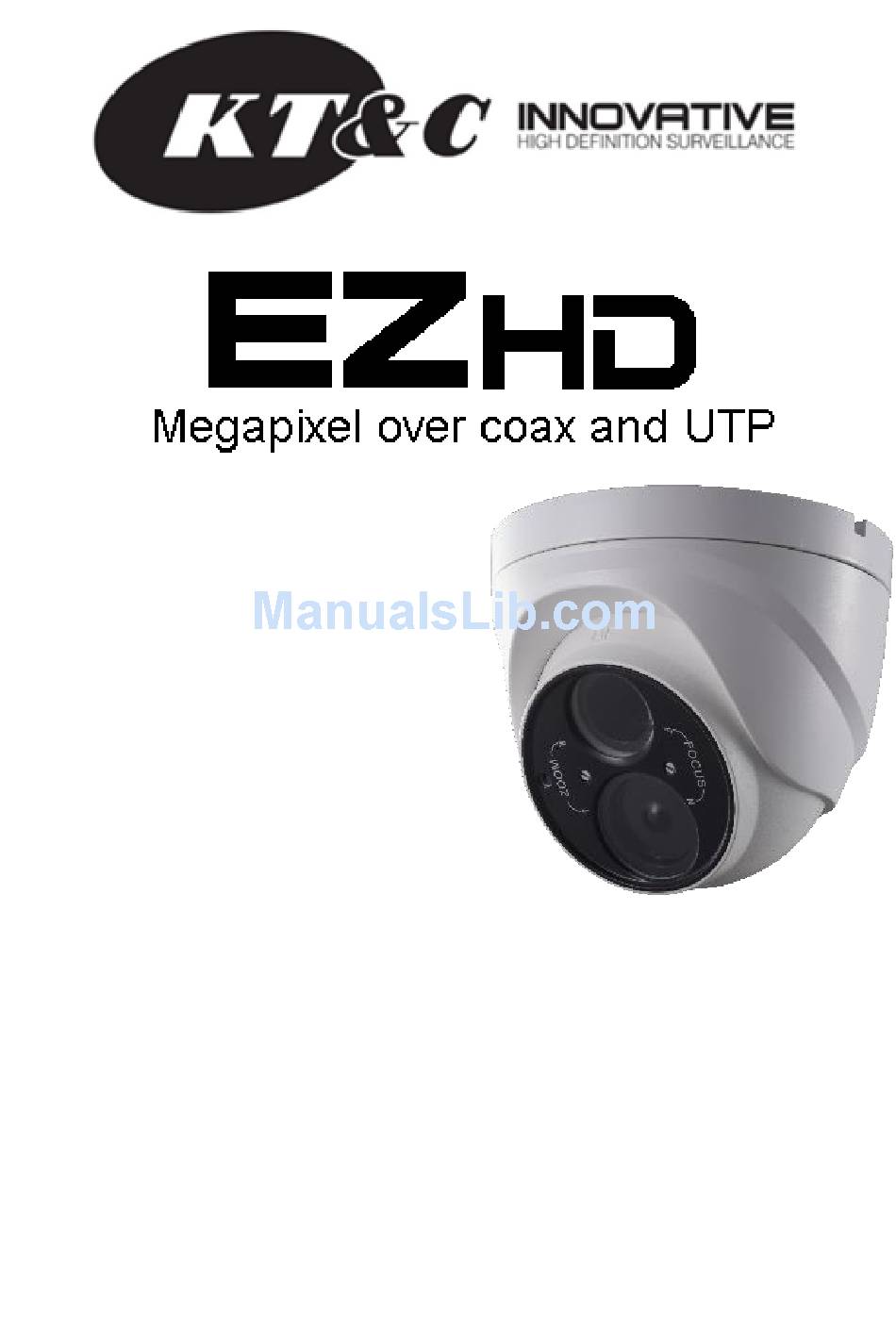

- Page 1 KEZ-c1TR28V12XIR HD-TVI 720p Low Light Varifocal IP66 EXIR Turret Cameras with OSD, CVBS Test Output and UTC Control Quick Operation Guide...
- Page 2 KEZ-c1TR28V12XIR HD-TVI Varifocal Turret Camera·Quick Operation Guide Thank you for selecting this KT&C Omni EZHD Series product. For additional information please refer to the complete User Guide for this cameras series. End users should contact their KT&C Certified Dealer for service. Certified Dealers can obtain support directly from KT&C.
-
Page 3: Fcc Information
KEZ-c1TR28V12XIR HD-TVI Varifocal Turret Camera·Quick Operation Guide Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 4 KEZ-c1TR28V12XIR HD-TVI Varifocal Turret Camera·Quick Operation Guide 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
-
Page 5: Safety Instructions
KEZ-c1TR28V12XIR HD-TVI Varifocal Turret Camera·Quick Operation Guide Safety Instructions These instructions are intended to ensure that the camera is installed in a manner that avoids danger to persons or property loss. These precautionary measures are divided into “Warnings” and “Cautions”... - Page 6 KEZ-c1TR28V12XIR HD-TVI Varifocal Turret Camera·Quick Operation Guide according to the IEC60950-1 standard. Please refer to technical specifications for detailed information. ● If connecting several devices to one power supply, to avoid any overload that may cause over-heating or a fire hazard insure that the power supply is adequate for the power load.
- Page 7 KEZ-c1TR28V12XIR HD-TVI Varifocal Turret Camera·Quick Operation Guide (which is not a malfunction), and could compromise the performance of the sensor. ● The sensor may be damaged if exposed to laser energy, so when any laser equipment is in use, make sure that the sensor will not be exposed to the laser beam.
-
Page 8: Appearance And Description
KEZ-c1TR28V12XIR HD-TVI Varifocal Turret Camera·Quick Operation Guide Table of Contents 1 Appearance and Description ............8 2 Installation ..................9 3 Camera Connection & Focus ............12 4 OSD Menu Operation ..............14 1 Appearance and Description Figure 1-1 Varifocal Turret Camera Overview Note: This camera can output HD-TVI –or- CVBS analog video, but not... -
Page 9: Installation
KEZ-c1TR28V12XIR HD-TVI Varifocal Turret Camera·Quick Operation Guide 2 Installation Before you start: Make sure the camera is in good condition and all the accessory parts are included. Make sure all related equipment is powered-off during the installation. Check to insure that the specifications of the camera are correct for the installation environment. - Page 10 KEZ-c1TR28V12XIR HD-TVI Varifocal Turret Camera·Quick Operation Guide ● Make sure that there is no reflective surface too close to the camera lens. The IR light from the camera may reflect back into the lens causing haze, distortion or improper scene exposure.
- Page 11 KEZ-c1TR28V12XIR HD-TVI Varifocal Turret Camera·Quick Operation Guide Connect the power and video wires. Place the camera onto the mounting base and secure with the enclosure/outer housing. Figure 2-3 Place camera body and enclosure into base Figure 2-4 3-axis Adjustment Adjust the camera direction: Adjust the pan angle [P] of the camera [0~360°].
-
Page 12: Camera Connection & Focus
KEZ-c1TR28V12XIR HD-TVI Varifocal Turret Camera·Quick Operation Guide 3 Camera Connection & Focus Figure 3-1 Camera Connection This camera can output HD-TVI - or- CVBS analog video, but not both at the same time. To employ a CVBS test monitor connected to the black BNC video test output, connect together the bare ends of the ‘switch cable’;... - Page 13 KEZ-c1TR28V12XIR HD-TVI Varifocal Turret Camera·Quick Operation Guide Camera Focus The varifocal lens controls are on the face of the camera body. Make the adjustments to capture the desired field of view while observing the image though a test monitor or the EZHD DVR system as described above.
-
Page 14: Osd Menu Operation
KEZ-c1TR28V12XIR HD-TVI Varifocal Turret Camera·Quick Operation Guide 4 OSD Menu Operation The OSD menu can ONLY be accessed via the HD-TVI connection “Up the Cable” from an EZHD recorder. UTC control will not be available when using the CVBS connection. - Page 15 KEZ-c1TR28V12XIR HD-TVI Varifocal Turret Camera·Quick Operation Guide If the HDCAM-C UTC protocol is already selected, clicking on IRIS + will bring up the OSD menu. To set/verify the protocol click on “Configuration” to bring up the detailed PTZ configuration screen.
- Page 16 KEZ-c1TR28V12XIR HD-TVI Varifocal Turret Camera·Quick Operation Guide Once HDCAM-C has been selected, click OK, then using the PTZ controls click IRIS+ to bring up the camera OSD menu. NOTE: While the EZHD DVRs can display the CVBS image from the camera, Up-the-Cable control is only active on the HD-TVI video cable from the camera.
- Page 17 KEZ-c1TR28V12XIR HD-TVI Varifocal Turret Camera·Quick Operation Guide...
- Page 18 KEZ-c1TR28V12XIR HD-TVI Varifocal Turret Camera·Quick Operation Guide...
