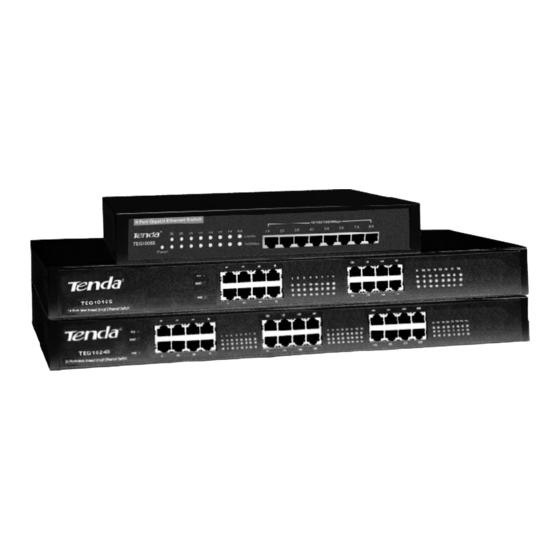

Summary of Contents for Tenda TEG1008S
-
Page 2: Copyright Statement
And if there are changes, Tenda is not responsible for informing in advance. If you want to know more about our products information, please... -
Page 3: Table Of Contents
Content 1、Product Specification ………………… 1 1.1 Article list .…………………………… 1 1.2 Switch Front panel and back panel specification………………………… 1.3 LED Indicator specification………… 1 1.4 Features …………………………… 1.5 Technology parameter …………… 2、 Installation ……………………………… 5 2.1 Switch to PC……………………… 2.2 Switch to HUB ……………………… 5 2.3 Switch to Switch ……………………... -
Page 4: Product Specification
Uplink port to connect backbone network. Customer can replace the 100Mbps switch by a TEG1008S/1016S/1024S to resolve the server terminal connectivity bottleneck issue. Customer can access the Giga switch into the Enterprise and Internet Coffee as a prime switch to improve the speed between different departments or Servers. -
Page 5: Features
2.100/1000M port may blinking together with Link/Act when it transfer data. 1.4 Features TEG1008S/1016S/1024S Giga switch has High speed dynamic memory, support packet store and forward function. TEG1008S/1016S/1024S Giga switch combined store and forward function and dynamic memory to make sure sending the packet to each port from the memory effectively. -
Page 6: Technology Parameter
between the sending and receiving nodes to prevent any possible packet loss. It Supports auto-negotiation function, detect the network connectivity such as 10M/100M half duplex, full duplex ,1000M full duplex work model. No need manual set, plug and play. The speed at each Port can up to 2000M. - Page 7 14880pps （10Mbps） per Packet port Filtering/ 148800pps（100Mbps） Forwarding per port Rate 1488000pps （1000Mbps）per port Auto-learning, Address auto-aging. Learning Physical and Environment function External Powerful Work POWER power adapter Temperature Operation: 0° C ~50° C Storage: -30° C ~60° C Humidity 5%~95% no coagulation AC100~240V AC INPUT...
-
Page 8: Installation
TEG1008S inches standard steel case) 2. Installation TEG1008S/1016S/1024S Support the desktop and mount installation, please fix the rubber pads on the case bottom to prevent the case from being scraped. Please be careful the following during the installation: Don’t put heavy article in the switch. -
Page 9: Switch To Switch
2.3 Switch to Switch Similar to the connectivity between the HUB and Switch, you can uplink from any port of the TEG1008S/1016S/1024S to any port of the other switch via Cat5/Cat5E STP/UTP cable. Notice: The TEG1008S/1016S/1024S Port Giga Switch has auto-negotiation function, the... - Page 10 D_RX - (receiver) ◆Parallel and crossing cable TEG1008S/1016S/1024S has auto MDI/MDI-X function, it can distinguishes the parallel and crossing cable automatically when you connect switch other device Meantime TEG1008S/1016S/1024S transfer automatically to make sure fast connectivity communication ( From TD sending change to RD...
