Page 2: Copyright Statement
All the photos and product specifications mentioned in this manual are for references only. As to the upgrade of softwares and hardwares, there will be changes. And if there are changes, Tenda is not responsible for informing in advance. If you want to know more about our products information, please... -
Page 4: Switch Features
Introduction The TEG1016D/1024D Gigabit Ethernet Switch, a mini desktop switch, is designed to resolve data transfer bottleneck in the enterprises and Internet Cafe. It has 16/24 10/100/1000Mbps auto-negotiation Ethernet ports and high-speed dynamic memory, supports auto MDI/MDI-X store-and-forward function to make sure the packet to be sent each port effectively. - Page 5 Please check the articles carefully after you open the packing as below: One 16/24-Port Gigabit Ethernet switch Mounting ears, eight screws, four rubber feet One power cord This manual If any of listed items are mismatched, missing or damaged, please contact the Tenda reseller from whom you purchased for replacement immediately.
-
Page 6: Front Panel And Rear Panel Specifications

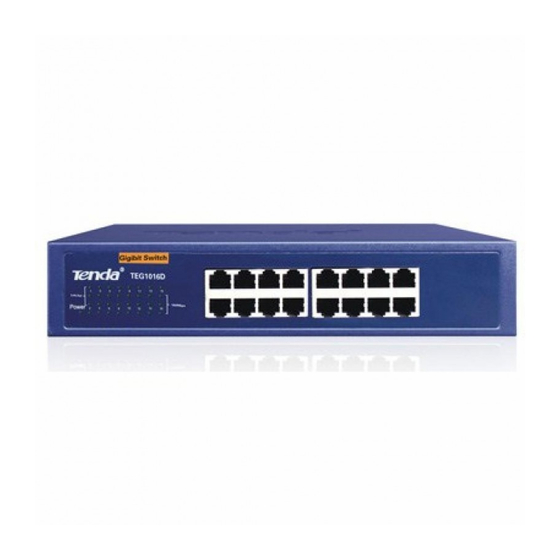

Front Panel and Rear Panel Specifications The front panel of 16/24-Port Gigabit Ethernet Switch includes 16/24 1000Mbps RJ-45 ports in the right side and LED indicators in the left side. Each 1000Mbps port has 1 LINK/ACT indicator, 1 1000Mbps indicator; 1 power indicator in the front panel. - Page 7 LED indicators The following chart shows the LED indicators of the Switch along with explanation of each indicator. Colors Status Description Indicators This indicator lights Green Lit up when the Switch turns on. If this indicator is not Power lighting, please check the AC power connector —...
-
Page 8: Before Connecting To The Network
Rack-mountable Installation The TEG1016D/1024D Gigabit Ethernet Switch also supports rack-mount. If you want to install the device in this way, please refer to the following instructions to set up. - Page 9 Setting up the Switch on a Rack The 16/24-Port Gigabit Switch can easily be set up on a rack. Two mounting ears are employed to stabilize the Switch. In order to view the LEDs, the front panel exposed is needed. Please refer to the following illustration: Setting up the Switch to a rack 1.
-
Page 10: Attaching The Rubber Feet
Attaching the Rubber Feet Position and apply rubber feet to the underside of the TEG1016D/1024D Gigabit Switch, using rubber feet provided. Attaching the rubber feet Switch to End Node Use standard Ethernet cable to connect the Switch to end nodes as described below. -
Page 11: Switch To Router Or Switch
Please refer to the LED Indicator Specifications. The Link/Act LEDs for each port lights green when the link is available. Switch to Router or Switch Connecting to another router or switch Please refer to the LED Indicator Specifications. The Link/Act LEDs for each port lights green when the link is available. -
Page 12: Technology Parameters
Physical and Environmental Power Internal universal power supply AC INPUT AC100~240V, 50/60Hz Power Consumption 15W/20W Operating Temperature 0° C ~40° C Storage Temperature -10° C ~70° C Humidity 5%~95% RH (no condensing) Dimensions 11.02in. ×7.09in. ×1.93in. (L×W×H) (280mm×180mm×44mm) TEG1016D:1.70Kg/ Weight TEG1024D:1.81Kg...
