Summary of Contents for Valdorf GT8600G

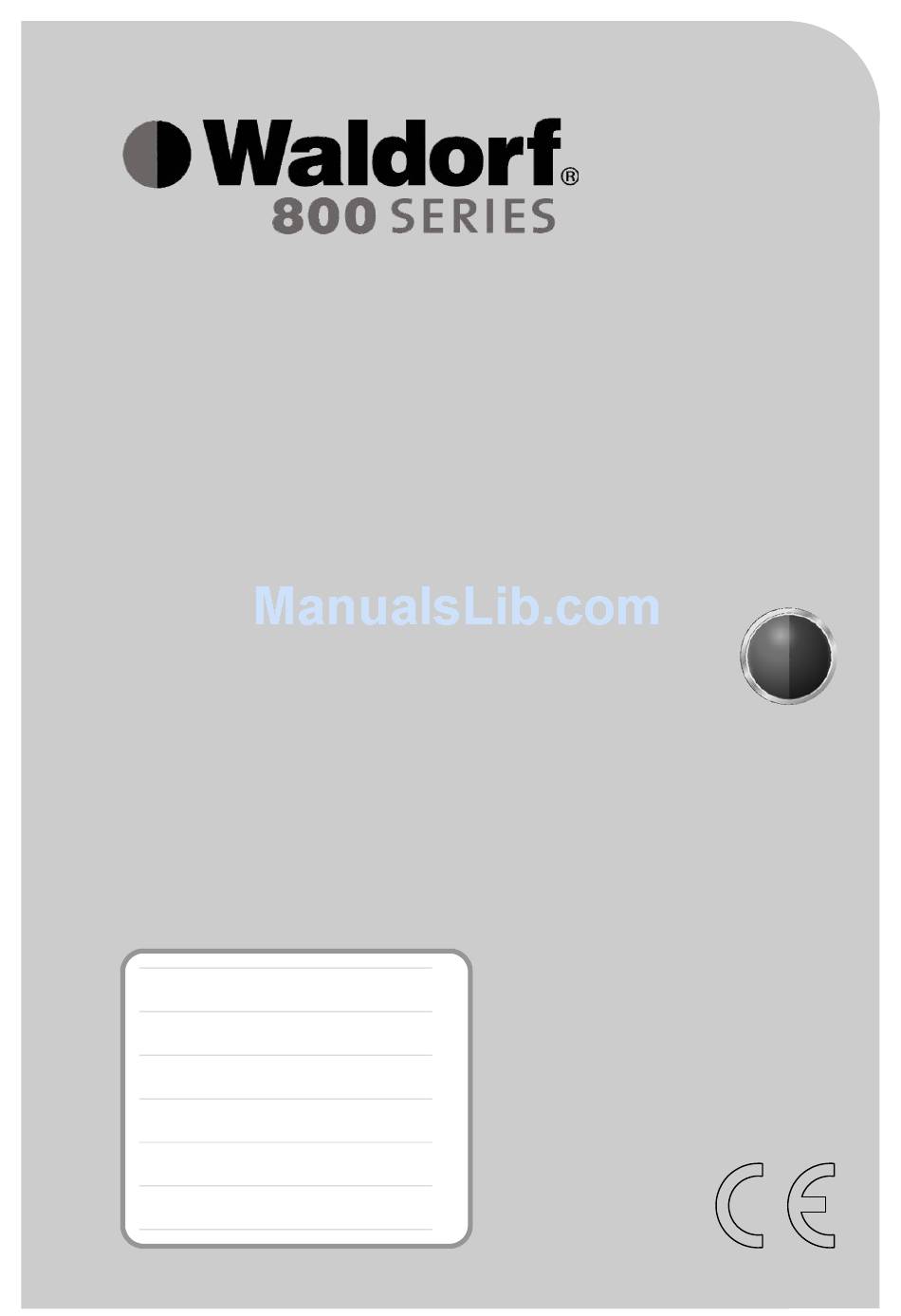

- Page 1 I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l Gas Griddle Toaster GT8600G GTB8600G GTL8600G GTLB8600G Date Purchased Serial Number...
- Page 2 MANUFACTURED BY Moffat Limited Rolleston 7675 New Zealand INTERNATIONAL CONTACTS AUSTRALIA Moffat Pty Limited Web: www.moffat.com.au E.Mail: vsales@moffat.com.au Main Office: (tel) +61 (03) 9518 3888 (fax) +61 (03) 9518 3833 Service: (tel): 1800 622 216 Spares: (tel): 1800 337 963 Customer Service: (tel): 1800 335 315...
-
Page 3: Table Of Contents
Contents Waldorf Gas Griddle Toaster GT(L)(B)8600G Introduction ....................2 Specifications ....................3 Model Numbers Covered in this Specification General Optional Accessories Gas Supply Requirements Gas Connection Dimensions ....................5 Weight (Nett) Installation ....................6 Installation Requirements Unpacking Location Clearances Assembly Fitting Rear Rollers Gas Connection Commissioning... -
Page 4: Introduction
Introduction We are confident that you will be delighted with your WALDORF GAS GRIDDLE TOASTER, and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new appliance, there are two important things you can Firstly Please read the instruction book carefully and follow directions given. -
Page 5: Specifications
Specifications Model Numbers covered in this Specification GT[1]8600G Gas Griddle Toaster NOTE: [1]: - Model Options; - Standard. - Low Back. - Bold Front. - Low Back and Bold Front. General A commercial heavy-duty gas fired griddle toaster, having two tubular burners heating a griddle plate from underneath and providing toasting heat for the toasting rack below. - Page 6 Specifications - UK Only: Category: (20, 30 / 37). 2H3P Flue Type: Natural Gas (G20) Propane (G31) Nominal 11.0 kW 11.0 kW Heat Input (nett) Reduced 6.0 kW 5.6 kW Pilot 170W 150W Nominal 1.16 m 0.85 kg/hr Gas Rate (nett) Reduced 0.63 m 0.44 kg/hr...
-
Page 7: Dimensions
Dimensions GT8600G Gas Connection Point. Weight (Nett) GT8600G 120kg... -
Page 8: Installation
Installation Installation Requirements NOTE: It is most important that this appliance is installed correctly and that operation is correct before use. Installation shall comply with local, gas, health and safety requirements. This appliance shall be installed with sufficient ventilation to prevent occurrence of unacceptable concentrations of health harmful substances in the room, appliance is installed in. -
Page 9: Clearances
50mm Rear 50mm Appliance Assembly Base GT8600G model only This model is delivered completely assembled. No further assembly is required. NOTE: This appliance is fitted with adjustable feet to enable it to be positioned securely and level on uneven floors. -
Page 10: Gas Connection
Installation Gas Connection NOTE: ALL GAS FITTING MUST BE CARRIED OUT BY A QUALIFIED SERVICE PERSON. Waldorf Gas Griddle Toasters do not require an electrical connection, as they function totally on gas supply only. It is essential that gas supply is correct for appliance being installed and that adequate supply pressure and volume are available. -
Page 11: Commissioning
Installation NOTE: Measure burner operating pressure at manifold test point with both burners operating at ‘Full’ setting. Verify operating pressure remains correct. Low Fire Adjustment Commissioning Pressure Test Point Fig 3 Before leaving the new installation; a. Check the following functions in accordance with operating instructions specified in ‘Operation’ section of this manual. -
Page 12: Operation
Operation Operation Guide Caution This appliance is for professional use and is only to be used by qualified persons. Only authorised service persons are to carry out installation, servicing or gas conversion operations. Components having adjustments protected (e.g. -
Page 13: Lighting Pilot Burners
Operation Lighting Pilot Burners Depress gas control knob and rotate anti-clockwise to ‘PILOT’ position. With control knob depressed, press piezo ignition button until pilot burner ignites. Pilot ignition can be viewed through openings in control panel. Hold in gas control knob for approximately 10 seconds, then release. Pilot burner should remain alight. -
Page 14: Cleaning And Maintenance
Cleaning and Maintenance General Caution Always turn ‘Off’ gas supply before cleaning. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. Clean the griddle toaster regularly. A clean appliance looks better, will last longer and will perform better. -
Page 15: Daily Cleaning
Cleaning and Maintenance Daily Cleaning Crumb tray / grease drawer should be checked and emptied frequently to prevent overflow and spillage. Remove grease drawer while still warm so that grease is in a liquid state. Empty any grease from drawer and wash thoroughly in same manner as any cooking utensil. Remove crumb tray and empty out contents. -
Page 16: Periodic Maintenance
Cleaning and Maintenance Stainless Steel Surfaces a. Clean exterior surfaces of griddle toaster with hot water, a mild detergent solution and a soft scrubbing brush. Note that gas control knobs are a push fit onto gas control valve spindles and can be removed to clean front of control panel. b. -
Page 17: Fault Finding
Fault Finding This section provides an easy reference guide to the more common problems that may occur during operation of your equipment. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section. -
Page 18: Gas Conversion And Specifications
Gas Conversion and Specifications Conversion Procedure Caution Ensure Appliance is isolated from gas supply before commencing servicing. NOTE: These conversions should only be carried out by qualified persons. All connections must be checked for leaks before re-commissioning the appliance. ... - Page 19 Gas Conversion and Specifications Gas Regulator NAT Gas / LPG / Butane Only. NOTE, Pin rotated for Natural Gas NOTE, Pin rotated for LPG NOTE: The gas regulator supplied is convertible between Natural Gas and LP Gas, but it’s outlet pressure is fixed ex-factory and is NOT to be adjusted.
-
Page 20: Gas Specifications
Gas Conversion and Specifications Gas Specifications - Australia: Natural Gas LP GAS (Propane) Main Burner Injector 2.10mm 1.30mm Pilot Burner Injector 0.35mm 0.23mm Low Fire Adjustment 1 turn out (c.c.w.) ½ turn out (c.c.w.) Operating Pressure 1.0 kPa (*) 2.5 kPa (*) Supply Pressure 1.13 - 3.40 kPa 2.75 - 4.50 kPa... - Page 21 Gas Conversion and Specifications - All Other Markets: Natural Gas Town Gas Main Burner Injectors Ø 2.10mm Ø 3.80mm Pilot Burner Injectors 0.35 0.60 Low Fire Adjustment 1 turn out (ccw) 2 turns out (ccw) Burner Operating Pressure (*) 1.0kPa (*) 0.63kPa (*) Main Burner Aeration Shutter Fully Open...
-
Page 22: Replacement Parts List
Replacement Parts List Replacement Part List IMPORTANT Only genuine authorized replacement parts should be used for servicing and repair of this appliance. The instructions supplied with parts should be followed when replacing components. For further information and servicing instructions, contact your nearest authorized service branch (contact details are as shown on reverse of front cover of this manual). - Page 23 Accessories 228795 Plinth Kit - 600mm. 228566 Griddle Scraper Tool. 228567 Smooth Plate Scraper Blades (Pack of 5 blades). Gas Conversion Kits Gas Type to Convert to Model Nat. Gas LPG (Propane) Butane Town Gas GT8600G 231980 231979 231981 232013...
