Geutebruck G-Cam/EFD-3245 Quick Manual

Geutebruck G-Cam/EFD-3245 Quick Manual

Full hd ultra-wdr compact dome ip camera

Advertisement

Quick Links

The Quick Guide is for quick installing and connecting the Full HD Ultra-WDR Compact Dome IP Camera. For details,
please refer to the IP Camera's User Manual.

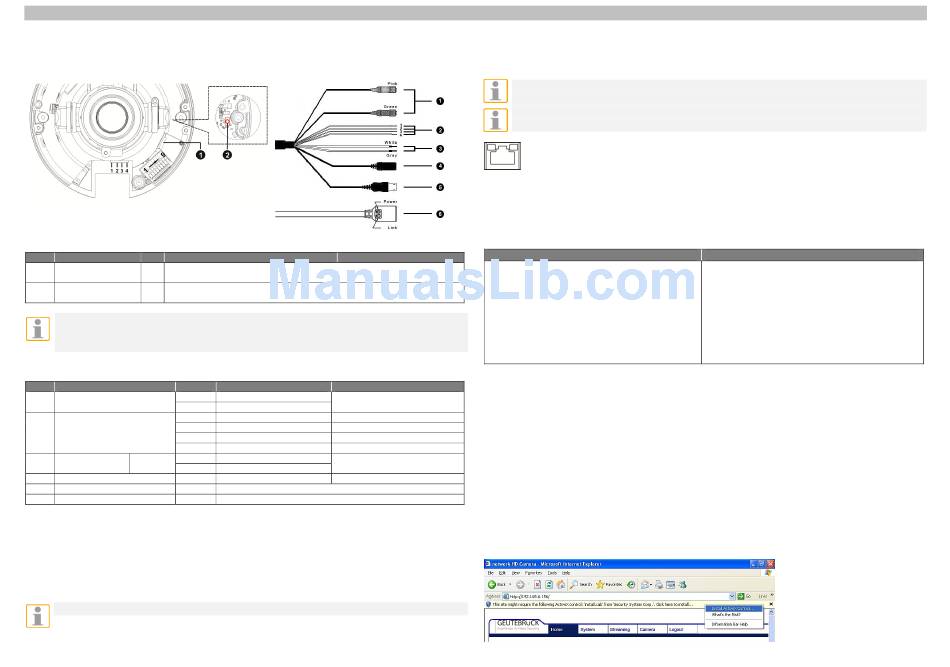

Camera's Connectors
Default Button, micro SD Card Slot and Function Cables
No.
Connector
Pin
Definition
-
Insert the microSD card into the card slot to store videos and snapshots. Do
1
microSD Card Slot
not remove the microSD card when the camera is powered on.
Press the button with a proper tool for at least 20 seconds to restore the
2
Default Button
-
system.
NOTE:
It is not recommend to record with the microSD card for 24/7 continuously, as it may not be able to
support long term continuous data read/write. Please contact the manufacturer of the microSD card for
information regarding the reliability and life expectancy.
Function Cables
No.
Connector
Pin
Pink
1
Audio I/O
Green
1
2
Alarm
2
(4-Pin Terminal Block)
3
4
White
3
Power
AC 24V
Gray
4
Power DC Jack
-
5
BNC
-
6
RJ-45
-
IP Camera Installation
Please follow the instructions below to complete IP Camera installation.
Power up the Camera
To power up the IP Camera, please plug the camera's DC 12V / AC 24V cable into the power terminal block.
Alternatively, connect the Ethernet Cable to the camera's RJ-45 port and plug the other end of the Cable into a PoE
switch.
NOTE: If PoE is used, make sure Power Sourcing Equipment (PSE) is in use in the network.
G-Cam/EFD-3245 Full HD Ultra-WDR Compact Dome IP Camera Quick Guide
Remarks
Definition
Remarks
Audio In
Two-way audio transmission
Audio Out
Alarm In –
Blue
Alarm In +
Green
Alarm Out –
Yellow
Alarm Out +
Orange
AC 24V 1
Power connection
AC 24V 2
DC 12V
Power connection
For analog video output
For network and PoE connection
2
2
Ethernet Cable Connection
Connect one end of the CAT5 Ethernet Cable to the RJ-45 connector of the IP Camera, and the other end of the cable
to the network switch or PC.
NOTE: In some cases, Ethernet Crossover Cable might be needed when connecting the IP Camera directly
to the PC.
NOTE: Check the status of the link indicator and activity indicator LEDs. If the LEDs are unlit, please check
LAN connection.
Green Link Light indicates good network connection.
Orange Activity Light flashes for network activity indication.
Before Login to the IP Camera
A client program will be automatically installed on the PC when connecting to the IP Camera. Before logging in to the
IP Camera, please ensure downloading the ActiveX control is allowed by either changing the ActiveX controls and
plug-ins or setting Internet's security level to default. For further details, please refer to the IP Camera's User Manual.
ActiveX Controls and Plug-ins Settings
Step 1: Start the Internet Explorer (IE).
Step 2: Select <Tools> from the main menu of the
browser. Then click on <Internet Options>.
Step 3: Click on the <Security> tab and select
"Internet", and click on <Custom level> to
change ActiveX settings.
Step 4: Set "ActiveX controls and plug-ins" items to
<Prompt> or <Enable>.
IP Camera Login
The default setting of the camera is: DHCP. You can find the camera via the Device Searching Tool which is on CD.
If no DHCP server is in network, the camera sets itself to IP address 192.168.0.250. If you now want to get access to
the camera, please set the IP address of the PC as: 192.168.0.XXX; for example:
IP Address: 192.168.0.100
Subnet Mask: 255.255.255.0
Login ID and Password
• Key in the IP Camera's IP address in the URL bar of the Web browser window and click on <Enter>.
• Enter the default user name (root) and password (admin) in the prompt request dialogue. Note that user name is
case sensitive.
Install the ActiveX Control
• After connecting to the IP Camera, the request for installing the ActiveX control will appear just below the URL bar.
• Right click on the information bar, and then click on "Install ActiveX Control..." to permit ActiveX control installation.
Internet Security Level
Step 1: Start the Internet Explorer (IE).
Step 2: Select <Tools> from the main menu of the
browser. Then click on <Internet Options>.
Step 3: Click on the <Security> tab and select
"Internet".
Step 4: Down the page, click "Default Level" and click
on <OK> to confirm the setting. Close the
browser window, and open a new one later for
accessing the IP Camera.
3
3
