Summary of Contents for Artistic Licence Data-Lynx O/P

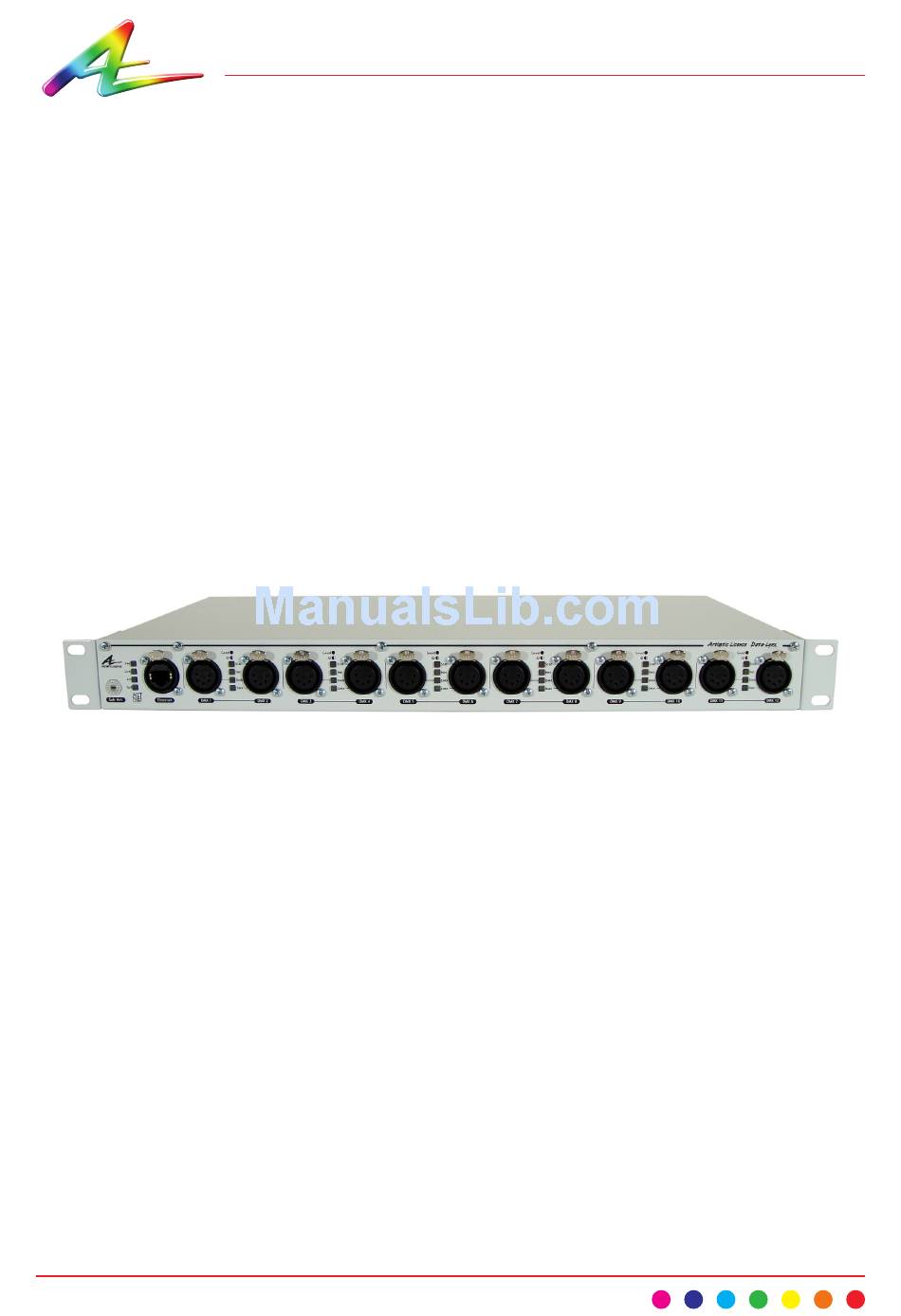

- Page 1 Artistic Licence Data-Lynx O/P User Guide Data-Lynx O/P User Guide Version 1-8...
- Page 2 Do not allow liquid to penetrate the product. Please recycle all packaging. Copyright © Artistic Licence Engineering Ltd. All rights reserved. Download the user guide by scanning the following QR code: Data-Lynx O/P User Guide Page 2...
-
Page 3: Mounting Diagram
16-17 Data Connection DMX O/P 7-8 18-19 Data Connection DMX O/P 9-10 20-21 Data Connection DMX O/P 11-12 Data Connection Ethernet Replaceable Fuse Mains I/P Fuse Power Universal Mains I/P Connection Connection Mounting Diagram Data-Lynx O/P User Guide Page 3... -
Page 4: Product Overview
Art-Net 3, DHCP is supported for automatic IP address allocation. Circuit Description Chassis Bonded to Earth-Ground Data-Lynx O/P can be mounted in a 19” 1U Type Ground referenced Rack Enclosure using the supplied Rack Ears. Pin 1 Connects to Internal Logic It is supplied with a standard IEC connector. -
Page 5: Dmx Outputs
Ethernet Indication DMX Outputs Data-Lynx O/P can convert a maximum of 12 Universes of data. Each port has a 5-pin XLR female output connector. DMX512 Wiring XLR Pin Function Colour RJ45 Cable Colour (Convention) Ground Black 7 & 8 White/Brown &... - Page 6 Configuration Note port address structure: (Net)-(Sub-Net)-(Universe) By default, each port of the Data-Lynx O/P has a sequential universe number starting ‘Merge Controls’ (selectable only on from zero. There are two ways of remotely individual DMX outputs) enables the...
-
Page 7: Dmx Settings
43.57 Web-Server Output Profiles IP Settings To configure Data-Lynx O/P via the internal web-server, either type in the IP address of The configuration menu for the IP settings the product or, if your web-browser supports allows the user to set a custom IP address, NetBios, then enter the name: datalynxop. - Page 8 ROM Boot Jumper Data-Lynx O/P has boot-loader firmware programmed into its ROM. This forces the product into a factory ROM mode ready for firmware upload. The boot-loader firmware allows the operating firmware (which is stored in the flash memory) to be upgraded over the network. It is not usually necessary to use this procedure as firmware uploads can be initiated directly using DMX- Workshop.
-
Page 9: Error Messages
Error Messages On power-up, Data-Lynx O/P goes through a number of self-checks to ensure that it is functioning correctly. If an internal fault occurs the DMX indicator LEDs are used to display an error code. LED State Description Stat & All alternately flashing SRAM Fault* Net &... -
Page 10: Troubleshooting
2. Incorrect network cable (should be a ‘cross-over’). communication. 3. A firewall is blocking transmitted/received data packets I have a Data-Lynx O/P but I 1. No, port configuration is a factory process. want some to be inputs. Can I use some gender changers... - Page 11 Output ESD protection: 12 kV Output voltage protection: +/- 80 V CE Compliance Output conditioning: slew-rate limited Control Data-Lynx O/P is CE compliant Input Protocols: Art-Net, sACN Output Protocols: DMX512, DMX512 (1990), DMX512-A, RDM V1.0 (E1.20 - 2006 ESTA Standard)
-
Page 12: Warranty
Warranty All products are covered from date of purchase by a two-year return to base warranty. By return to base, we mean that the customer is responsible for all costs of transport to and from Artistic Licence. Returns will not be accepted without prior authorisation.
