Summary of Contents for Artistic Licence railSplit dmx

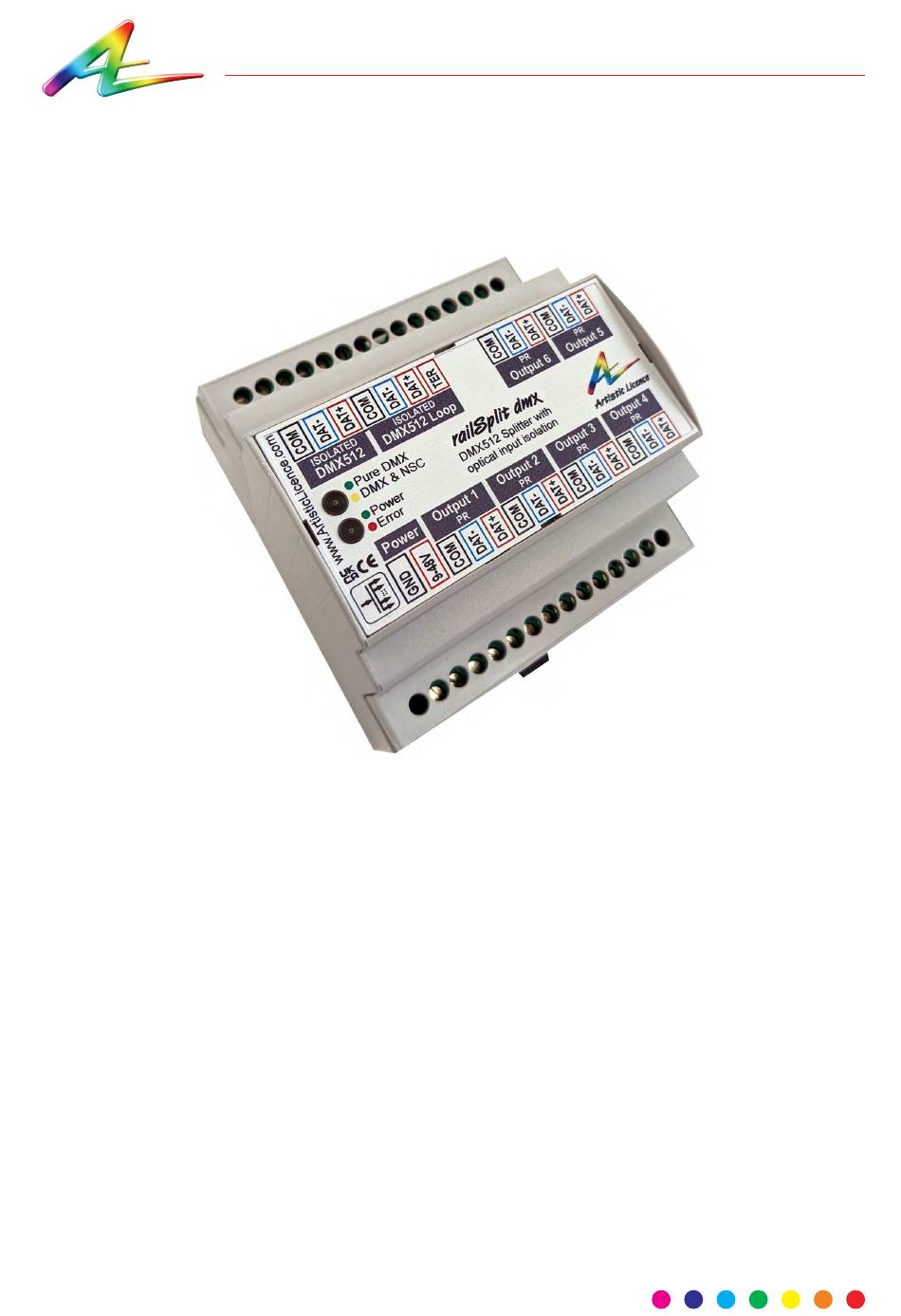

- Page 1 Artistic Licence railSplit dmx User Guide railSplit dmx User Guide Version 1-3...
- Page 2 MUST be installed in an appropriate IP rated cabinet. Do not allow this product to be exposed to rain or moisture. Do not allow liquid to penetrate the product. Please recycle all packaging. Copyright © Artistic Licence Engineering Ltd. All rights reserved. Download the user guide by scanning the following QR code: Page 2...
-
Page 3: Mounting Diagram
Mounting Diagram 88 mm 4 mm DMX512 DMX512 Loop Output 6 Output 5 Rail-Split DMX DMX512 DMX512 Splitter with Power galvanic input isolation Artistic Licence Power Output 1 Output 2 Output 3 Output 4 Page 3 railSplit dmx User Guide... -
Page 4: Key Features
Data + Overview railSplit dmx is a uni-directional DMX512 splitter and distribution amplifier. By design, railSplit dmx does not support RDM, allowing a cost-saving to be passed on to those customers who do not require bi-directionality. Customers requiring RDM functionality should order the sister product, railSplit RDM, as opposed to railSplit dmx. -
Page 5: Application Diagram
Earth-Ground and 0V the DMX outputs become Ground Referenced. Otherwise the DMX outputs are Floating. When the recommended PSU is used, DMX outputs are Floating. Application Diagram The diagram below shows how railSplit dmx could be utilised in a typical application. Page 5 railSplit dmx User Guide... -
Page 6: Operation
OFF = No data received Green = DMX activity (zero start code data only) Yellow = DMX activity and non-zero start code data such as RDM Bottom (Power): Green = Power Red = Receive errors Page 6 railSplit dmx User Guide... - Page 7 Package Contents Certification: CE, UKCA, WEEE, RoHS railSplit dmx Warranty: 2-year (return to base) Ordering Info Power & Electrical Product code: railSplit dmx Input voltage: 9-48 VDC Accessories (not included) Input connector: 2-pin screw terminal (1 no.) PSU-24-0.75-FER Input power (max): 8 W Duty cycle: 100% @ 25°C...
-
Page 8: Warranty
CE & UKCA compliant when installed in a shielded and earthed Artistic Licence Engineering Ltd. shall not be liable for errors metal case contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
