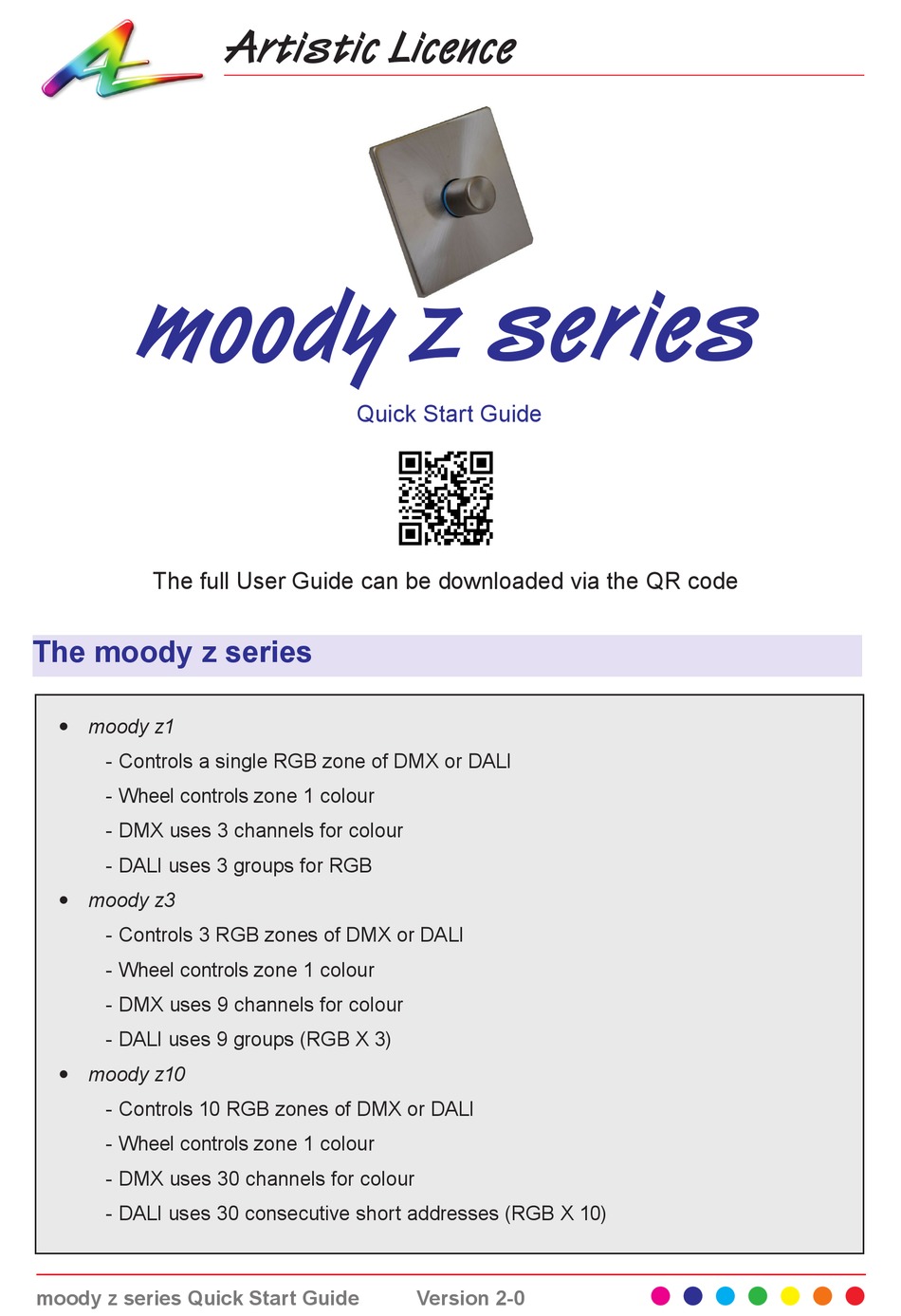

moody z series
The full User Guide can be downloaded via the QR code
The moody z series
y moody z1
- Controls a single RGB zone of DMX or DALI
- Wheel controls zone 1 colour
- DMX uses 3 channels for colour
- DALI uses 3 groups for RGB
y moody z3
- Controls 3 RGB zones of DMX or DALI
- Wheel controls zone 1 colour
- DMX uses 9 channels for colour
- DALI uses 9 groups (RGB X 3)
y moody z10
- Controls 10 RGB zones of DMX or DALI
- Wheel controls zone 1 colour
- DMX uses 30 channels for colour
- DALI uses 30 consecutive short addresses (RGB X 10)
moody z series Quick Start Guide
Artistic Licence
Quick Start Guide
Version 2-0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Artistic Licence moody z Series
Summary of Contents for Artistic Licence moody z Series
- Page 1 - Controls 10 RGB zones of DMX or DALI - Wheel controls zone 1 colour - DMX uses 30 channels for colour - DALI uses 30 consecutive short addresses (RGB X 10) moody z series Quick Start Guide Version 2-0...
- Page 2 Operation (moody z series) From factory, all scene channels are programmed to cyan. At power on, moody will automatically fade the master level to full over 5 seconds. If lights are on, briefly press the control: moody fades the master level to zero over 5 seconds.
- Page 3 Step 3 - programme the white level moody’s indicator LED flashes white to acknowledge it has entered white level programming mode, then displays the white level of the zone. Wait 5 seconds; moody will start slowly cycling through the white levels.
- Page 4 Artistic Licence The Mould Making Workshop Soby Mews Bovey Tracey TQ13 9JG United Kingdom Telephone +44 (0) 20 8863 4515 Email: Sales@ArtisticLicence.com Support@ArtisticLicence.com Web: www.ArtisticLicence.com Due to our policy of continuing product improvement specifications are subject to change without notice...
