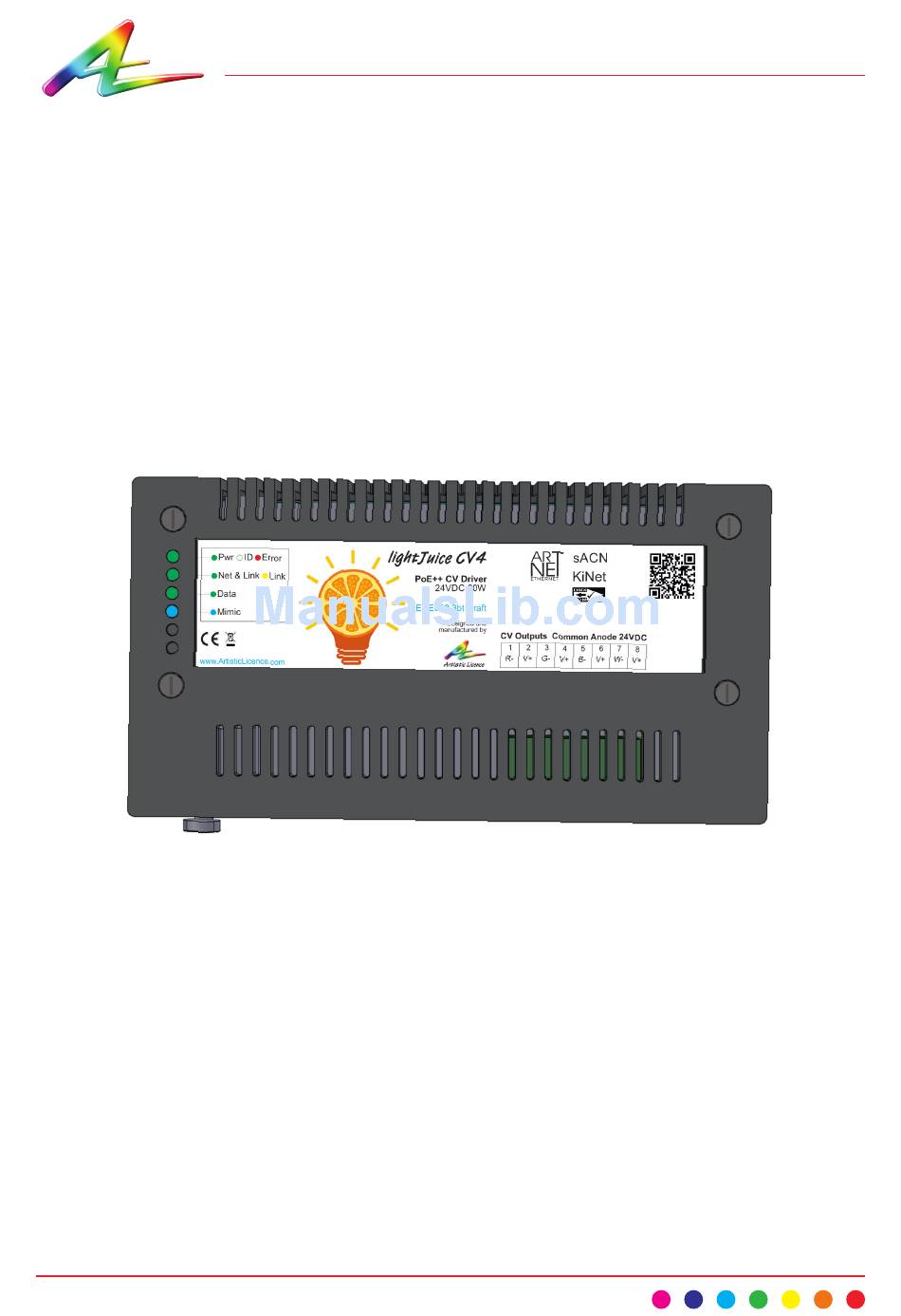

- Page 1 Artistic Licence lightJuice CV4 User Guide lightJuice CV4 User Guide Version 1-1...
- Page 2 CV4 User Guide...
- Page 3 Do not allow liquid to penetrate the product. Please recycle all packaging. Copyright © Artistic Licence Engineering Ltd. All rights reserved. Download the user guide by scanning the following QR code: lightJuice CV4 User Guide...
-
Page 4: Mounting Diagram
Connections Reference Type Description Connection DC input Power/Data indication Connection RJ45 Connection CV dimming outputs Mounting Diagram lightJuice CV4 User Guide Page 4... -
Page 5: Ethernet Connection
The product supports the latest Art-Net Modulation release (Art-Net 4) and sACN (ESTA standard E1.31). lightJuice CV4 requires Cat 5e cable or lightJuice CV4 modulates the LED outputs better and supports 10BaseT and 100BaseT. using 12-bit Pulse Width Modulation. This... - Page 6 Web browser screenshot mechanism. lightJuice CV4 is designed to drive 24V rated IP Settings RGBW constant voltage LED strip, in common The IP settings for the product are displayed anode configuration.
- Page 7 DMX workshop screenshot DMX-Workshop DMX-Workshop™ is a software application The lightJuice CV4 unit is shown as an Art- that runs on Windows XP / 7 / 8 / 10. It is a Net node (1) containing a virtual RDM device fully featured network management, analysis, (2).
- Page 8 - for example, a 192.168.x.x address is generally used in office environments. A useful additional feature of lightJuice CV4 is the ability to enable automatic IP address allocation on networks controlled by a DHCP server (check the ‘Enable DHCP’...
-
Page 9: Troubleshooting
All indicators on the device blink & the device is not on DMX-Workshop - The device could not be correctly classified by the power sourcing equipment. Try disconnecting any load from lightJuice CV4 (such as LED strip) while connecting the device, or try using different power sourcing equipment. - Page 10 DC power connector Storage temperature: -10°C to +50°C User guide Ordering Info Operating relative humidity (max): 50% non-condensing Product code: lightJuice CV4 IP rating: IP20 indoor use only Accessories (not included) Certification: CE, WEEE, RoHS PSU-24-2-FER Warranty: 2-year (return to base) Power &...
- Page 11 CV4 User Guide...
-
Page 12: Warranty
Product specific information is available on request. Waste Electrical & Electronic Equipment (WEEE) Artistic Licence is a member of a WEEE compliance scheme and will happily recycle any of our products that you, at your expense, return to us.
