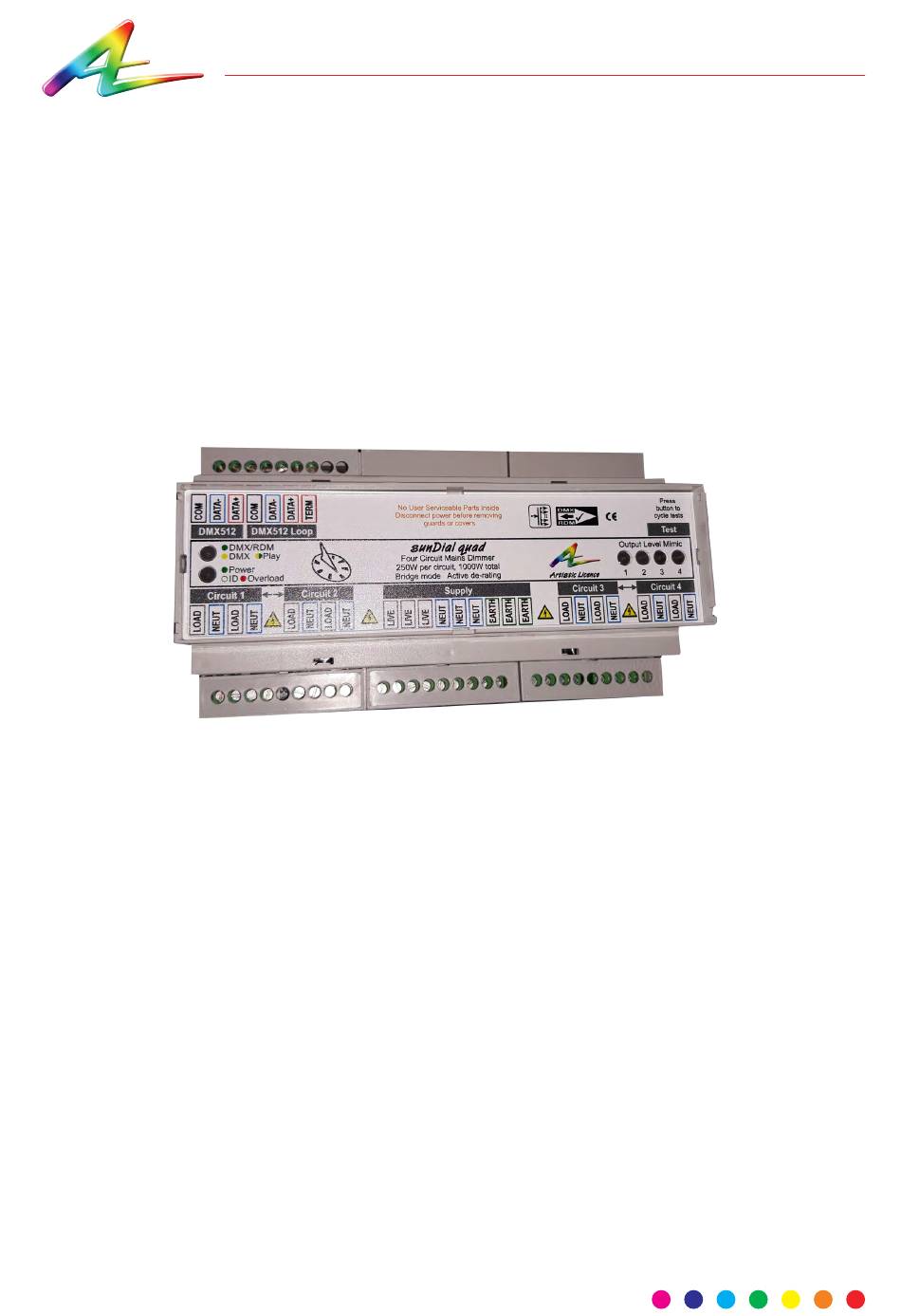

- Page 1 Artistic Licence sunDial quad dmx & xgc 1k User Guide sunDial quad User Guide Version 1-8...
-
Page 2: Installation Notes
MUST be installed in an appropriate IP rated cabinet. Do not allow this product to be exposed to rain or moisture. Do not allow liquid to penetrate the product. Please recycle all packaging. Copyright © Artistic Licence Engineering Ltd. All rights reserved. Download the user guide by scanning the following QR code: Page 2 sunDial quad User Guide... -
Page 3: Mounting Diagram
DAT+. Data + Internal Earth and Isolation Circuit Description DMX512 Input Type: Non-isolated (including Loop Through) Pin 1: Connects to Internal Logic Ground Dimming Outputs 230 VAC Internal Logic Ground Floating Mounting Diagram Page 3 sunDial quad User Guide... -
Page 4: Summary Of Key Features
DIN Rail or surface mount All stranded conductors must be finished with crimped ferrules. Power/Wiring Each output is protected by a 7A slow blow fuse (not user-accessible). sunDial quad is powered from a mains supply. The operating voltage is 230 VAC+/- 10%. Complies with 62368- 1:2014+A11:2017... -
Page 5: Output Priority
The product has a soft start feature such that condition, total current is limited to 6A it will slowly fade all outputs over a 2.5 sec which protects the electronics. period if powered on with the control input at full. Page 5 sunDial quad User Guide... - Page 6 RDM Identify Configuration Root device sunDial quad dmx uses either one or two - Dynamic Identify causes all outputs channels to control each output, so the to flash at approx 1Hz. Power LED product has a footprint of 4-8. The various flashes green at 1Hz.
-
Page 7: Preset Mode
Data loss mode DMX-Workshop (or a suitable RDM tool) also allows programming of data loss mode. This mode is intended to be used when sunDial quad dmx is being controlled by DMX (i.e. when it is not running in preset mode). The data loss programming determines what sunDial quad dmx should do if DMX is lost for more than 2.5 seconds. -
Page 8: Led Indicators
Alternating green/yellow DMX & RDM Preset playback or test Data No DMX received received pattern active Green Green flashing Over-temp / over-current / output short circuit detected Product Identify Normal Power Frequency outside 45Hz - 65Hz range command operation powered received Supply brownout detected - safety interlock active Page 8 sunDial quad User Guide... -
Page 9: Wiring Diagrams
Wiring Diagrams Page 9 sunDial quad User Guide... - Page 10 Page 10 sunDial quad User Guide...
- Page 11 Page 11 sunDial quad User Guide...
- Page 12 Page 12 sunDial quad User Guide...
- Page 13 Page 13 sunDial quad User Guide...
- Page 14 Page 14 sunDial quad User Guide...
- Page 15 Page 15 sunDial quad User Guide...
- Page 16 Page 16 sunDial quad User Guide...
- Page 17 1k Specification Mechanical Outputs Housing: DIN Rail Case Type: 4 x mains dimming circuits Material: Polycarbonate plastic, UL94-V0 Connectors: 4-pin screw terminals (4 no.) rated Min. recommended load: 12 W Overall dimensions: 90 mm (H) x 159 mm Max. load: 250 W per channel or 500 W / 9M (W) x 73.5 mm (D) per paired Channels 1+2 or 3+4 Weight: 0.3 kg...
-
Page 18: Warranty
The information contained in this document is subject to change without notice. Artistic Licence Engineering Ltd. makes no warranty Artistic Licence of any kind with regard to this material, including, but not limited to, The Mould Making Workshop the implied warranties of fitness for a particular purpose. Soby Mews Artistic Licence Engineering Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in Bovey Tracey connection with the furnishing, performance or use of this material. TQ13 9JG All trademarks are acknowledged. United Kingdom © Artistic Licence Engineering Ltd.
