INSTRUCTION MANUAL

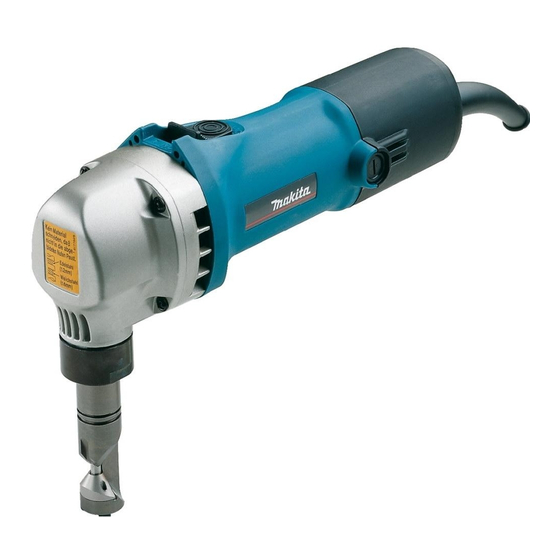

Nibbler
JN1601
004772
DOUBLE INSULATION
IMPORTANT: Read Before Using.
1

Advertisement

Table of Contents
loading

Related Manuals for Makita JN1601

Summary of Contents for Makita JN1601

  • Page 1 INSTRUCTION MANUAL Nibbler JN1601 004772 DOUBLE INSULATION IMPORTANT: Read Before Using.

  • Page 2: Specifications

    ENGLISH (Original instructions) SPECIFICATIONS Model JN1601 Steel up to 400 N/mm 1.6 mm / 16 ga Steel up to 600 N/mm 1.2 mm / 18 ga Max. cutting capacities Steel up to 800 N/mm 0.8 mm / 22 ga Aluminum up to 200 N/mm 2.5 mm / 13 ga...

  • Page 3: General Power Tool Safety Warnings

    Do not use any Makita Corporation responsible adapter plugs with earthed (grounded) power manufacturer declare that the following Makita tools. Unmodified plugs and matching outlets will machine(s): reduce risk of electric shock. Designation of Machine:...

  • Page 4: Functional Description

    GEB028-2 of the power tool in unexpected situations. 16. Dress properly. Do not wear loose clothing or NIBBLER SAFETY WARNINGS jewellery. Keep your hair, clothing, and gloves Hold the tool firmly. away from moving parts. Loose clothes, Secure the workpiece firmly. jewellery or long hair can be caught in moving Keep hands away from moving parts.
  • Page 5 Pull the die holder slightly and turn it to the desired To switch off, depress the rear of the switch lever. position for operation. ASSEMBLY Tighten the lock nut to secure the die holder in the desired position. There are four positive stops at 90° each: 0°, 90° left and CAUTION: right and 180°.

  • Page 6: Operation

    Cutting the corrugated or trapezoidal sheet 1. Bolts metals 2. Die 3. Punch 1. From the top view 4. Die holder 2. Cutting at an angle to grooves 3. Cutting perpendicular to grooves 4. From the side view 004782 5. Corrugated or OPERATION trapezoidal sheet metal 004790...
  • Page 7 Only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center. • Punch • Hex wrench • Wrench 32...
  • Page 8 Makita Corporation Anjo, Aichi, Japan www.makita.com 883894C222...
