Dacor RNRP48G Planning Manual

Document # PG05-012
• Observe all governing codes and ordinances during
planning and installation. Contact your local building
department for further information.
• This appliance must be installed in accordance with the
accompanying installation instructions.
All tolerances ±1/16" (±1.6 mm) unless otherwise noted.
Width: RNRP36G - 35 7/8" (91.1 cm)
RNRP48G - 47 7/8" (121.6 cm)
All specifications subject to change without notice.
RNRP36G, RNRP48G
Renaissance
All Gas Ranges

WARNING

48" (121.9 cm)
28 1/2" (72.4 cm)
26 7/8" (68.3 cm)
26" (66.0 cm)
24" (61.0 cm)
1 1/4"
(3.2 cm)
1 1/16" (2.7 cm) to cooking
surface (top of grates) from
top of trim
Finished side
panel
* The backguard is available in two heights;
3 inches (standard) and 9 inches (optional).

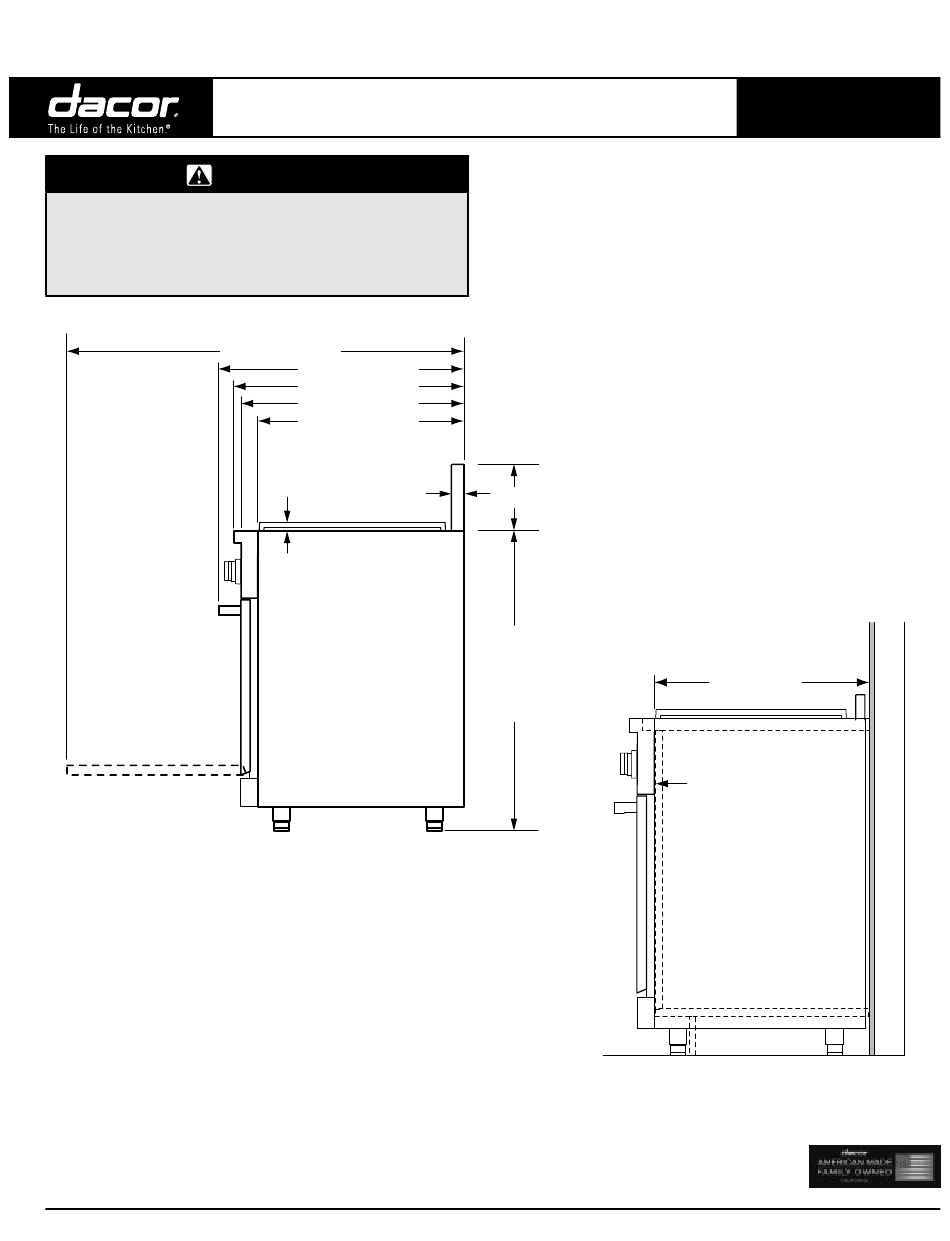

DIMENSIONS (SIDE VIEW)

® 36" and 48" Wide
Front of open door
Front of handle
Front edge of bull nose
Front panel
Rear of front panel/oven door
*
X
36 3/16"
(91.9 cm)
to
37 1/2"
(95.3 cm)
INSTALLED DIMENSIONS WITHOUT DOWNDRAFT VENT
www.dacor.com
Revised 03/16/15 Page 1/3
PLANNING
GUIDE
24" (61.0 cm)
Cabinet face
lines up with
back of control
panel
(SIDE VIEW)
Phone: (800) 793-0093
