Power Supply Connections - Addictive audio PURE P13.4 Owners & Installation Manual

Before drilling or cutting any holes investigate the layout of your automobile thoroughly!
Take care when working near the gas lines, hydraulic lines and electrical wiring.
This power amplifier has a protection feature to prevent any damage from misuse
or faulty conditions - excessive heat, short circuit speakers or overload. If the unit
senses one of the above conditions, the protection indicator will light and the
system will shut down. To diagnose the problem turn all levels down, all power off
and check the installation for possible wiring mistakes or shorts. In the event the
amplifier shuts down due to excessive heat under adverse conditions simply allow
time for the unit to cool down at which time, the protection indicator will not light.

Power Supply Connections

The +12VDC and GROUND wires should be heavy gauge copper wire with heavy
insulation and of the same gauge. Please see the chart below for recommended
gauge and fuse.
P25.2
P13.4
P60.1
P120.1
P200.1
P250.1
* This model is not fused at the amplifier. An ANL fuse is to be used within 8" of amplifier. It is
recommended to place another ANL fuse within 16" of the main battery.
In addition, it has a 12V remote control wire and it should be 14AWG-18AWG.
+12V Power (+12V)
Firstly, use good quality USA spec OFC wire. If using a low quality/strand count
wire, be prepared to increase gauge size accordingly. This wire is usually
connected directly to the positive battery terminal. Be sure to use proper fuse as
rated above within 16 inches of the main battery.
Caution
WARNING
80 AMP FUSE
80 AMP FUSE
100 AMP FUSE
100 AMP FUSE
200 AMP FUSE*
250 AMP FUSE*
5

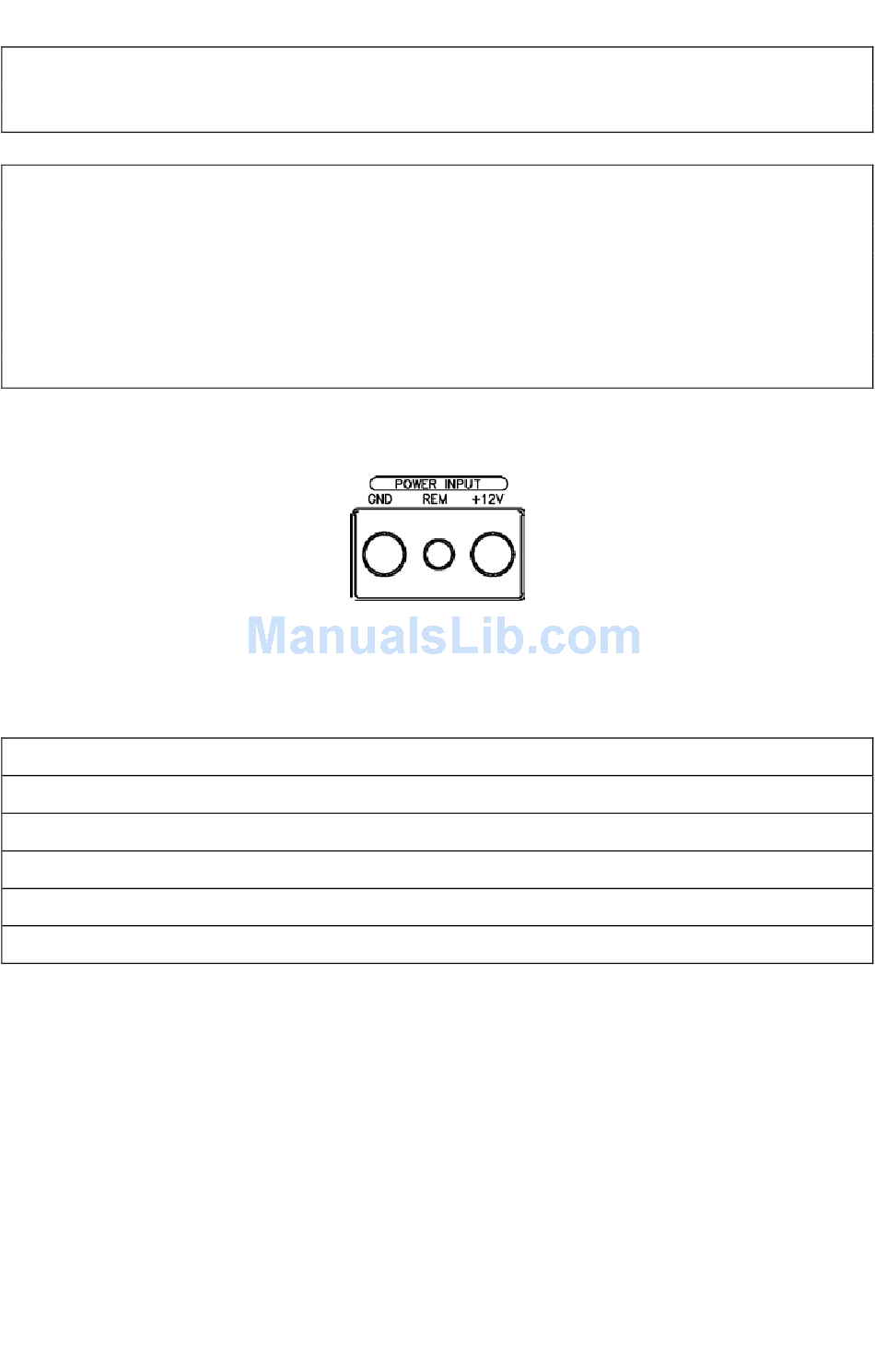

(Refer to Fig. 1)
4 GAUGE
4 GAUGE
4 GAUGE
4-2 GAUGE
0 GAUGE
0 GAUGE
