Page 2: Specifications
Specifications P25.2 (13.8V) STEREO BRIDGED Signal to Noise Ratio 101dB 250x2 watts RMS @ 4ohm 690x1 watts RMS @ 4ohm High Efficiency 78% THD: 390x2 watts RMS @ 2ohm Do Not Operate at 2ohm or 0.1% Do Not Operate at 1ohm Lowest Recommended Load: 1ohm Bridged 2ohm Stereo or 4ohm Mono... - Page 3 Common Design Features Clipping Circuit with LED Indicator Heavy Duty Copper Trace PCB Board Direct Cable Connection for Superior Conductivity Short Circuit, Thermal, Low / High / Reverse Voltage Protection EASY CLICK on all Frequency Adjustments for Simple and Exact Tuning ...
-
Page 4: Installation
After all, we want you listening for a lifetime. Introduction Your Addictive Audio amplifier has been designed to give you very high performance, and valuable features, at an exceptional value. Take the time to read over this brief set of instructions, and you will get full enjoyment from your system. -
Page 5: Power Supply Connections
Caution Before drilling or cutting any holes investigate the layout of your automobile thoroughly! Take care when working near the gas lines, hydraulic lines and electrical wiring. WARNING This power amplifier has a protection feature to prevent any damage from misuse or faulty conditions - excessive heat, short circuit speakers or overload. -
Page 6: Power Input Connections
Ground (GND) Same gauge as +12V and no longer than 36” This connection must be completed using an “O” ring (to prevent coming loose) with insulating sleeve. This wire is the electrical ground and must be fastened securely to the vehicle chassis. The best method is to use threading sheet metal screw(s) since the threads cut into bare metal. -
Page 7: Signal Input Connections
Signal Input (RCA) Addictive Audio amplifiers have RCA connection type input terminal for low level input. A standard pair of RCA type cables can be used for all models (Refer to . The amplifiers allow both stereo and mono input. The amplifier internally Fig. - Page 8 Speaker Output Connections P25.2...

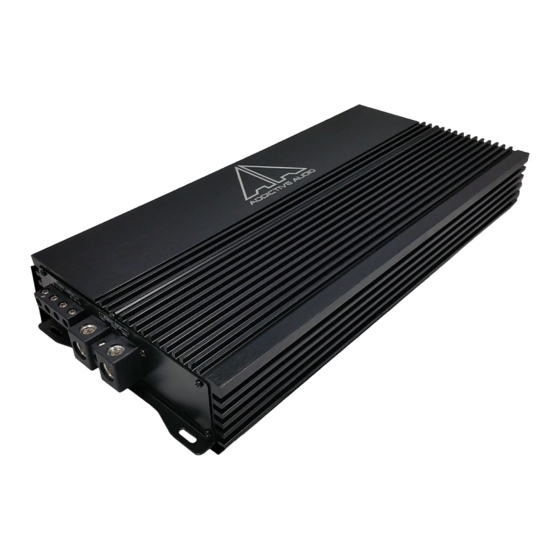

- Page 9 P13.4...
- Page 10 P60.1 / P120.1 / P200.1 / P250.1...
- Page 11 Strapping/Linking 2 Amplifiers to 1 Subwoofer (Fig. 6) Caution Input voltage under unloaded condition should be less than 16Volts. Impedance of two amplifiers STRAPPED is 4 ohm and 2 ohm (2ohm being the minimum).
-
Page 12: Features And Controls
Features and Controls P25.2 / P13.4 (Fig.4) 1. 0-180 Degree Phase Alignment Allows for the time correction of music signals to prevent phasing cancellation or music blurring. 2. MODE HPF: Set the MODE SWITCH to the HPF position when the amplifier is used to drive a tweeter/midrange system. -
Page 13: Bass Boost
HPF knob to the desired frequency ranging from 50-500Hz. See #3 below for more details. LPF: Set the MODE SWITCH to the LPF position when the amplifier is used to drive a subwoofer system. The frequencies above the crossover point will be attenuated at -12dB/octave. - Page 14 Addictive Audio uses the CLIPPING LED to help “SEE” when clipping occurs, without this, our only other option would be to give everyone an oscilloscope.
- Page 15 Select 2-in when only running 1 rca pair to the amplifier. Be sure to plug the rca into the primary inputs notated by a black square in fig. 4. When 2- in is selected it will apply signal to channel 3 and 4 rca inputs internally. Features and Controls 60.1 / 120.1 / 200.1 / 250.1 (Fig.5) 1.
- Page 16 SPL applications. A majority of companies only offer a bass boost that only allows the ability to boost a certain amount of dB at 45Hz. To adjust the Addictive Audio amplifier according to this “industry average” set the Center Frequency to 45Hz (16 clicks).
-
Page 17: Master / Slave Selection
Addictive Audio uses the CLIPPING LED to help “SEE” when clipping occurs, without this, our only other option would be to give everyone an oscilloscope. - Page 18 6. If using the supplied Remote Gain Control (Bass knob) turn the dial all the way up to the max. (full clockwise) 7. Attach the recommended fuse to the fuse holder by (refer to fuse chart on pg.4) the main battery. 8.
- Page 19 EASY CLICK ADJUSTMENT CHART...
- Page 22 Many vehicles have small and insufficient wire to connect the alternator’s positive connection to the battery and to ground the battery to the vehicle chassis. To prevent voltage drops, these wires should be upgraded to 4-0 AWG when installing one or more Addictive Audio amplifiers. ____________________________________________________ ____________________________________________________...
- Page 23 LIKE US ON FACEBOOK AND STAY UP TO DATE ON NEW PRODUCTS, PROTOTYPES, RELEASE DATES, BUILD PICTURES AND MORE. www.facebook.com/AddictiveAudioInc FOLLOW US ON INSTAGRAM AND GET IMMEDIATE UPDATE PICTURES AND VIDEOS. #addictiveaudio #kromeaudio #vitalpower www.instagram.com/AddictiveAudioInc.com WATCH THE LATEST AND GREATEST VIDEOS OF ADDICTIVE AUDIO, KROME AUDIO AND VITAL POWER PRODUCTS! www.youtube.com/AddictiveAudioInc.com...
