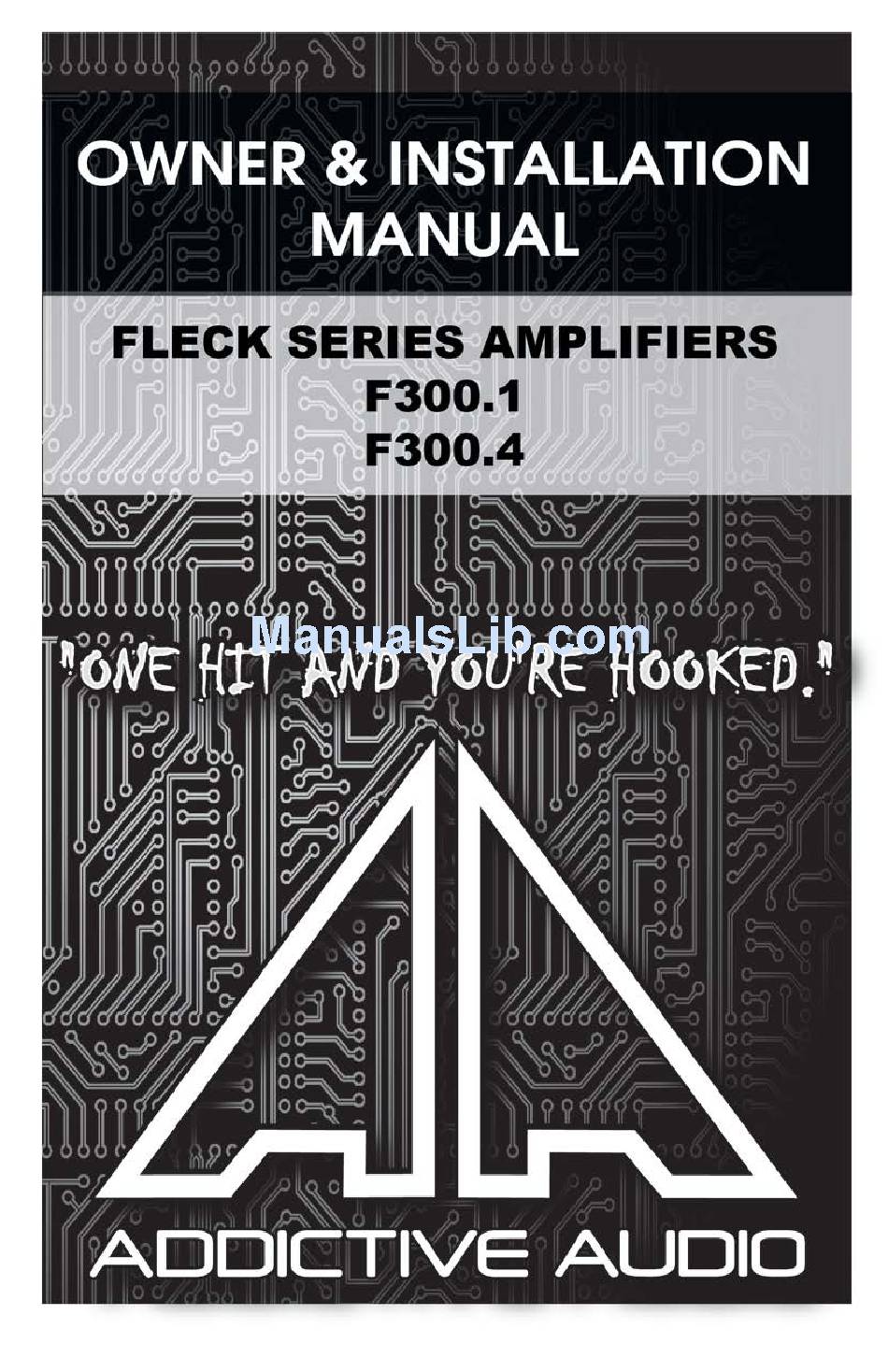

Addictive audio F300.1 Owners And Installation Manual

Fleck series amplifiers
Hide thumbs
Table of Contents

Advertisement

Quick Links

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F300.1 and is the answer not in the manual?

Questions and answers

Related Manuals for Addictive audio F300.1

Summary of Contents for Addictive audio F300.1

  • Page 2: Specifications

    Direct Cable Connection for Superior Conductivity Congratulations! Selecting fine audio equipment, such as the Addictive Audio unit you have just purchased, is only the beginning of your musical enjoyment. Now is the time to consider how to maximize the fun and excitement your equipment has to offer.

  • Page 3: Installation

    After all, we want you listening for a lifetime. Introduction Your ADDICTIVE AUDIO amplifier has been designed to give you very high performance, and valuable features, at a very reasonable price. Take the time to read over this brief set of instructions, and you will get full enjoyment from your system.

  • Page 4: Power Supply Connections

    F300.4 60 AMP FUSE 8 GAUGE F300.1 60 AMP FUSE 8 GAUGE In addition, it has a 12V remote control wire and it should be 14AWG-18AWG. It is preferable to have longer speaker wires and shorter power supply wires to minimize power losses.

  • Page 5: Signal Input Connections

    FIG.1 Signal Input Connections Signal Input (RCA) “Input” Addictive Audio amplifiers have RCA connection type input terminal for low level input. A standard pair of RCA type cables can be used for all models (Refer to . Adjustment of input level is accomplished by the gain control. Adjusting this Fig.
  • Page 6 NOTE: For F300.4 set 2CH/4CH switch to “2CH” when running two separate 3.5mm cables. When running a single 3.5mm cable set 2CH/4CH switch to “4CH” to allow signal to pass through to all channels. COOL NOTE: When running an F300.4 and an F300.1 amplifier in a single installation, use Y35 adaptor (sold separately) to allow a single source (mobile phone or Addictive Audio mini-BAR) to send signal to both amplifiers.

  • Page 7: Speaker Output Connections

    Speaker Output Connections F300.1: 2ohm and 4ohm Stable ONLY – DO NOT RUN AT 1ohm. When wiring a single subwoofer to the amplifier, combine both positive (+) wires to the positive (+) wire of the subwoofer and both negative (-) wires to the negative (-) wire of the subwoofer.

  • Page 8: Power / Protection

    Amplifier Features and Controls 1. Power / Protection POWER LED: Will illuminate BLUE when +12VDC is applied to both the remote turn on and +12V input from the battery and a solid ground has been made. The input from the battery to the amplifier can be more than 12VDC. PROTECTION: Will illuminate RED when any one of the following occurs: Short Circuit (Immediately) Reverse Voltage (Immediately)

  • Page 9: Low Pass Filter

    Adjusting this control allows the amplifier gain to be controlled to match the source unit. 8. RCA Line Input Jacks Addictive Audio amplifiers have RCA connection type input terminal for low level input. A standard pair of RCA type cables can be used for all models...

  • Page 10: High Pass Filter

    Adjustment of input level is accomplished by the gain control. Adjusting this control allows the amplifier gain to be controlled to match the source unit. 9. 2CH/4CH Signal Pass-Through Selection Switch For F300.4 set 2CH/4CH switch to “2CH” when running two separate RCA/AUX cables.
  • Page 11 Many vehicles have small and insufficient wire to connect the alternator’s positive connection to the battery and to ground the battery to the vehicle chassis. To prevent voltage drops, these wires should be upgraded to 4-0 AWG when installing one or more Addictive Audio amplifiers.
  • Page 13 Many vehicles have small and insufficient wire to connect the alternator’s positive connection to the battery and to ground the battery to the vehicle chassis. To prevent voltage drops, these wires should be upgraded to 4-0 AWG when installing one or more Addictive Audio amplifiers. ____________________________________________________ ____________________________________________________...
  • Page 14 STAY UP TO DATE ON NEW PRODUCTS, PROTOTYPES, RELEASE DATES AND OTHER COOL STUFF! SEARCH: Addictive Audio Inc on FACEBOOK.com WATCH LATEST GREATEST VIDEOS ADDICTIVE AUDIO, KROME AUDIO AND VITAL POWER PRODUCTS! SEARCH: Addictive Audio Inc on YOUTUBE.com...

This manual is also suitable for:

F300.4
