Summary of Contents for Milab DC-196

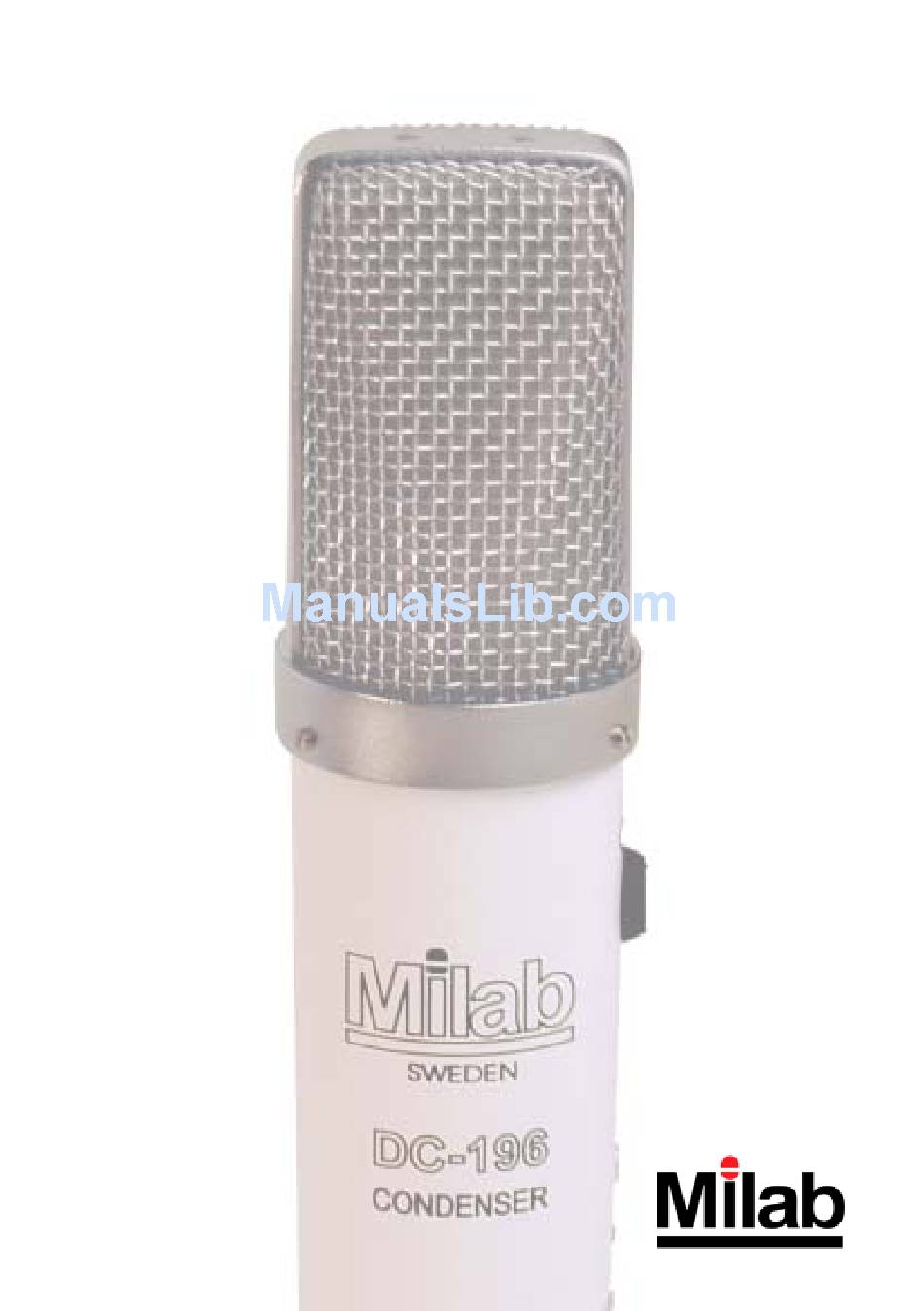

- Page 1 Operating instructions DC- 1 96...
- Page 2 Phone: +46 42 381620 Fax: +46 42 136350 www.milabmic.com Milab Microphones is a trademark of Milab Microphones, Sweden. Trademarks of other companies mentioned in this documentation, appear for identification purposes only and are the property of their respective companies. Copyright © 1997-2005 Milab Microphones, Sweden. All rights reserved.
- Page 3 Table of Contents 2. The following items will be included in the delivery: Welcome 1 pcs of Milab DC-196 with Included in the delivery • individually plotted frequency curve DC-196 Condenser Microphone 1 pcs of stand holder Connection • 1 pcs of windscreen Guidelines •...
- Page 4 4. Connection The DC-196 can be connected to any mic Art No: 1300), otherwise a RC network has input, mixer/amplifier, or mic preamp using to be incorporated to block the 48 Vdc. a standard microphone cable. The microphone is designed for phantom...
- Page 5 6. Frequency response at 1m distance The frequency response may vary within ± 2,5 dB of the published graph. Before delivery, each microphone is measured and accompanied with it’s own graph. 7. Polar diagram Cardioid Omni Eight...
- Page 6 30 mm 9. Declaration of Conformity CE Milab Microphones AB, declares as it´s sole responsibility that the above named product is in compliance with the EMC Directive 89/336/EEC, 92/31/EOF and conform to the requirements of the Harmonized Products Standards EN 55013, EN 55020, IEC 803-1.
- Page 7 --without limitation-- the warranties of merchantability and of fitness for any purpose. Milab Microphones and the user are aware that functional defects in the products cannot be totally ruled out, in the present state of technical knowledge, even if the very greatest care is taken.
- Page 8 Phantom Power Supply art.no: 1300 Windscreen art.no: 3403 Stand holder art.no: 3127 Shockmount art.no: 3227 Mahogany case art.no: 1004 Pop shield art.no: 3500...
