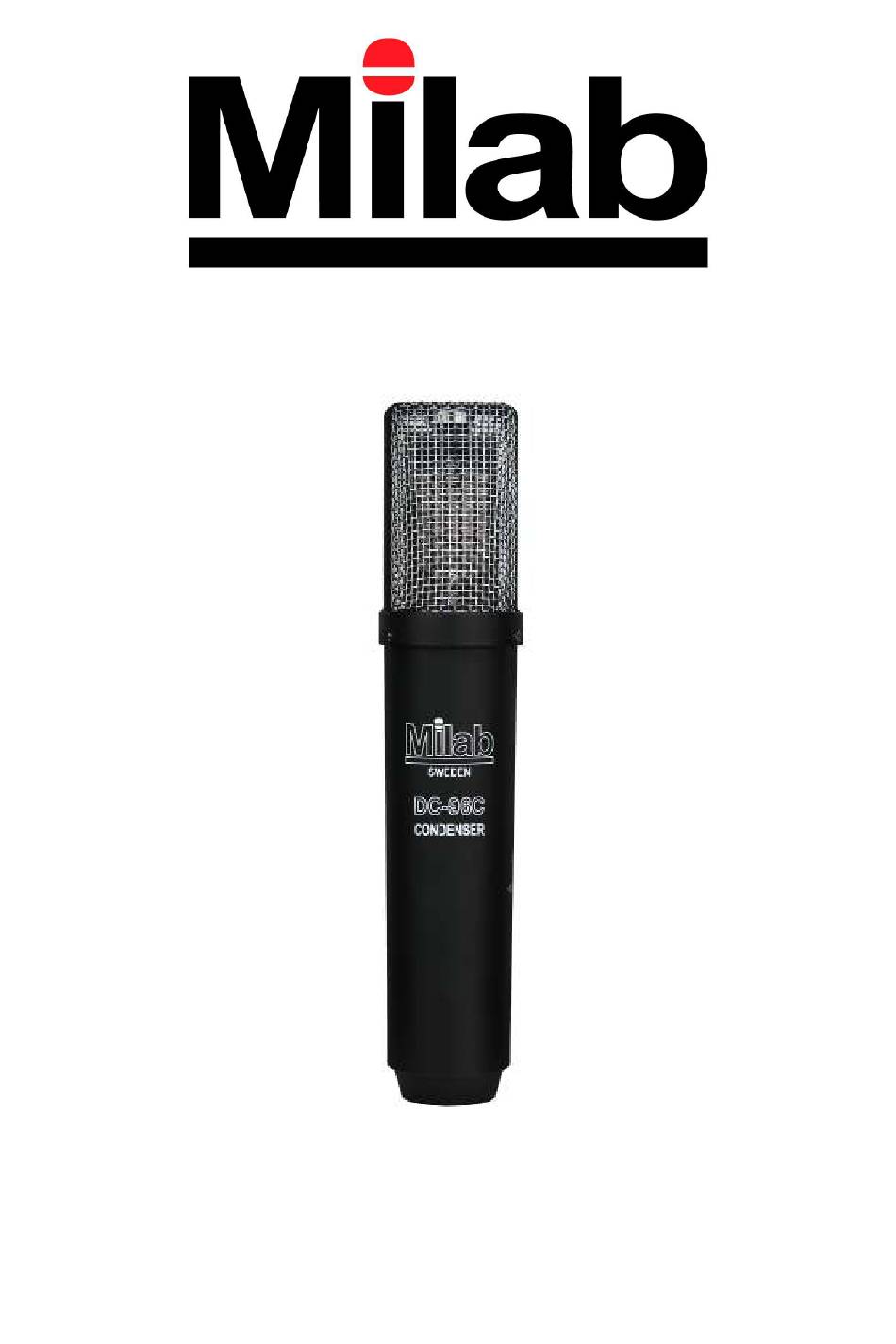

- Page 1 Milab DC-96C Quick Guide Manual...
- Page 2 Quick guide manual The Milab DC-96C Condenser Microphone The DC-96C is the newest addition to the classic Milab DC family. It is a side-addressed, large membrane microphone built around the Milab 2900 rectangular capsule and has been designed mainly for studio work, but is also an excellent choice for many live/stage applications.
- Page 3 Connection The DC-96C can be connected to any mic input, mixer/amplifi er, or mic preamp using a standard microphone cable (XLR). The microphone is designed for phantom powering at 48 V (P48, IEC 1938) with positive voltage on the audio lines versus the cable shield.
- Page 4 132 dB SPL, set the switch to the -12 dB position. The system may need a few minutes (2-5) to stabilize. • The DC-96C should be placed in a stand holder (enclosed) or in a shock- mount. It is not intended to be used as a handheld device.
- Page 5 Under no circumstances and under no legal theory, tort, contract, or otherwise, shall Milab Microphones be held liable to you or any other person for any indirect, special, incidental, or consequential damages of any kind, including, without limitation, damages for loss of goodwill, work stoppage, computer or equipment failure or malfunction, or any and all other commercial damages or losses.
- Page 6 Specifi cations Product name: Milab DC-96C Type: Condenser Article number: 1138 Frequency response: 20 to 20,000 Hz Polar pattern: Cardioid Pre-attenuation pad: -12 dB (switchable) Max SPL 132 dB (1 % THD at 1 kHz) Max SPL with pad: 144 dB Sensitivity at 1 kHz: 21.5 mV/Pa (±...
