Summary of Contents for Milab VM-44 Classic

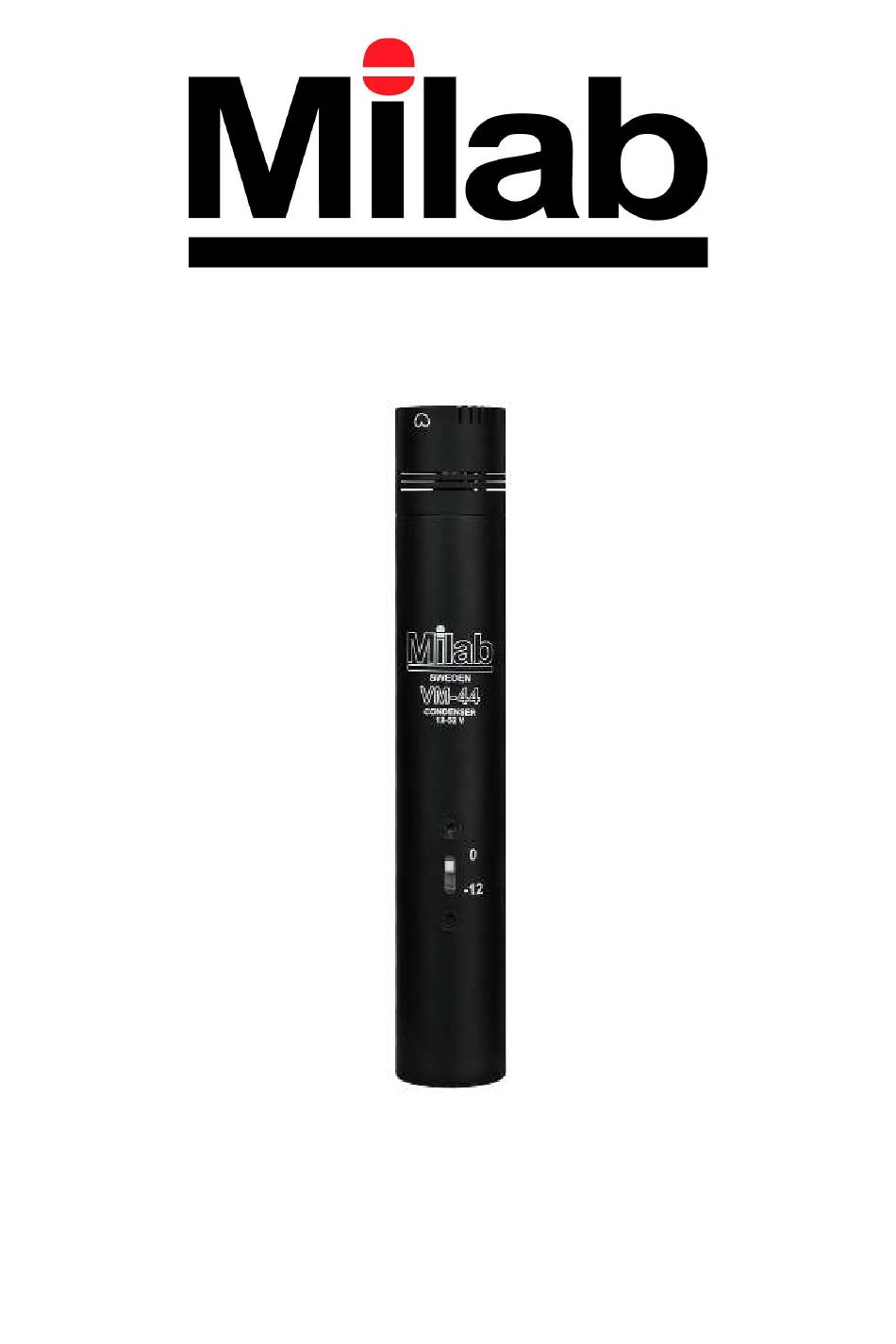

- Page 1 Milab VM-44 Classic Quick Guide Manual...
- Page 2 Thank You for Choosing a Milab Microphone! With a history that goes back to the 1930s, Milab is one of the oldest, continuously operating microphone manufacturers in the world. Every one of our microphones is handcrafted in our plant in southern Sweden.
- Page 3 Connection The VM-44 can be connected to any mic input, mixer/amplifi er, or mic preamp using a standard microphone cable (XLR). The microphone is designed for phantom powering at 12-52 V (P12, P24, P48, IEC 1938) with positive voltage on the audio lines versus the cable shield. Microphone XLR pinout: 1: Ground (shield) 2: Hot (+ phase)
- Page 4 Guidelines for Use • The VM-44 should be aimed with the top grill towards the sound source. See polar diagram. • All VM-44 microphones have interchangeable capsules. The cardioid capsule (std) can be exchanged to an omni or supercardioid capsule (optional). Simply unscrew the mounted capsule and fi...
- Page 5 Under no circumstances and under no legal theory, tort, contract, or otherwise, shall Milab Microphones be held liable to you or any other person for any indirect, special, incidental, or consequential damages of any kind, including, without limitation, damages for loss of goodwill, work stoppage, computer or equipment failure or malfunction, or any and all other commercial damages or losses.
- Page 6 Specifi cations Product name: Milab VM-44 Classic Type: Condenser Article number: 1118 Frequency response: 20 to 20,000 Hz Polar pattern: Cardioid* Pre-attenuation pad: -12 dB (switchable) Max SPL 128 dB* (1 % THD at 1 kHz) Max SPL with pad:...
