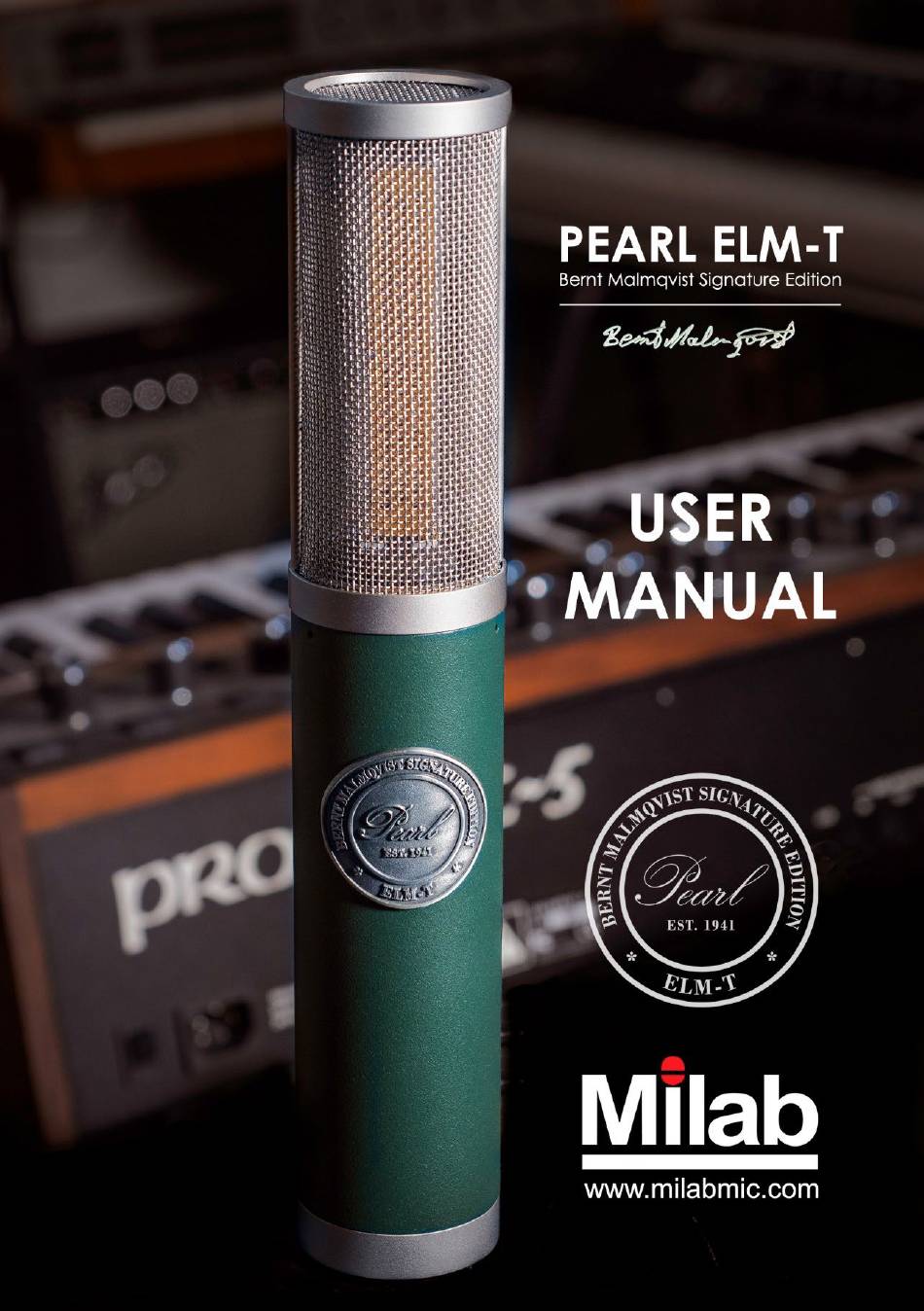

Summary of Contents for Milab PEARL ELM-T
-
Page 2: Table Of Contents
1. Table of contents .................. 2 2. Introduction ..................3 3. Package includes ................... 3 4. Pearl ELM-T Microphone ............... 4 5. AGES NG Power Supply Unit (PSU) ............5 6. Connecting and operating instructions ........... 6 7. Cleaning and storing ................7 8. -
Page 3: Introduction
We believe in our products, which is why every microphone is delivered with its own individual frequency chart and our industry-leading lifetime warranty. Since 2017, Pearl Microphones is a trademark of Milab Microphones AB. Congratulations on your purchase and welcome to the Pearl & Milab family! Thomas Nöjdh, President Milab Microphones AB 3. -
Page 4: Pearl Elm-T Microphone
4. Pearl ELM-T Microphone The Pearl ELM-T Bernt Malmqvist Signature Edition is a high-end vacuum-tube microphone, built entirely by hand in Sweden. The heart of the microphone is the Pearl ELM rectangular condenser capsule with a height-to- width ratio of 7:1. The ELM-T has been meticulously designed by Mr. Bernt Malmqvist who has been a part of Pearl Microphones since 1954. -
Page 5: Ages Ng Power Supply Unit (Psu)
8: 3-pin XLR (to preamp) AC 115 V SI 200 mA MT 3: Control lamp 4: Voltage selector (115/230 V) 5: Power inlet 3-pin XLR pinout 1: Ground (shield) 2: Hot (+ phase) 3: Cold (- phase) Pearl ELM-T – User Manual... -
Page 6: Connecting And Operating Instructions
30-60 seconds after power has been switched on. Please note that the vacuum-tube circuitry needs time to warm up. Therefore, it is highly recommended to leave the power on for at least 10 minutes before using the microphone. Pearl ELM-T – User Manual... -
Page 7: Cleaning And Storing
� IMPORTANT! A tube microphone is a delicate instrument which must � � be handled with care. The Pearl ELM-T system should only be used indoors and not be exposed to humidity or temperatures above normal conditions. 7. Cleaning and storing Disconnect the power cable from the power supply unit before cleaning. -
Page 8: Troubleshooting
8. Troubleshooting This guide can help you troubleshoot some issues you may encounter. If the problem persists, please contact your local dealer/distributor or Milab Microphones directly. No sound Possible cause Possible solution No power to PSU and/or mic Ensure that all cables are properly connected. -
Page 9: Lifetime Warranty And Service
Please note that all technical service should be carried out by Milab Microphones or by a party that has been approved by Milab. Opening/disassembling the microphone or power supply unit, or making any modifications to the equipment that cannot be considered “normal use”... -
Page 10: Specifications
Microphone net weight: 640 g PSU length: 220 mm PSU width: 100 mm PSU height: 110 mm PSU net weight: 1 800 g Microphone cable length: 10 m Frequency chart: Coming soon Polar diagram (cardioid): Coming soon Pearl ELM-T – User Manual... -
Page 11: Declaration Of Conformity (Ce)
Under no circumstances and under no legal theory, tort, contract, or otherwise, shall Milab Microphones be held liable to you or any other person for any indirect, special, incidental, or consequential damages of any kind, including, without... -
Page 12: Contact Information
Mailing address: Milab Microphones AB Norra Strandgatan 4 S-252 20 Helsingborg SWEDEN Delivery address: Milab Microphones AB Vallbogatan 8 S-265 31 Åstorp SWEDEN Phone: +46 (0)42 381620 Fax: +46 (0)42 136350 E-mail: pearl@milabmic.com Website: www.milabmic.com Pearl ELM-T – User Manual...
