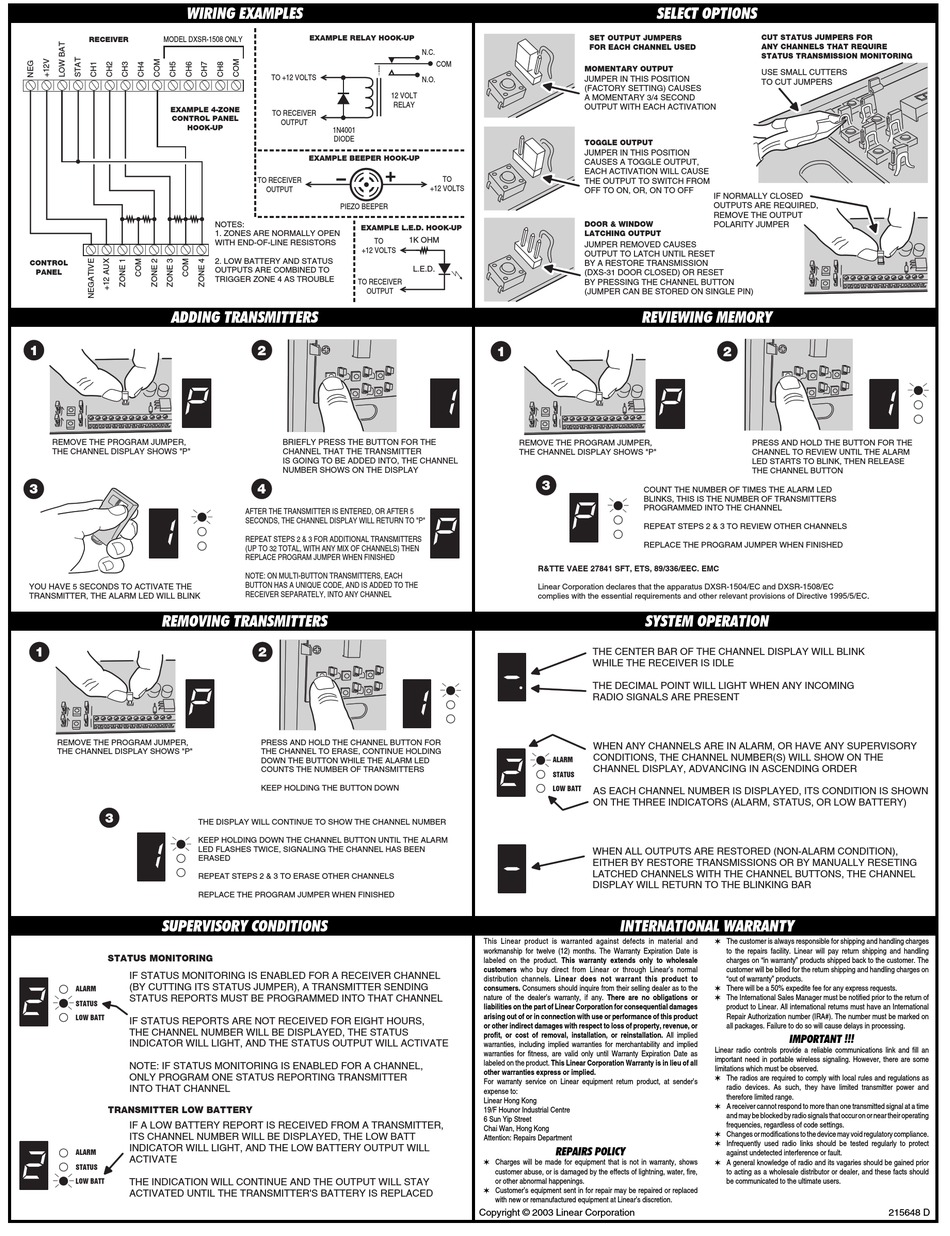

WIRING EXAMPLES

MODEL DXSR-1508 ONLY
RECEIVER
EXAMPLE 4-ZONE
CONTROL PANEL
HOOK-UP
CONTROL
PANEL
ADDING TRANSMITTERS
1
REMOVE THE PROGRAM JUMPER,
THE CHANNEL DISPLAY SHOWS "P"
3
YOU HAVE 5 SECONDS TO ACTIVATE THE
TRANSMITTER, THE ALARM LED WILL BLINK
REMOVING TRANSMITTERS
1
REMOVE THE PROGRAM JUMPER,
THE CHANNEL DISPLAY SHOWS "P"
3
THE DISPLAY WILL CONTINUE TO SHOW THE CHANNEL NUMBER
KEEP HOLDING DOWN THE CHANNEL BUTTON UNTIL THE ALARM
LED FLASHES TWICE, SIGNALING THE CHANNEL HAS BEEN
ERASED
REPEAT STEPS 2 & 3 TO ERASE OTHER CHANNELS
REPLACE THE PROGRAM JUMPER WHEN FINISHED
SUPERVISORY CONDITIONS
STATUS MONITORING
IF STATUS MONITORING IS ENABLED FOR A RECEIVER CHANNEL
(BY CUTTING ITS STATUS JUMPER), A TRANSMITTER SENDING
ALARM
STATUS REPORTS MUST BE PROGRAMMED INTO THAT CHANNEL
STATUS
LOW BATT
IF STATUS REPORTS ARE NOT RECEIVED FOR EIGHT HOURS,
THE CHANNEL NUMBER WILL BE DISPLAYED, THE STATUS
INDICATOR WILL LIGHT, AND THE STATUS OUTPUT WILL ACTIVATE
NOTE: IF STATUS MONITORING IS ENABLED FOR A CHANNEL,
ONLY PROGRAM ONE STATUS REPORTING TRANSMITTER
INTO THAT CHANNEL
TRANSMITTER LOW BATTERY
IF A LOW BATTERY REPORT IS RECEIVED FROM A TRANSMITTER,
ITS CHANNEL NUMBER WILL BE DISPLAYED, THE LOW BATT
INDICATOR WILL LIGHT, AND THE LOW BATTERY OUTPUT WILL
ALARM
ACTIVATE
STATUS
LOW BATT THE INDICATION WILL CONTINUE AND THE OUTPUT WILL STAY
ACTIVATED UNTIL THE TRANSMITTER'S BATTERY IS REPLACED
EXAMPLE RELAY HOOK-UP
TO +12 VOLTS
12 VOLT
TO RECEIVER
OUTPUT
1N4001
DIODE
EXAMPLE BEEPER HOOK-UP
TO RECEIVER
OUTPUT
PIEZO BEEPER
NOTES:
EXAMPLE L.E.D. HOOK-UP
1. ZONES ARE NORMALLY OPEN
TO
WITH END-OF-LINE RESISTORS
+12 VOLTS
2. LOW BATTERY AND STATUS
OUTPUTS ARE COMBINED TO
TRIGGER ZONE 4 AS TROUBLE
TO RECEIVER
OUTPUT
2
BRIEFLY PRESS THE BUTTON FOR THE
CHANNEL THAT THE TRANSMITTER
IS GOING TO BE ADDED INTO, THE CHANNEL
NUMBER SHOWS ON THE DISPLAY
4
AFTER THE TRANSMITTER IS ENTERED, OR AFTER 5
SECONDS, THE CHANNEL DISPLAY WILL RETURN TO "P"
REPEAT STEPS 2 & 3 FOR ADDITIONAL TRANSMITTERS
(UP TO 32 TOTAL, WITH ANY MIX OF CHANNELS) THEN
REPLACE PROGRAM JUMPER WHEN FINISHED
NOTE: ON MULTI-BUTTON TRANSMITTERS, EACH
BUTTON HAS A UNIQUE CODE, AND IS ADDED TO THE
RECEIVER SEPARATELY, INTO ANY CHANNEL
2
PRESS AND HOLD THE CHANNEL BUTTON FOR
THE CHANNEL TO ERASE, CONTINUE HOLDING
DOWN THE BUTTON WHILE THE ALARM LED
COUNTS THE NUMBER OF TRANSMITTERS
KEEP HOLDING THE BUTTON DOWN
N.C.
COM
N.O.
RELAY
TO
+12 VOLTS
1K OHM
L.E.D.
1
REMOVE THE PROGRAM JUMPER,
THE CHANNEL DISPLAY SHOWS "P"
3
R&TTE VAEE 27841 SFT, ETS, 89/336/EEC. EMC
Linear Corporation declares that the apparatus DXSR-1504/EC and DXSR-1508/EC
complies with the essential requirements and other relevant provisions of Directive 1995/5/EC.
ALARM
STATUS
LOW BATT
This Linear product is warranted against defects in material and
workmanship for twelve (12) months. The Warranty Expiration Date is
labeled on the product. This warranty extends only to wholesale
customers who buy direct from Linear or through Linear's normal
distribution channels. Linear does not warrant this product to
consumers. Consumers should inquire from their selling dealer as to the
nature of the dealer's warranty, if any. There are no obligations or
liabilities on the part of Linear Corporation for consequential damages
arising out of or in connection with use or performance of this product
or other indirect damages with respect to loss of property, revenue, or
profit, or cost of removal, installation, or reinstallation. All implied
warranties, including implied warranties for merchantability and implied
warranties for fitness, are valid only until Warranty Expiration Date as
labeled on the product. This Linear Corporation Warranty is in lieu of all
other warranties express or implied.
For warranty service on Linear equipment return product, at sender's
expense to:
Linear Hong Kong
19/F Hounor Industrial Centre
6 Sun Yip Street
Chai Wan, Hong Kong
Attention: Repairs Department
REPAIRS POLICY
1 Charges will be made for equipment that is not in warranty, shows
customer abuse, or is damaged by the effects of lightning, water, fire,
or other abnormal happenings.
1 Customer's equipment sent in for repair may be repaired or replaced
with new or remanufactured equipment at Linear's discretion.
Copyright © 2003 Linear Corporation
SELECT OPTIONS
SET OUTPUT JUMPERS CUT STATUS JUMPERS FOR
FOR EACH CHANNEL USED ANY CHANNELS THAT REQUIRE
STATUS TRANSMISSION MONITORING
MOMENTARY OUTPUT
USE SMALL CUTTERS
JUMPER IN THIS POSITION
TO CUT JUMPERS
(FACTORY SETTING) CAUSES
A MOMENTARY 3/4 SECOND
OUTPUT WITH EACH ACTIVATION
TOGGLE OUTPUT
JUMPER IN THIS POSITION
CAUSES A TOGGLE OUTPUT,
EACH ACTIVATION WILL CAUSE
THE OUTPUT TO SWITCH FROM
OFF TO ON, OR, ON TO OFF
IF NORMALLY CLOSED
OUTPUTS ARE REQUIRED,
REMOVE THE OUTPUT
DOOR & WINDOW POLARITY JUMPER
LATCHING OUTPUT
JUMPER REMOVED CAUSES
OUTPUT TO LATCH UNTIL RESET
BY A RESTORE TRANSMISSION
(DXS-31 DOOR CLOSED) OR RESET
BY PRESSING THE CHANNEL BUTTON
(JUMPER CAN BE STORED ON SINGLE PIN)

REVIEWING MEMORY

2
PRESS AND HOLD THE BUTTON FOR THE
CHANNEL TO REVIEW UNTIL THE ALARM
LED STARTS TO BLINK, THEN RELEASE
THE CHANNEL BUTTON
COUNT THE NUMBER OF TIMES THE ALARM LED
BLINKS, THIS IS THE NUMBER OF TRANSMITTERS
PROGRAMMED INTO THE CHANNEL
REPEAT STEPS 2 & 3 TO REVIEW OTHER CHANNELS
REPLACE THE PROGRAM JUMPER WHEN FINISHED
SYSTEM OPERATION
THE CENTER BAR OF THE CHANNEL DISPLAY WILL BLINK
WHILE THE RECEIVER IS IDLE
THE DECIMAL POINT WILL LIGHT WHEN ANY INCOMING
RADIO SIGNALS ARE PRESENT
WHEN ANY CHANNELS ARE IN ALARM, OR HAVE ANY SUPERVISORY
CONDITIONS, THE CHANNEL NUMBER(S) WILL SHOW ON THE
CHANNEL DISPLAY, ADVANCING IN ASCENDING ORDER
AS EACH CHANNEL NUMBER IS DISPLAYED, ITS CONDITION IS SHOWN
ON THE THREE INDICATORS (ALARM, STATUS, OR LOW BATTERY)
WHEN ALL OUTPUTS ARE RESTORED (NON-ALARM CONDITION),
EITHER BY RESTORE TRANSMISSIONS OR BY MANUALLY RESETING
LATCHED CHANNELS WITH THE CHANNEL BUTTONS, THE CHANNEL
DISPLAY WILL RETURN TO THE BLINKING BAR
INTERNATIONAL WARRANTY
1 The customer is always responsible for shipping and handling charges
to the repairs facility. Linear will pay return shipping and handling
charges on "in warranty" products shipped back to the customer. The
customer will be billed for the return shipping and handling charges on
"out of warranty" products.
1 There will be a 50% expedite fee for any express requests.
1 The International Sales Manager must be notified prior to the return of
product to Linear. All international returns must have an International
Repair Authorization number (IRA#). The number must be marked on
all packages. Failure to do so will cause delays in processing.
Linear radio controls provide a reliable communications link and fill an
important need in portable wireless signaling. However, there are some
limitations which must be observed.
1 The radios are required to comply with local rules and regulations as
radio devices. As such, they have limited transmitter power and
therefore limited range.
1 A receiver cannot respond to more than one transmitted signal at a time
and may be blocked by radio signals that occur on or near their operating
frequencies, regardless of code settings.
1 Changes or modifications to the device may void regulatory compliance.
1 Infrequently used radio links should be tested regularly to protect
against undetected interference or fault.
1 A general knowledge of radio and its vagaries should be gained prior
to acting as a wholesale distributor or dealer, and these facts should
be communicated to the ultimate users.
IMPORTANT !!!
