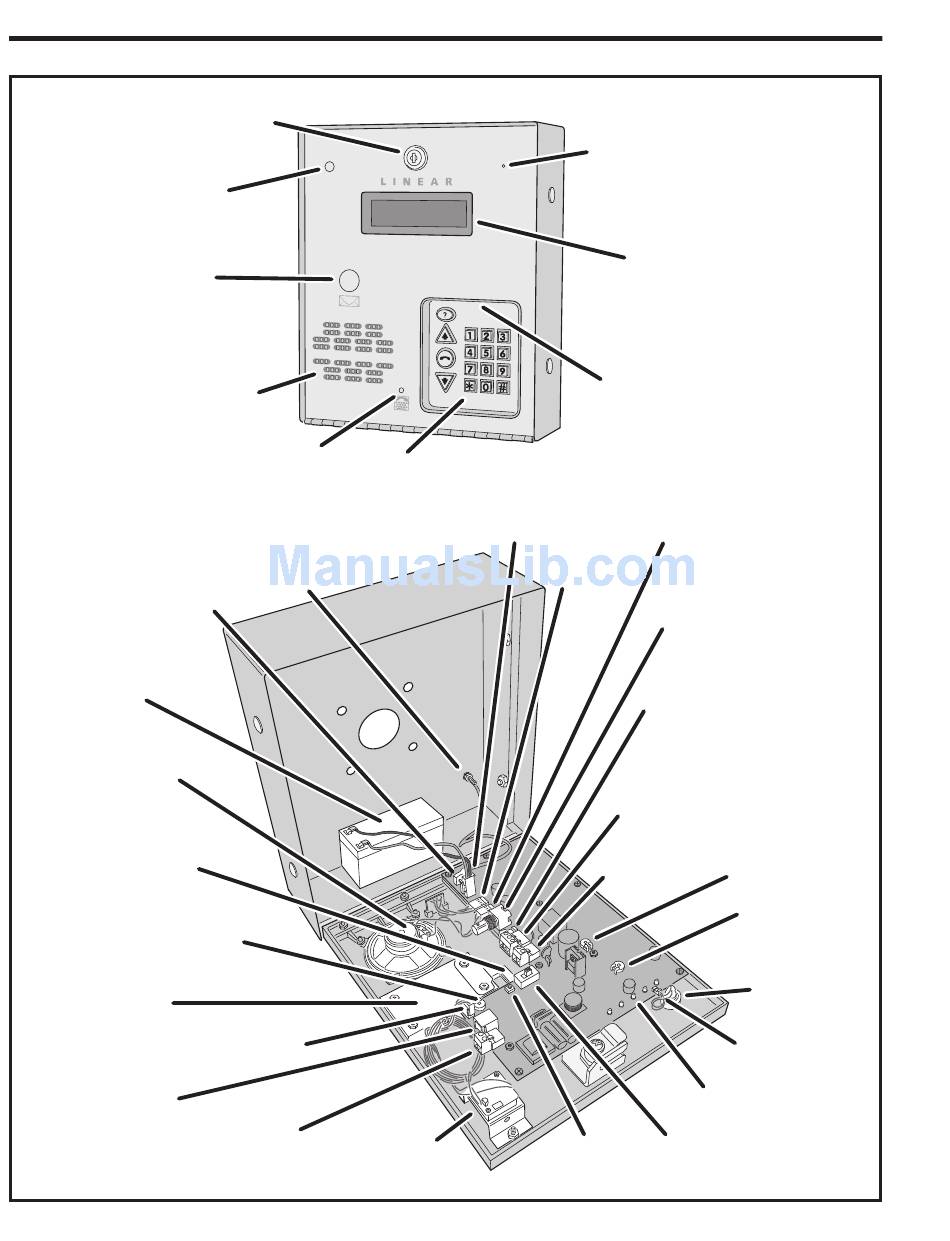

Component Locations

CAMERA
(OPTIONAL)
POSTAL
LOCK
(OPTIONAL)
SPEAKER
INSTALLATION NOTE:
FOR EASY WIRING, THE UNIT'S
GREEN TERMINAL BLOCKS
CAN BE UN-PLUGGED
FROM THE CIRCUIT BOARD
EARTH
GROUND
CONNECTOR
BACKUP
BATTERY
(OPTIONAL)
SPEAKER
POSTAL LOCK
MICROSWITCH
DISPLAY
CONTRAST
ADJUSTMENT
POSTAL LOCK
(OPTIONAL)
TELEPHONE
JACK
4
CABINET
LOCK
TTY
KEYPAD
JACK
EARTH
GROUND
STUD
CAMERA
CONNECTOR
TELEPHONE
CCM-1 CAMERA
TERMINALS
(OPTIONAL)
MICROPHONE
DISPLAY
KEYPAD
LIGHTING
BATTERY
SPEAKER
CONNECTOR
CONNECTOR
TTY
CONNECTOR
ACCESS
RELAY
TERMINALS
POWER
TERMINALS
RESET
BUTTON
LCD
VIDEO OUT
CONNECTOR
POSTAL SWITCH
CONNECTOR
DIGITAL SPEECH
VOLUME
ADJUSTMENT
SPEAKERPHONE
VOLUME
ADJUSTMENT
MICROPHONE
MICROPHONE
CONNECTOR
DIAGNOSTIC
INDICATORS
MAIN POWER
SWITCH
