CONNECTING AND OPERATING THE 1x3 COMPONENT / AUDIO DA
How to Connect the 1x3 Component / Audio DA to your devices
Connect the supplied Component cable from the source into the 1x3
1.
Component / Audio DA's input port.
Connect either a SPDIF digital audio or RCA analog right and left audio cable
2.
into the 1x3 Component / Audio DA's audio input port.
Connect the Component and audio cables from your display(s) (up to 3) into the
3.
Component and audio out slots on the 1x3 Component / Audio DA.
4. Plug the 5V DC power supply into the 1x3 Component / Audio DA.
5. Plug the 5V DC wall mount power supply into the wall outlet.
NOTE: Both analog and digital audio outputs are active on all of the outputs.
Also, Composite video can also be fed into the Component video input to split and
distribute Composite video.
Multiple COMP-DA-1X3 devices can be daisy chained together to distribute a single
Component signal to 13 units maximum, for a total of 27 displays.
Maximum recommended distance of component cabling between each COMP-DA-
1X3 or display (1080p) is 50 ft. Maximum number of displays that are supported in a
large 1x3 Component / Audio DA system is 27.

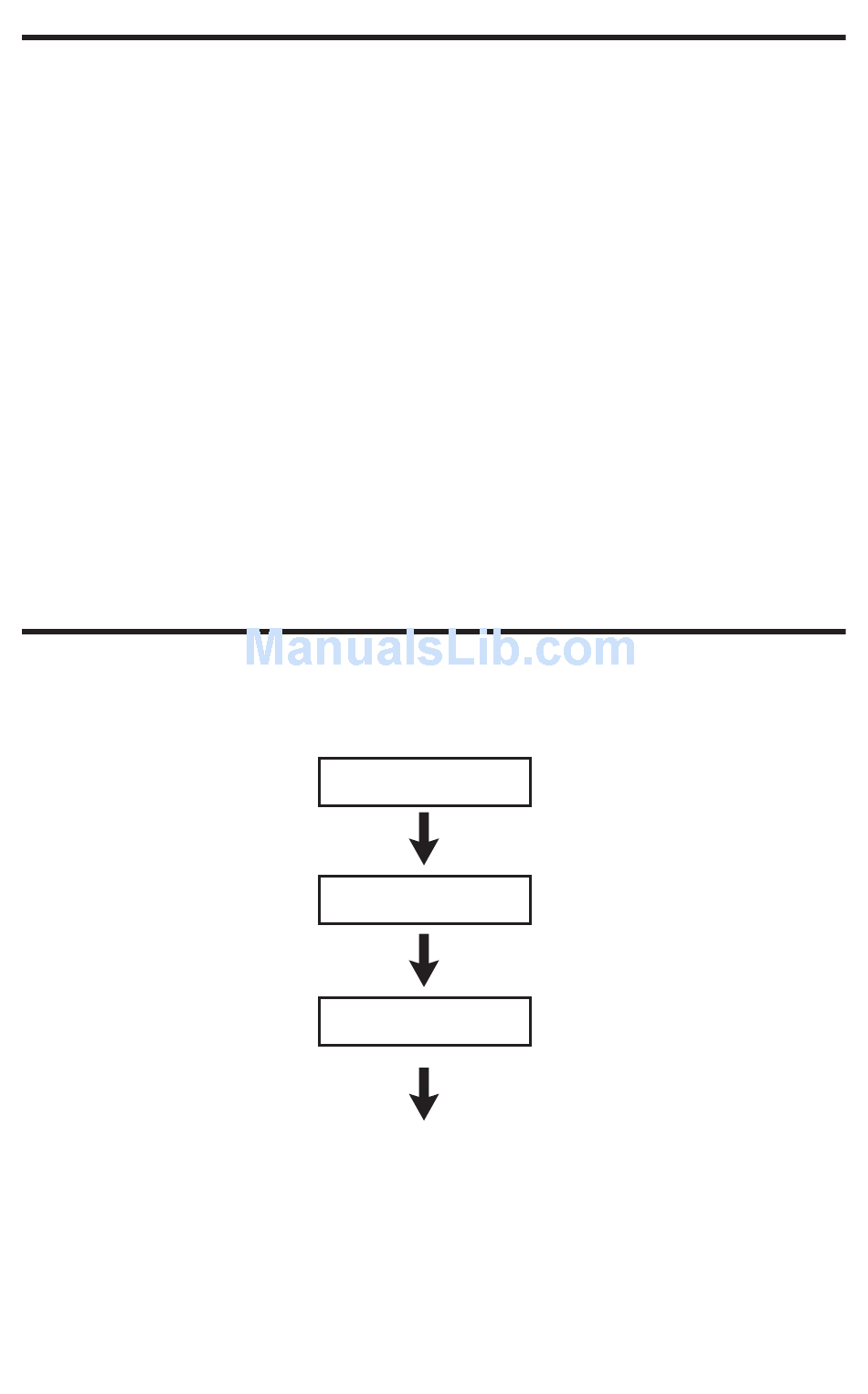

Application Diagram
COMP-DA-1X3
COMP-DA-1X3
COMP-DA-1X3
Maximum 27 Displays
X3
X9
